Connecting/ using a satellite tuner – JVC HR-A637E User Manual

Page 5

The AV2 IN (/DECODER) or AV1 IN/OUT connector can be
used as an input terminal for a satellite tuner. Simply connect a
satellite tuner and you can enjoy the wide variety of satellite
programming.

Connecting/

Using A

Satellite Tuner

CONNECT SATELLITE

TUNER

Connect an optional 21-pin SCART cable between the
satellite tuner’s Euroconnector and your recorder’s AV2
IN (/DECODER) connector.

SELECT INPUT MODE

(A637EH only)

Set the AV2 SELECT switch to “AV2”.

PREPARE TO WATCH A

SATELLITE PROGRAMME

Select the appropriate channel on the satellite tuner.
Then set the auxiliary mode by pressing NUMBER key
“0” or TV PROG. on the remote control until “AU2”
appears on the recorder’s front display panel.

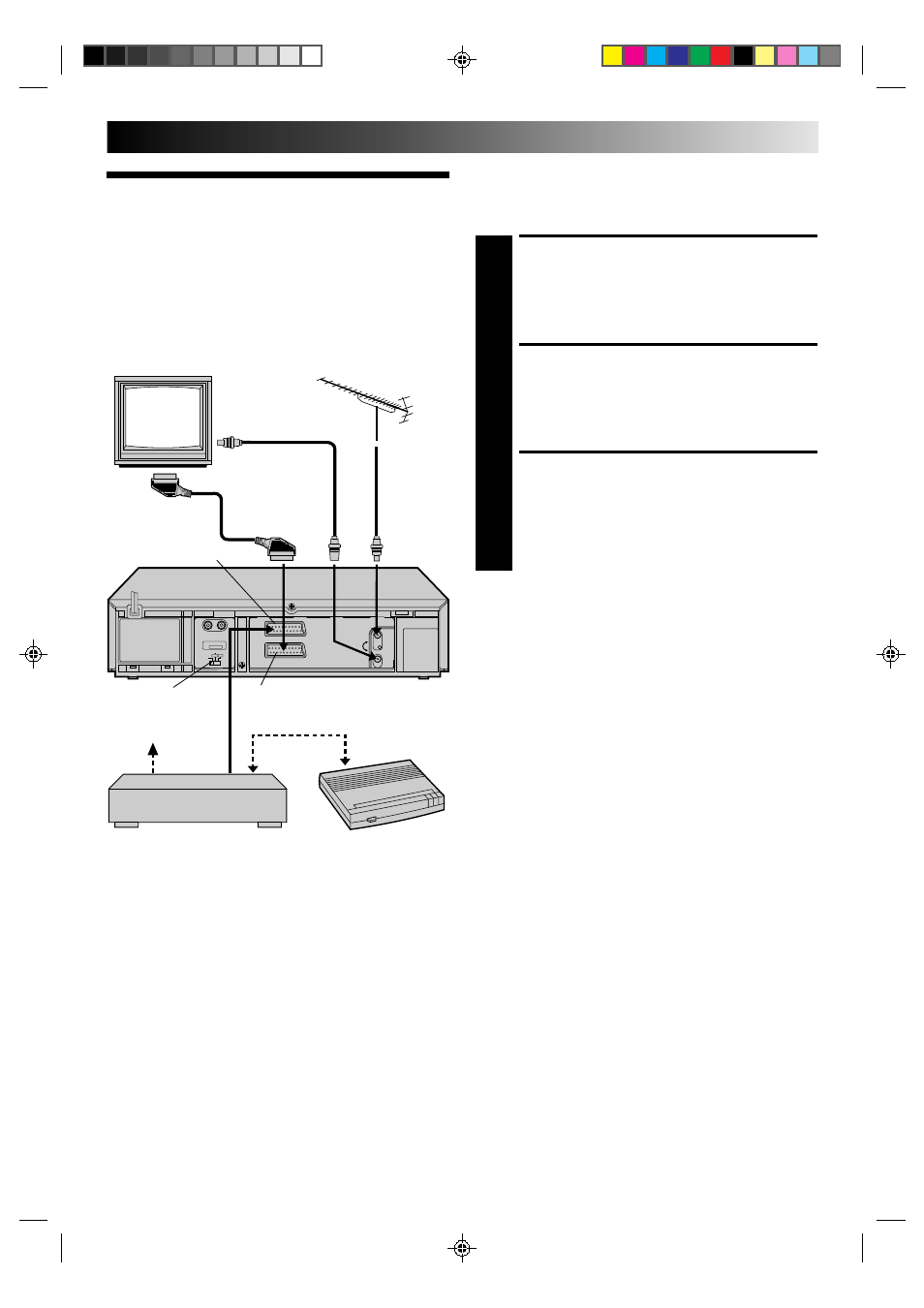

TV Receiver

RF Cable
(provided)

TV Aerial
Cable

Decoder

Satellite antenna

Satellite tuner

AV2 SELECT switch

AV2 IN (/DECODER)

NOTE:

When connecting a satellite tuner together with a decoder . . .

. . . first connect the decoder to the decoder input of the

satellite tuner, then connect the satellite tuner’s output to
the recorder’s AV2 IN (/DECODER) connector.
Refer to the instruction book for the satellite tuner and
decoder.

AV1 IN/OUT

Rear View

This manual is related to the following products:

HR-A637EH
