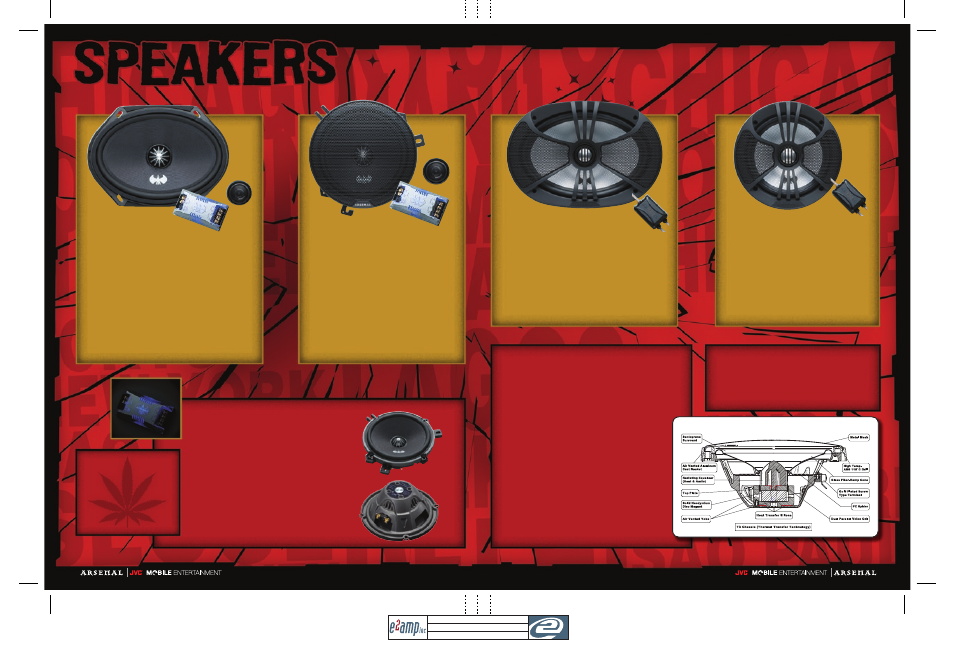

I

240W Max. Music Power/80W RMS

I

Glass Fiber Laminated Hemp Cone

I

1” Titanium Hard Dome Tweeter

I

Solid Neodymium Disc Magnet (Woofer)

I

Neodymium Magnet (Tweeter)

I

T3 Chassis (Thermal Transfer Technology)

I

Radiating Equalizer

I

Santoprene Surround

I

Air Vented Aluminum Cast Basket

I

Illuminated Crossover Network (0dB/-3dB/-6dB)

I

5”x7”/ 6”x8” Universal Mounting Adapter

I

Heat Transfer Silicon

I

240W Max. Music Power/80W RMS (CS-ARS650)

210W Max. Music Power/70W RMS (CS-ARS500)

I

Glass Fiber Laminated Hemp Cone

I

1” Titanium Hard Dome Tweeter

I

Solid Neodymium Disc Magnet (Woofer)

I

Neodymium Magnet (Tweeter)

I

T3 Chassis (Thermal Transfer Technology)

I

Radiating Equalizer

I

Santoprene Surround

I

Air Vented Aluminum Cast Basket

I

Illuminated Crossover Network (0dB/-3dB/-6dB)

I

Universal Mounting Adapter (CS-ARS650)

I

Heat Transfer Silicon

CS-AW8240

5”x7” / 6”x8” 2-Way Component Speakers

Slim deSign allows for installation in

wider range of cars

Enabled by application of neodymium magnets and aluminum frames

6.5” models include adapter to expand the range of cars where they
may be installed

Angle-adjustable tweeter expands installation possibilities

New ARS Series

for Arsenal

Light weight. High performance.

•

Provides natural mid and high

frequency sound

•

Creates a smooth transition

between woofer and tweeter

crossover frequencies

•

Strong and light - allows for

more power capability and

stunning sound quality

HEMP FIBER

Illuminated Network

T3 Chassis (Thermal Transfer Technology)

Transfers heat away from the voice coil to the speaker’s aluminum basket by
connecting the neodymium magnet structure to the basket using a layer of heat
transfer silicon. The aluminum basket acts like a radiator for the T3 process
providing the best protection against an overheated voice coil, especially under
high current loads.

Radiating Equalizer

The center piece on an Arsenal component driver is connected to the speaker’s
T3 structure, and efficiently dissipates heat from inside of the motor structure. Its
unique shape design also blends and focuses high-frequency sound waves toward
the listener’s ears.

Solid Neodymium Disc Magnet

Unlike conventional magnets which radiate magnetic force in all directions, the
Solid Disc Magnet focuses more magnetic power upwards toward the speaker’s
voice coil – creating more power handling and SPL.

Sophisticated Design –

Powerful & High-grade

ARS Series Components

Advanced Arsenal Coaxial Features

CS-AR690, CS-AR680, CS-AR650, CS-AR500
• Tweeter voice coil within the woofer delivers point source radiation
• New box-in-line design for crossover networks.
• Point Source Radiation provides a smooth combination of woofer and tweeter

frequencies because both ranges of sound are projected from the same location.
• In-line crossover wiring design provides easier and more flexible installation possibilities.

CS-ARS650

6.5” 2-Way Component Speakers

CS-ARS500

5

1/4

” 2-Way Component Speakers

I

180W Max. Music Power/60W RMS (CS-AR650)

150W Max. Music Power/50W RMS (CS-AR500)

I

Point Source Configuration

I

Glass Fiber-PMI Cone

I

1” Titanium Hard Dome Tweeter

I

Strontium Magnet (Woofer)

I

Neodymium Magnet (Tweeter)

I

Butyl Rubber Surround

I

In-Line Crossover Network (0dB/-3dB)

I

240W Max. Music Power/80W RMS (CS-AR690)

180W Max. Music Power/60W RMS (CS-AR680)

I

Point Source Configuration

I

Glass Fiber-PMI Cone

I

1” Titanium Hard Dome Tweeter

I

Strontium Magnet (Woofer)

I

Neodymium Magnet (Tweeter)

I

Butyl Rubber Surround

I

In-Line Crossover Network (0dB/-3dB)

CS-AR690

6”x9” 2-Way Speakers

CS-AR680

5”x7” / 6”x8” 2-Way Speakers

CS-AR650

6.5” 2-Way Speakers

CS-AR500

5

1/4

” 2-Way Speakers

12

13

JVC MOBILE

12/26/07 sb

2779.JVC_ARSENAL 2008 US

R3M

BROCHURE Pg 12-13
