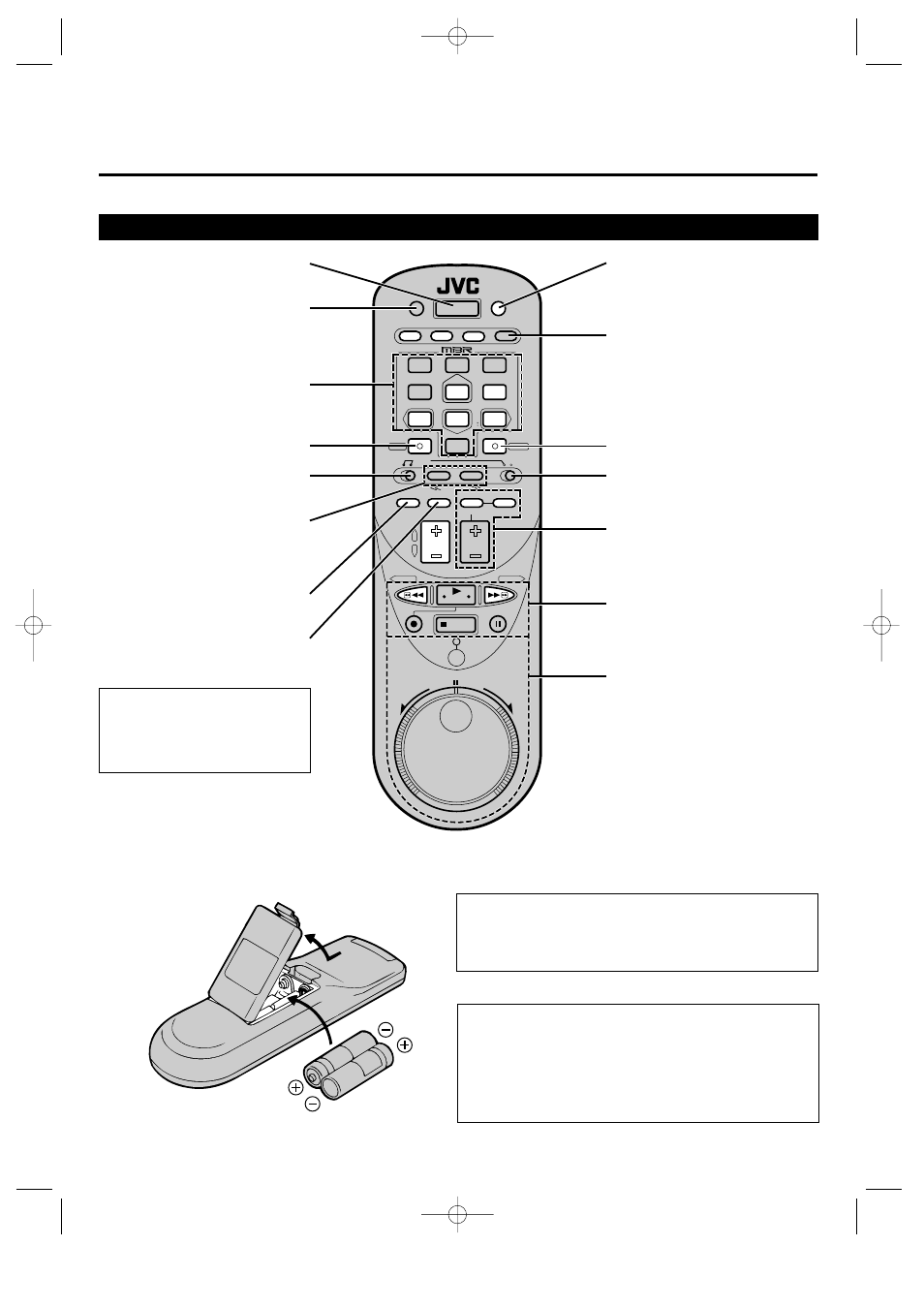

Wireless Remote Control
TV/Video Mode Switching
ENTER/OSD
Tape Speed
Tuner and Counter Control
*TV/CABLE control
select switch
Timer
੬
p. 27, 29
Display
੬
p. 6, 21 Power
Multi-Purpose Digit Keys
On-Screen Menu
੬
p. 7
Multi-Speed Slow Motion,
High-Speed Search,
Index Search
੬
p. 18, 20
Basic Functions
੬
p. 17, 23
Installing Batteries
1 Slide the battery compartment cover in the direction of the arrow.
2 Insert 2 "AA"-size batteries (provided) in the correct directions.
3 Replace the cover.
This remote control can operate most of your VCR's functions.
1 Point the remote control toward the VCR's sensor window.
2 Press the appropriate operation button.
Ⅲ The maximum operating distance of the remote control is
about 8 m (26 ft).
This remote control can also operate various brands of TVs and
Cable Boxes. For instructions,
੬ p. 31.
How To Use
TV/VIDEO DISPLAY
INFO TIMER
WEEKLY
POWER
DAILY(M–F)
AUX OSD
CABLE TV VCR
SEARCH
F1 F2 F3 F4
VOL. CH/SET
PLAY
STOP
JOG/SHUTTLE
REV FWD
1 2 3
4 5 6
7 8 9
0
SP/EP C.MEMORY
ADD
INDEXPlus+ TITLE
C.RESET/SKIP
A
B
C
J
K
L
S
T
U V
W
X
Y
Z
D
E
F G
H
I
P
Q
R M
N
O
SELECT MENU
CANCEL ENTER
PAGE
CLEAR
CURSOR CURSOR
PRINT
Tuner and Counter Control
Jog/Shuttle Control
੬
p. 19
*VCR control select switch
* Since POWER, TV/VIDEO, Digit keys and CH +/-
buttons are also available to operate your TV and/or
cable box, set these VCR/TV/CABLE control select
switches as required depending on the unit you want
to operate.
To operate VCR: Simply set the VCR switch toVCR.
To operate TV:
Set the VCR switch to the left and
set the TV/CABLE switch toTV.
To operate Cable Box: Set the VCR switch to the left
and set the TV/CABLE switch
to CABLE.
Buttons labeled or highlighted in green,
and the remote control unit's Jog/Shuttle
control, are also used for INDEX Plus+
operation. Refer to the INDEX Plus+
instruction manual.
