Getting To Know Your VCR
4
REW FF
JOG
SHUTTLE
POWER MENU CH/ SET
A.DUB
MARK
R.A.EDIT
PAUSE
REC
STOP/EJECT PLAY
ERASE SP/EP
START
SELECT
+
–
INDEX
H M S
I T R TIMER
VIDEO
M
SP
EP
R E C
SAP
PAUSE
ST
AM
PM
PLAY
L dB –20 15 10 8 4 6 2 0 2 4 6 +8
R dB –20 15 10 8 4 6 2 0 2 4 6 +8
00 00
00 00
00 00 00
00 00 00 0
00
00 00 00
00 00
00 00 00
00 0
INSERT
VIDEO (MONO) L–AUDIO–R

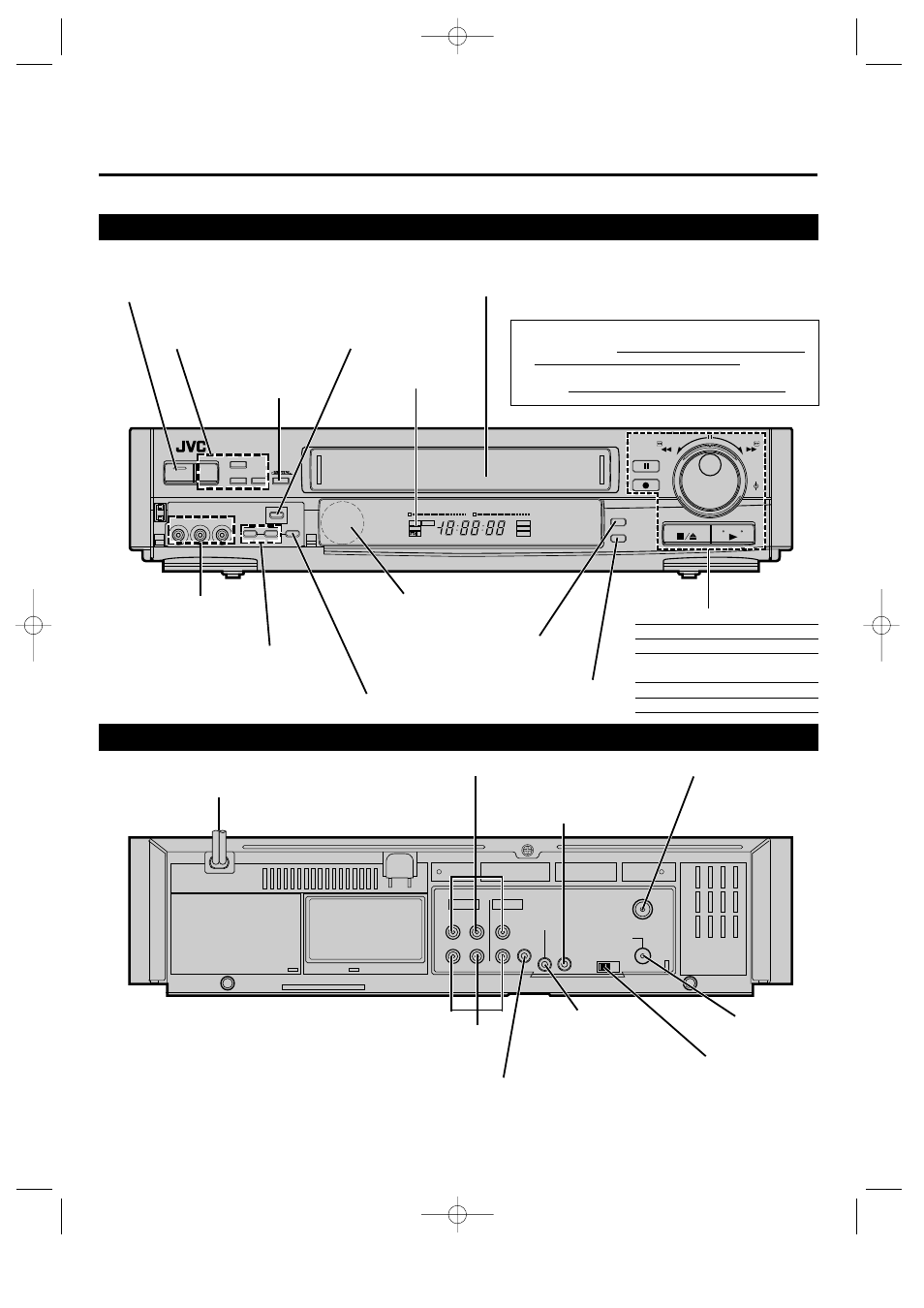

Front Panel
WARNING
Ⅲ Do not insert fingers or foreign objects into the cassette
loading slot since this could lead to injury or damage to the
mechanism. Be especially careful with children.
Ⅲ Do not try to pull out a cassette once automatic loading has
started. This could cause injury or damage the mechanism.
POWER Button
Cassette Loading Slot
Infrared Sensor Window
(Point the remote control toward this.)
VIDEO/AUDIO Input
Connectors
੬
p. 32, 33
Display Panel
੬
p. 6
Basic Operation Buttons
5 / 8 STOP/EJECT
4 PLAY
2 / 3 Rewind/Fast-Forward
(JOG/SHUTTLE control)
6 PAUSE
q REC (Instant Timer)
Back Panel
AC Power Cord
੬
p. 8
RF Output Channel
Select Switch
੬
p. 8
ANT. IN Connector
੬
p. 8
AUDIO/VIDEO OUT(put)
Connectors
੬
p. 8
RF OUT
Connector
੬
p. 8
OUT
AUDIO VIDEO
CH3 CH4
RF OUT
ANT.IN
IN
OUT
IN
R L
CABLE
BOX
PAUSE/
SPECIAL
FUNCTION
G-LINK
IN/OUT
Instant ReView
Button
੬
p. 20
AUDIO/VIDEO IN(put) Connectors
੬
p. 32
PAUSE/SPECIAL
FUNCTION
Connector
੬
p. 22, 33, 34
CABLE BOX
Connector
੬
p. 12
To open the front cover, push the left upper end where labelled "PUSH-OPEN".
MENU/CH/SET/
SELECT
੬
p. 7
R.A.EDIT START
Button
੬
p. 34 – 35
INDEX MARK and
ERASE Buttons
੬
p. 20
SP/EP Button
੬
p. 23
INSERT Button
੬
p. 32
A. DUB Button
੬
p. 33
G-LINK Connector
This connector is provided for
use with future applications.
