MP6212
3

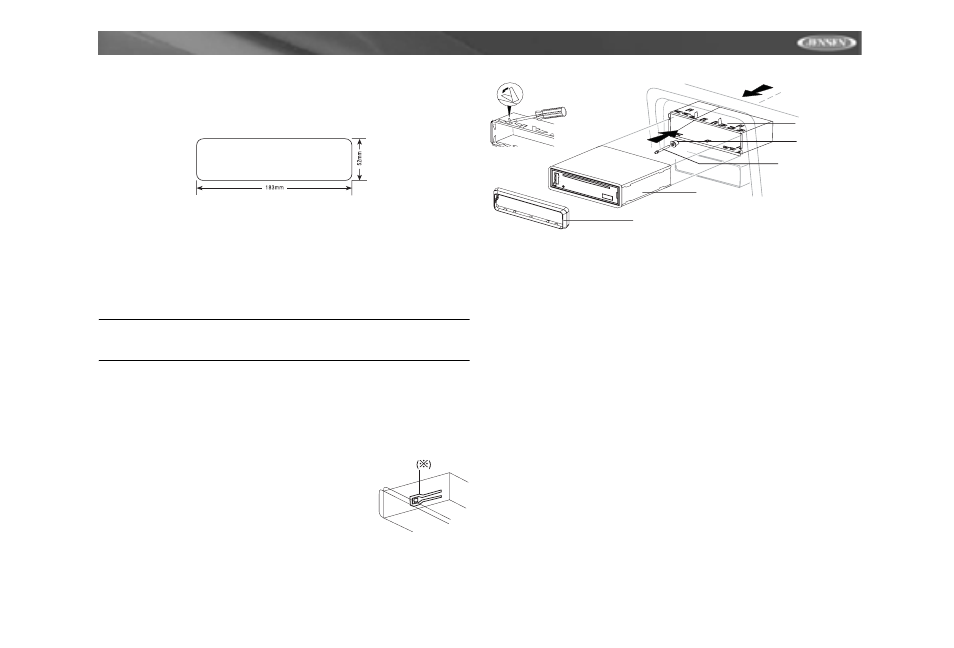

Using the Mounting Sleeve
1. Slide the mounting sleeve off the chassis. If it is locked into position,
use the removal tools (supplied) to disengage it.
2. Check the dashboard opening size by sliding the mounting sleeve into
it.
If the opening is too small, carefully cut or file as necessary until the
sleeve easily slides into the opening. Do not force the sleeve into the
opening or cause it to bend or bow. Check for sufficient space behind
the dashboard for the radio chassis.
3. Locate the series of bend tabs along the top, bottom, and sides of the
mounting sleeve. With the sleeve fully inserted into the dashboard
opening, bend as many of the tabs outward as necessary to firmly
secure the sleeve to the dashboard.
CAUTION: For proper operation of the CD player, the chassis must be
mounted within 20° of horizontal. Make sure the unit is mounted within
this limitation.
4. Place the radio in front of the dashboard opening so the wiring can be
brought through the mounting sleeve. Follow the wiring diagram
carefully and make certain all connections are secure and insulated
with wire nuts or electrical tape. See “Wiring” on page 5. After
completing the wiring connections, turn the unit on to confirm operation
(vehicle ignition must be on). If the unit does not operate, re-check all
wiring until the problem is corrected.
5. Make sure the radio is right-side up, then
carefully slide the radio into the mounting
sleeve until it is fully seated and the spring clips
lock it into place.
6. Secure the rear of the unit to the car body
using the mounting bolt and rubber cushion.
7. Test the radio using the Operating Instructions
that follow.
Kit Installation
If your vehicle requires the use of an installation kit to mount this radio,
follow the instructions included with the installation kit to attach the radio to
the mounting plate supplied with the kit.
1. Wire and test the radio as outlined in the Universal Installation instruc-
tions.
2. Install the radio/mounting plate assembly to the sub-dashboard
according to the instructions in the installation kit.
3. Attach the support strap to the radio and dashboard as described in the
Universal Installation instructions.
4. Replace the dashboard trim panel.
SPRING CLIP
MOUNTING
RUBBER
MOUNTING BOLT
RADIO
TRIM RING
BEND TABS
SLEEVE
CUSHION
