I n C l u d e d H a R d W a R e
(1) wax square
(8) #8x 3/8” Pan head phillips screws
(1) 3/8-16 X 2.25 set screw stud
(8) #8 SAE Flat Washer
(1) 3/8 X 2 fender washer
(1) 3/8 lock washer
(1) 3/8 X 1.25 nut
(1) grill panel template
s P e C I F I C a t I o n s
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W3v3-4
Nominal Impedance: 4 ohms mono
Continuous Power Handling: 500 Watts
P o W e R R e C o m m e n d a t I o n
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1v2.

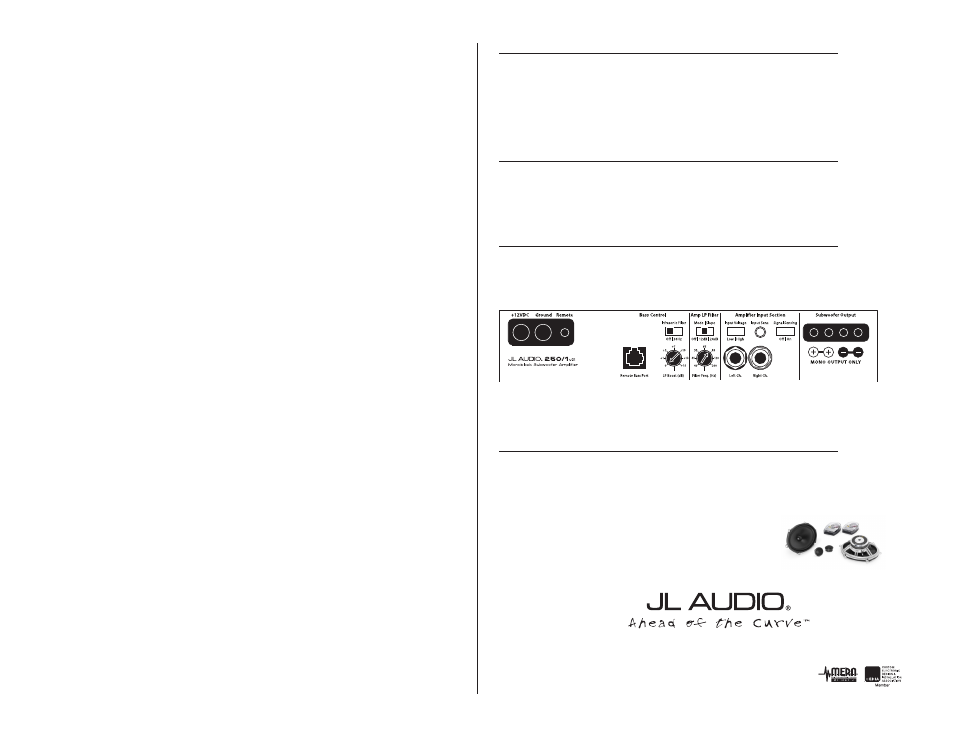

The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 250/1v2
when being used to power your Stealthbox
®
.
The JL Audio 250/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
m I d / H I G H F R e q u e n C Y d R I v e R F I t m e n t
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 5”x 7” / 6”x 8”- Front Doors
Fits JL Audio Models: TR570-CXi, C5-570, C5-570x & ZR570-CSi
Rear Speaker Size / Location: 5”x 7” / 6”x 8”- Rear Door
Fits JL Audio Models: TR570-CXi, C5-570x
