6

English

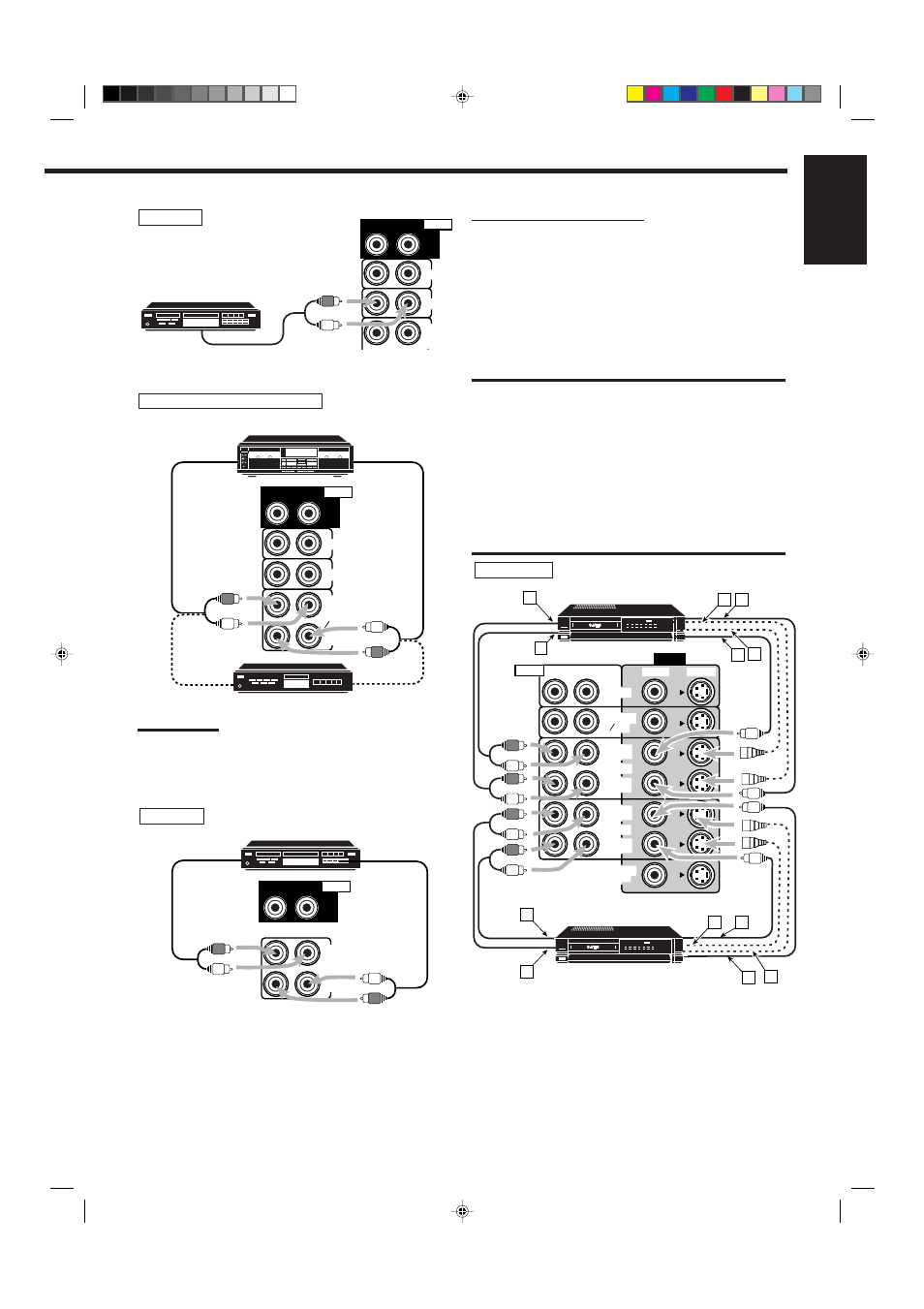

Video component connections

Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
• If your video components have S-video (Y/C-separation) and/or

component video (Y, P

B/

C

B

, P

R/

C

R

) terminals, connect them using

an S-video cable (not supplied) and/or component video cable (not
supplied). By using these terminals, you can get a better picture
quality in the order — Component video > S-video > Composite
video.

IMPORTANT:

This receiver is equipped with the following video terminals —
composite video, S-video and component video terminals. You can
use any of the three to connect a video component.
However, remember that the video signals from one type of these
input terminals are output only through the video output
terminals of the same type.
Therefore, if a recording video component and a playing video
component are connected to the receiver through the different video
terminals, you cannot record the picture from the playing component
on the recording component. In addition, if the TV and a playing video
component are connected to the receiver through the different video
terminals, you cannot view the playback picture from the playing
component on the TV.

A

B

E F

A

B

D

E

VIDEO

FRONT

RIGHT

LEFT

DVD

TV SOUND

DBS

OUT

(REC)

IN

(PLAY)

VCR1

OUT

(REC)

IN

(PLAY)

VCR2

MONITOR

OUT

S-VIDEO

VIDEO

AUDIO

D

C

F

C

S-VHS (or VHS) VCR

Å

To left/right channel audio output

ı

To left/right channel audio input

Ç

To S-video output

Î

To composite video output

To composite video input

Ï

To S-video input

VCR(s)

S-VHS (or VHS) VCR

If your audio components have a COMPU LINK or TEXT
COMPU LINK jack
• See also page 41 for detailed information about the connection and

the COMPU LINK remote control system.

• See also page 42 for detailed information about the connection and

the TEXT COMPU LINK remote control system.

OUT

(REC)

IN

(PLAY)

RIGHT

LEFT

REAR

AUDIO

CDR

CD recorder

To audio input

To audio output

CD recorder

Cassette deck or MD recorder

To audio output

To audio input

To audio input

IN

(PLAY)

OUT

(REC)

RIGHT

LEFT

REAR

AUDIO

PHONO

TAPE

MD

CD

Note:

You can connect either a cassette deck or an MD recorder to the
TAPE/MD jacks. When connecting an MD recorder to the TAPE/MD
jacks, change the source name, which will be shown on the display
when selected as the source, to “MD.” See page 16 for details.

To audio output

Cassette deck

MD recorder

CD player

To audio output

IN

(PLAY)

OUT

(REC)

RIGHT

LEFT

REAR

AUDIO

PHONO

TAPE

MD

CD

CD player
