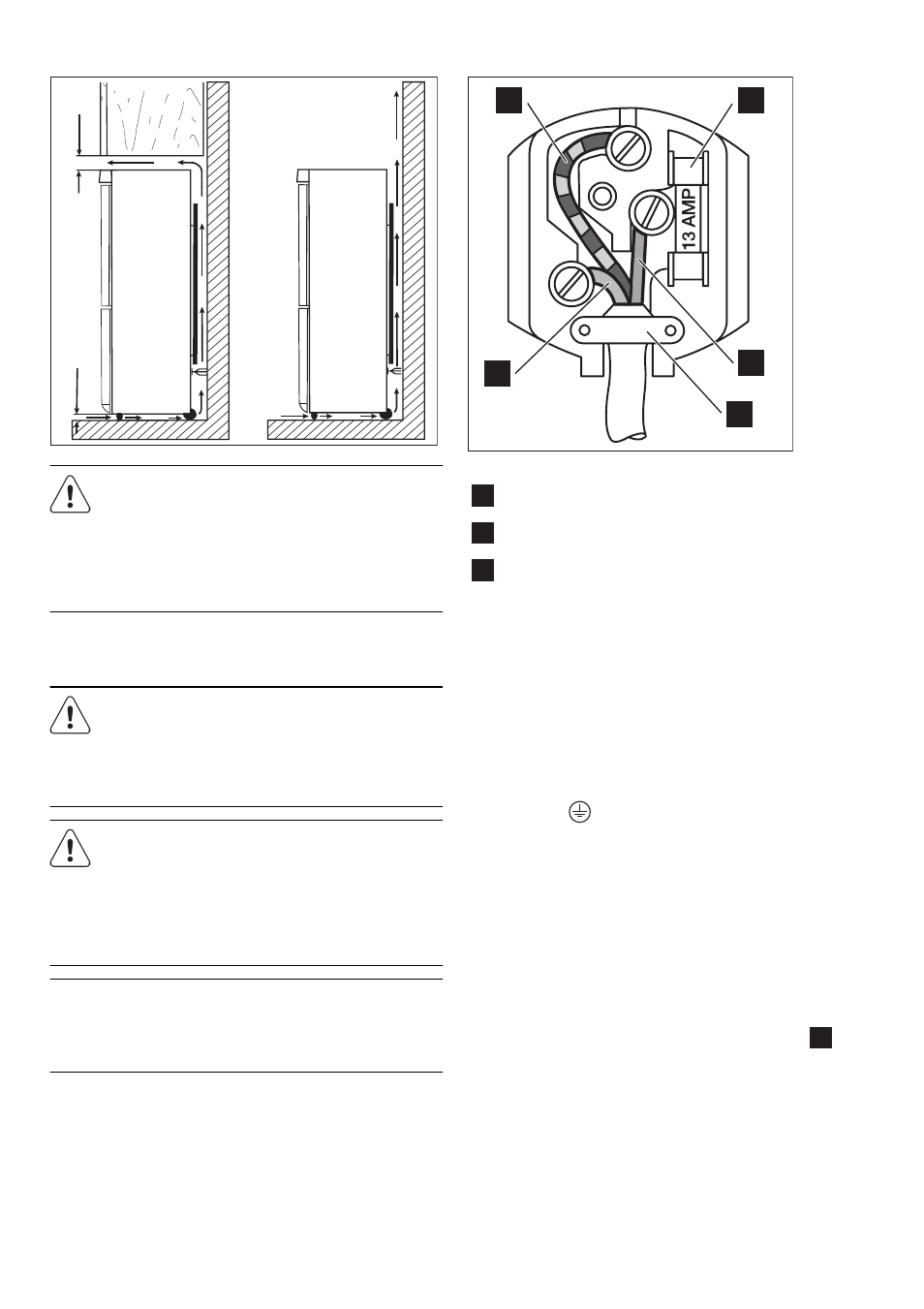

A B
min
100 mm
20 mm
Warning! It must be possible to
disconnect the appliance from the
mains power supply; the plug must
therefore be easily accessible after
installation.
Electrical Connection
Caution! Any electrical work
required to install this appliance
should be carried out by a qualified
electrician or competent person.
Warning! This appliance must be
earthed.
The manufacturer declines any
liability should these safety measures
not be observed.
Important! The wires in the mains lead are
coloured in accordance with the following
code:
1 2
3
4
5
1 Green and Yellow: Earth
3 Brown: Live
5 Blue: Neutral
As the colours of the wires in the mains lead
of this appliance may not correspond with
the coloured markings identifying the
terminals in your plug, proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth
symbol or coloured green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3. Connect the wire coloured brown to
the terminal either marked with the
“L“ or coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp 4 is
secure over the outer sheath.
5. Make sure the electricity supply voltage
is the same as that indicated on the
appliance rating plate.
6. Switch on the appliance.
