Quick Setup Connections
Connecting to the Surround Amplifier
Front
CENTER CHANNEL OUTPUT
(VARIABLE OUTPUT)
TV Rear Panel
Front Surround
CENTER CHANNEL INPUT

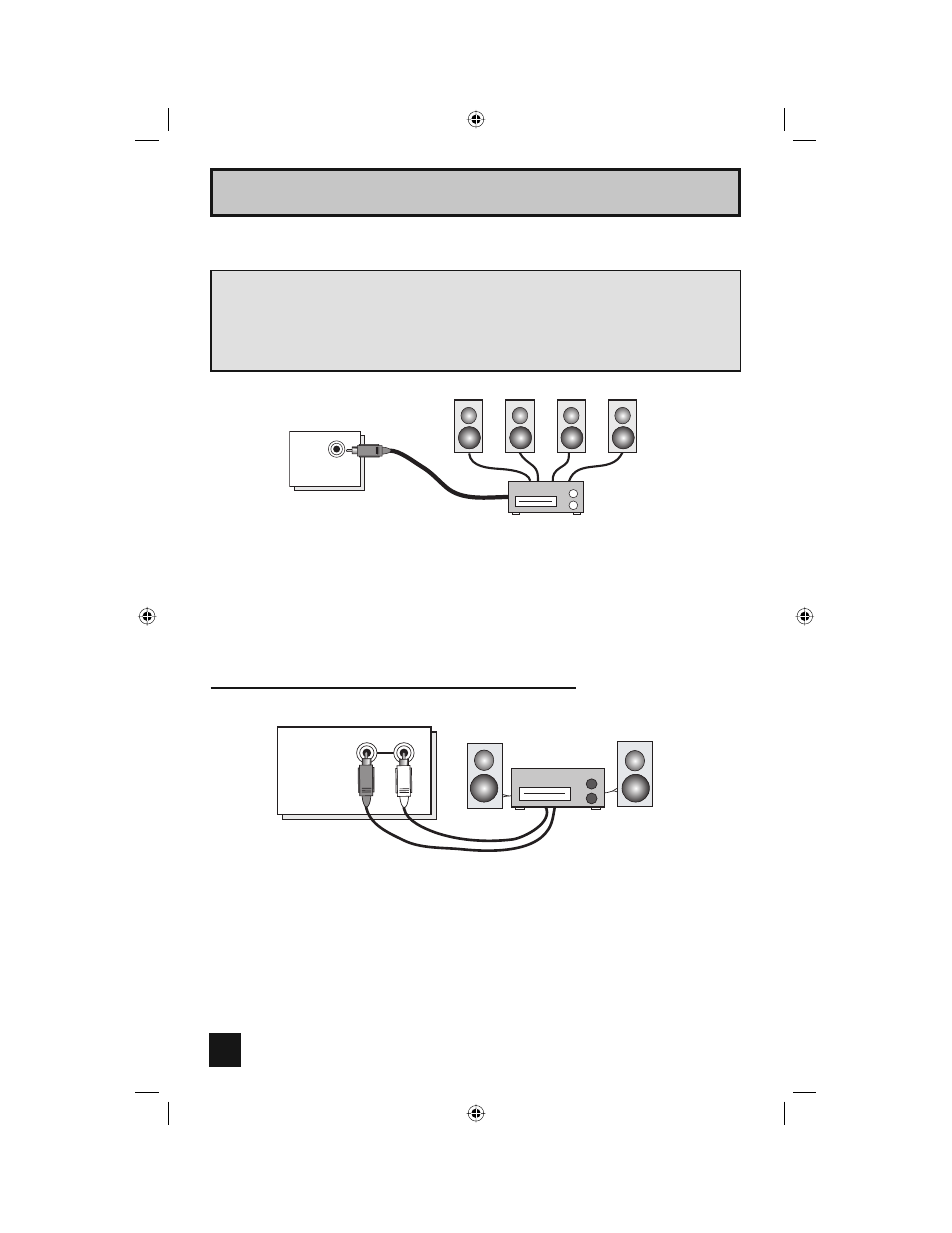

1) Connect the Pin cable from the TV's CENTER CHANNEL INPUT terminal to the surround
amplifier's CENTER CHANNEL OUTPUT terminal.
Note:
• Please read the benefit of this feature on page 59.
In multi-channel sound such as 5.1 channel, the speech characters are played back from the
center speaker.
A center speaker in a movie theater is set in back of the screen so it can recreate a
conversation scene in the movie more naturally. By using your TV's speaker as the center
speaker, you can obtain the same sound effect as in a movie theater in you home theater
sound system.
TV Rear Panel
R L
AUDIO OUTPUT
Speaker Speaker
Amplifier
1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the
LEFT AUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the
RIGHT AUDIO INPUT on the amplifier.
Notes:
• Refer to your amplifier’s manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
Connecting to an External Amplifier
