ENGLISH
OVAL & ROUND BATHS
DRAIN/OVERFLOW
A
B
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING CUTOUT
CORTINA™
RH
VENICIA™
RH
72" (1829 mm) L
72" (1829 mm) W
22-1/4" ( 565 mm) H
1293 lb
(588 kg)/
36 lb/ft 2
(176 kg/m 2 )
100 U.S. gal
(379 liters)
210 lb
(95 kg)
72" (1829 mm) L
42" (1067 mm) W
23" ( 584 mm) H 1130 lb
(514 kg)/
54 lb/ft 2
(263 kg/m 2 )
90 U.S. gal
(341 liters)
130 lb
(59 kg)
20" (508 mm) A
14" (356 mm) B
SPECIFICATIONS (Oval & Round) LH = Left Hand, RH = Right Hand
70" Dia.
(1778 mm)
Hole
Template
Provided
P/N
P187000
Not Available
Not Available
Factory Installed
Discharge
(U394000 HEATER)
16-3/4" (426 mm) A
19-1/4" (489 mm) B
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4
mm).
Factory Installed
Intake
(S749000 Heater)
7
Jacuzzi Whirlpool Bath K339000X 3/06
HEATER,
INTAKE/DISCHARGE
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
RapidHeat
TM : 120 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz. dedicated GFCI protected separate circuit.
SPECIFICATIONS
DUETTA™
7242
RH
72" (1829 mm) L
42" (1067 mm) W
26" ( 660 mm) H Template
Provided
P/N
DA06000
Not Available Factory Installed
Intake
(S749000 Heater)
Min - 98 U.S. gal
(371 liters)
Max - 106 U.S. gal
(401 liters)
130 lb
(59 kg)
1277 lb
(581 kg)/
60.8 lb/ft 2
(296 kg/m 2 )
18.4" (467 mm) A
11" (279 mm) B
(Motor)
(Heater)
CORTINA™
L
W

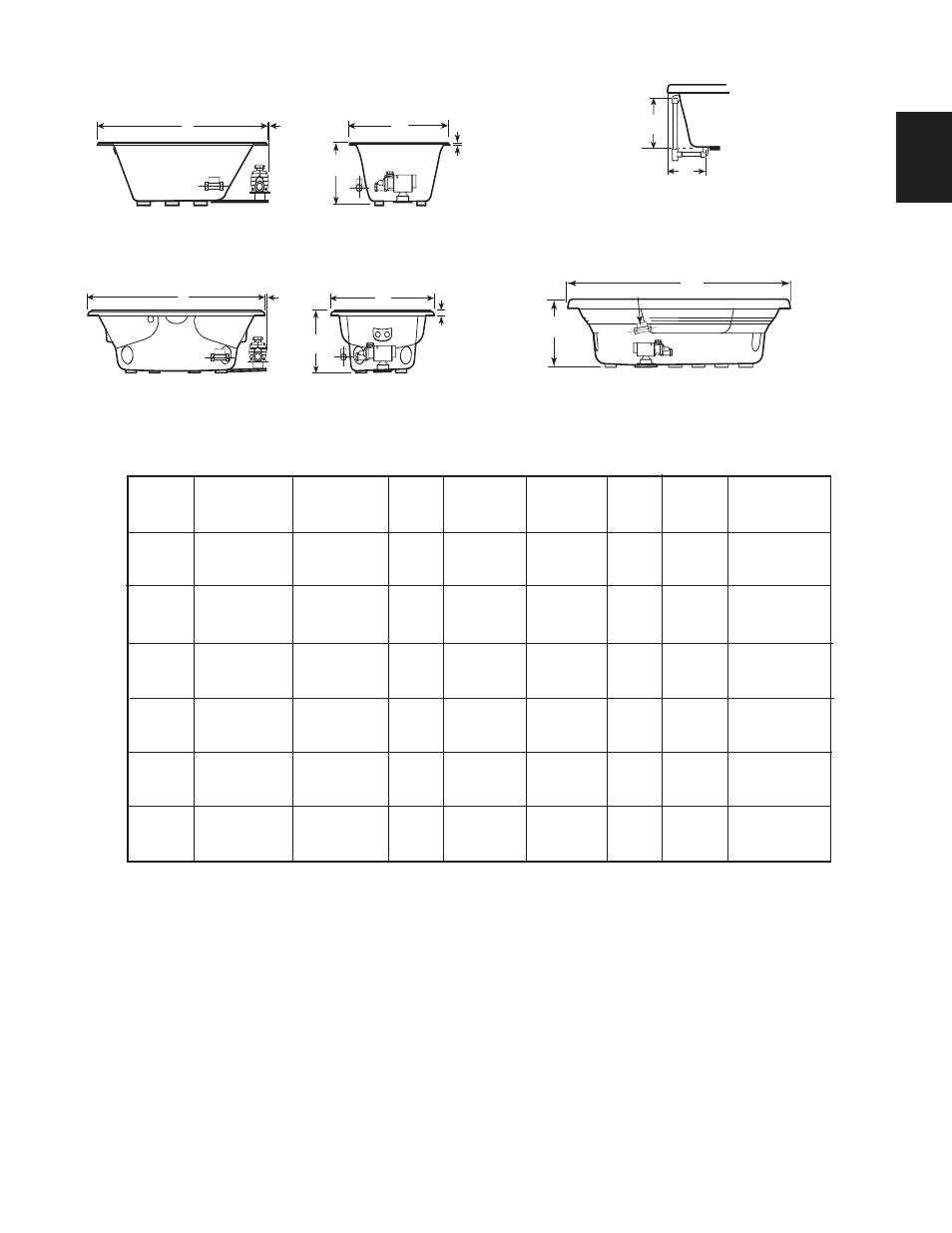

END VIEW
H
W
SIDE VIEW
L
1/2"
DUETTA™
(13 mm)
(Motor)
(Heater)
MAX. 2-1/2"
DUETTA™
6042
RH
60” (1524 mm) L
42” (1067 mm) W
26” ( 660 mm) H Template
Provided
P/N
DA09000
Not Available Factory Installed
Intake
(S749000 Heater)
Min - 77 U.S. gal
(291 liters)
Max - 83 U.S. gal
(314 liters)
110 lb
(50 kg)
999 lb
(454 kg)/
57.1 lb/ft 2
(278 kg/m 2 )
18.4" (467 mm) A
11" (279 mm) B
DUETTA™
6636
RH
66” (1676 mm) L
36” (914 mm) W
26” ( 660 mm) H Template
Provided
P/N
DA08000
Not Available Factory Installed
Intake
(S749000 Heater)
Min - 75 U.S. gal
(284 liters)
Max - 80 U.S. gal
(303 liters)
180 lb
(82 kg)
1019 lb
(463 kg)/
61.8 lb/ft 2
(301 kg/m 2 )
18.4" (467 mm) A
11" (279 mm) B
DUETTA™
6642
RH
66” (1676 mm) L
42” (1067 mm) W
26” (660 mm) H Template
Provided
P/N
DA07000
Not Available Factory Installed
Intake
(S749000 Heater)
Min - 90 U.S. gal
(341 liters)
Max - 95 U.S. gal
(360 liters)
117 lb
(53 kg)
1106 lb
(503 kg)/
57.5 lb/ft 2
(280 kg/m 2 )
18.4" (467 mm) A
11" (279 mm) B
END VIEW
H
W
SIDE VIEW
2"
(Motor)
(Heater)
L
(51 mm)
VENICIA™
MAX. 1/2"
