Jacuzzi Luxury/Designer Bath Series K339000X - Manual (Page 12)

ENGLISH

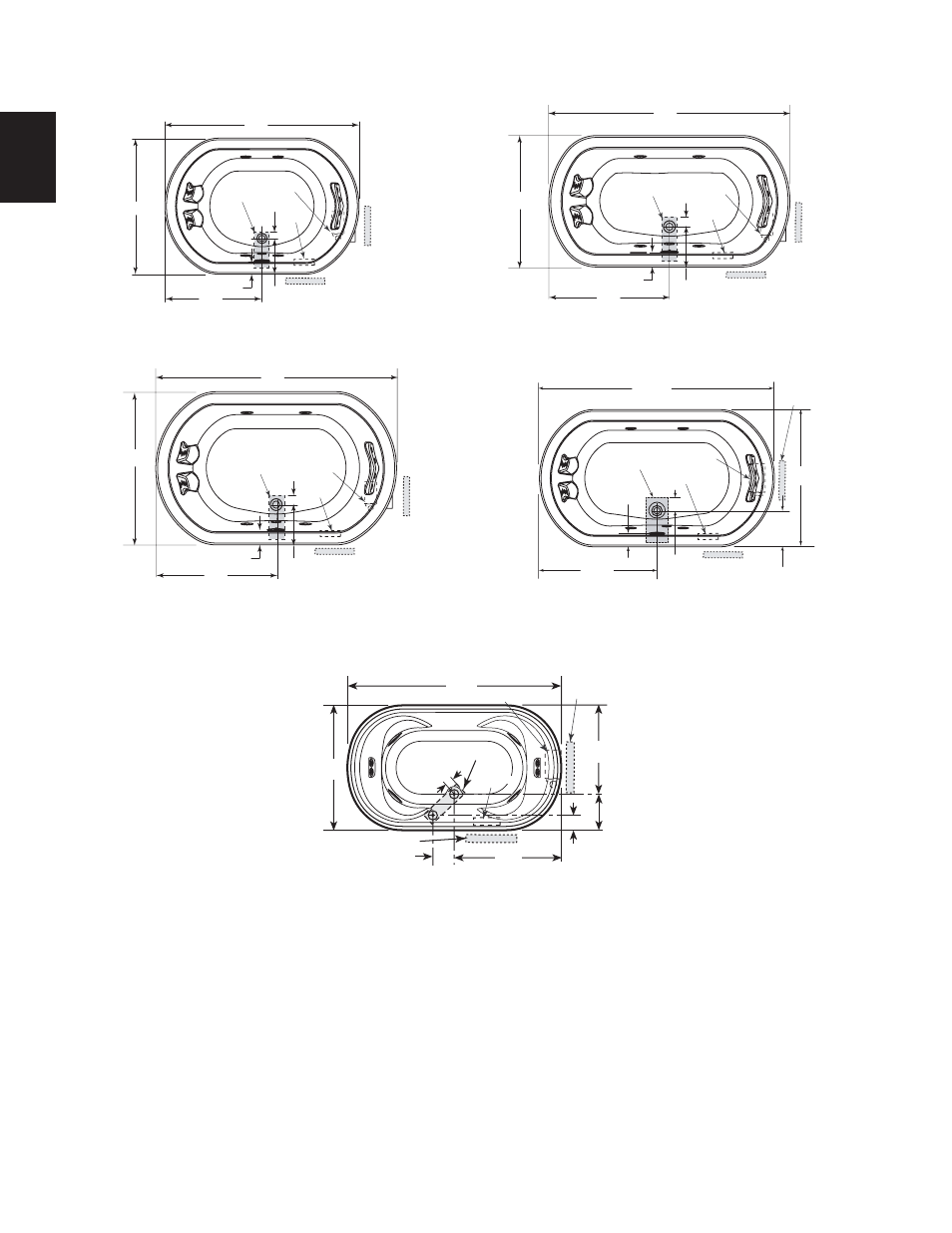

ROUGHING-IN REFERENCE (OVAL)
Some tubs are supplied with cutout and/or undermount template. Refer to CUTOUT on pages 6-8 for template part numbers.
NOTE: 1. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
2. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
3. Service access dimensions given are minimum size.
4. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
ROUGHING-IN REFERENCE
VENICIA™, Right Hand
10-1/2" 36"
3"
42"
72"
12-1/8"
5-1/4"
29-7/8" 18" x 4"
Motor
12" H x 18" L
Service Access
Heater
Opt. Service Access
12" H x 18" L
Service Access
Opt. Service
Access
72"
42"
36"
11"
3-1/2"
14" x 4"
DUETTA™ 7242, Right Hand
Motor
Heater
2"
12
Jacuzzi Whirlpool Bath K339000X 3/06
11.04"
60"
42"
30"
3.84"
DUETTA™ 6042, Right Hand
13" x 4"
2"
Motor
Heater
12" H x 18" L Service Access
Opt. Service
Access 11.04"
66"
36"
33"
3.84"
DUETTA™ 6636 , Right Hand
13" x 4"
2"
Motor
Heater
12" H x 18" L Service Access
Opt. Service Access
11.04"
66"
42"
33"
3.84"
DUETTA™ 6642 , Right Hand
13" x 4"
2"
Motor
Heater
12" H x 18" L Service Access
Opt. Service
Access
