Jacuzzi™ Addendum, Control Panel Electrical Requirements Page 2 of 2 Publication GR86000A • 08-08
Heater
H
2"
L
4"
W
Blower Motor

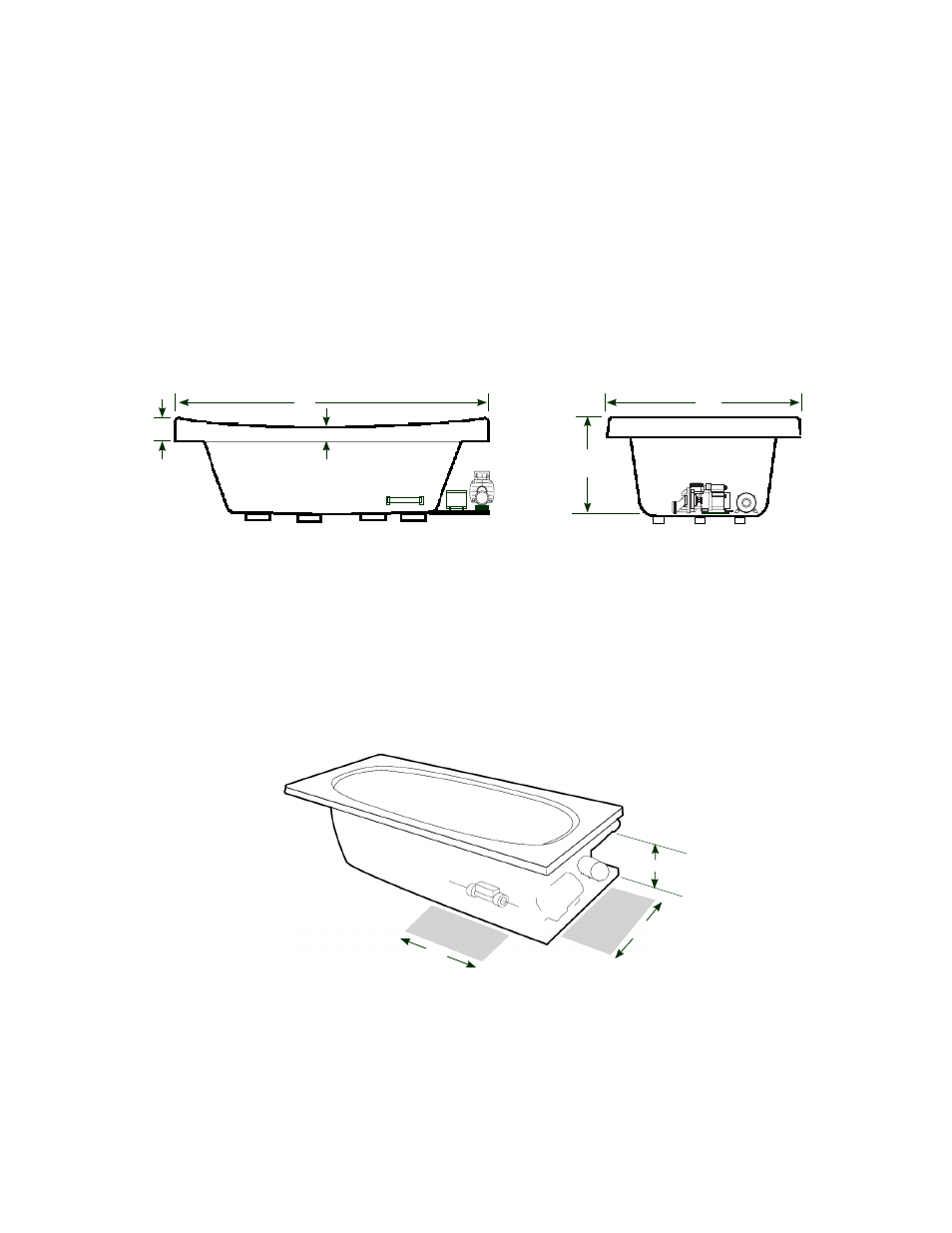

SIDE VIEW END VIEW
Allusion
Pump Motor, Blower Service Access (Required)
FRONT
Heater
Blower
Motor
HEATER SERVICE AREA
MOTOR
SERVICE
AREA
12"
18"
18"
CAUTION: Install all electrical services on the right side of the bath. The blower has been moved from the left
side to the right side, next to the pump motor.
The following details will replace information found in the Combination Air Bath and Whirlpool Installation and Operation
Instructions, BR28000B (4/05) manual.
NOTE: The following art replaces the similar art found on
Page 1 of the Combination Air Bath and Whirlpool manual.
NOTE: The following art replaces both pieces of similar art at the bottom of Page 3 of the manual. The art
"Blower Service Access" shows the blower on the left end of the bath, but it has been moved to the right end,
alongside the pump motor.
