14–15
N
L
K
J
D
C
B
A
M
H
E
I
G
F

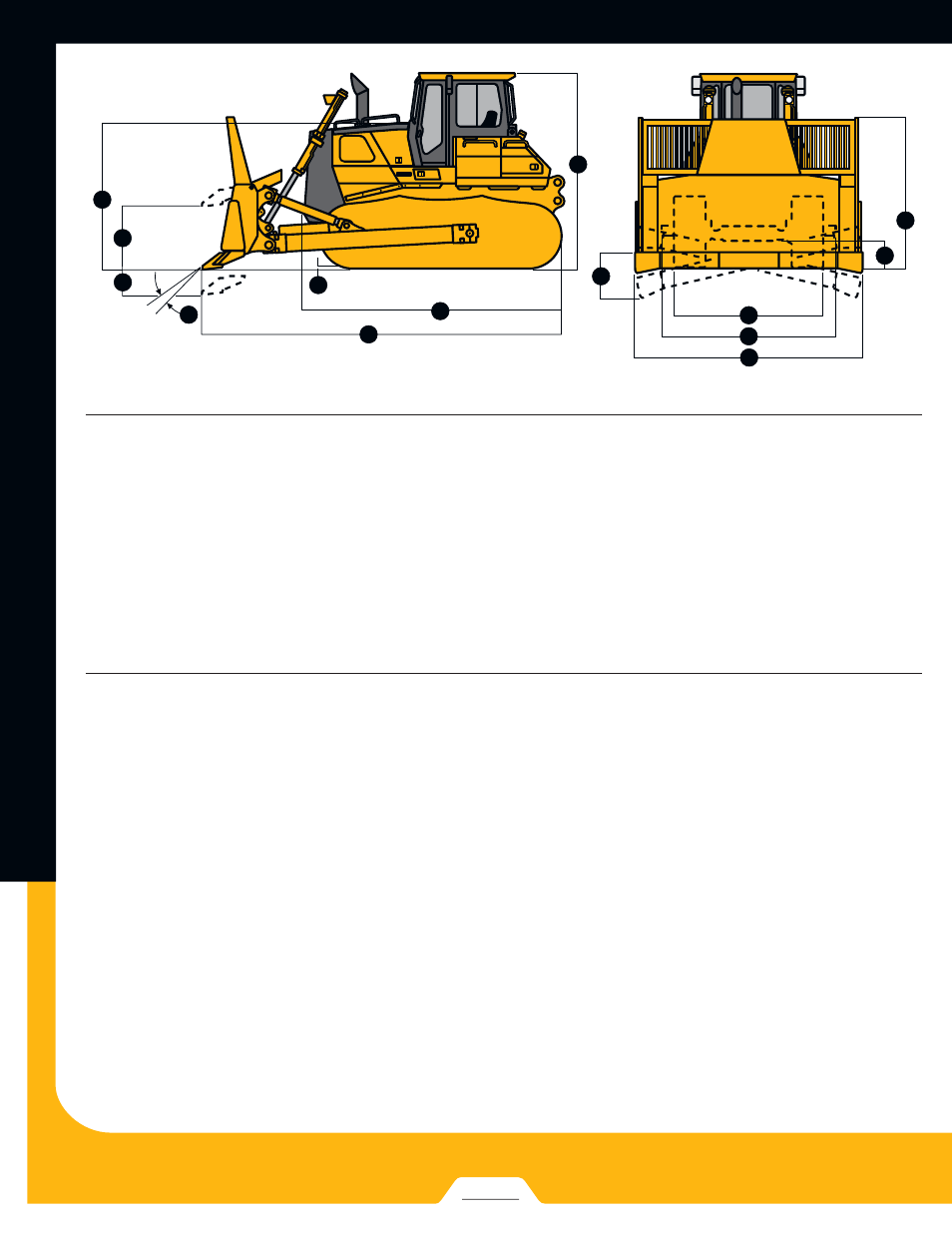

Dimensions 1050C Waste Handler
A Height over cab (including grousers) . . . . 143 in. (3640 mm)
B Height over engine cover . . . . . . . . . . . . 107 in. (2725 mm)
C Overall length (without blade) . . . . . . . . . 192 in. (4885 mm)
D Height of grousers . . . . . . . . . . . . . . . . . 3.3 in. (84 mm)
E Ground clearance . . . . . . . . . . . . . . . . . . 25 in. (625 mm)
F Total width over blade-mounting
trunnions . . . . . . . . . . . . . . . . . . . . . . . . 124 in. (3145 mm)
G Width over shoes
24 in. (610 mm) . . . . . . . . . . . . . . . . . . . 110 in. (2790 mm)
26 in. (660 mm) . . . . . . . . . . . . . . . . . . . 112 in. (2845 mm)
28 in. (711 mm) . . . . . . . . . . . . . . . . . . . 114 in. (2891 mm)
Blades with Optional Trash Rack
Semi-U Dozer Blade U Dozer Blade
Blade weight (including push beams,
trunnion mounts, cupped end bits,
tilt cylinder, and trash rack). . . . . . . . . . . 14,460 lb. (6558 kg)
16,300 lb. (7395 kg)
Blade capacity . . . . . . . . . . . . . . . . . . . . . . . 27.7 cu. yd. (21.2 m 3 ) 32.0 cu. yd. (24.5 m 3 )
H Height of blade . . . . . . . . . . . . . . . . . . . . 97 in. (2450 mm) 94 in. (2387 mm)
I Width of blade. . . . . . . . . . . . . . . . . . . . . 165 in. (4200 mm) 170 in. (4325 mm)
J Lifting height. . . . . . . . . . . . . . . . . . . . . . 55 in. (1400 mm) 55 in. (1400 mm)
K Blade digging depth . . . . . . . . . . . . . . . . 22 in. (570 mm) 22 in. (570 mm)
L Maximum blade pitch adjustment . . . . . . 10 degrees 10 degrees
M Maximum tilt. . . . . . . . . . . . . . . . . . . . . . 39 in. (1000 mm) 40 in. (1025 mm)
N Overall length . . . . . . . . . . . . . . . . . . . . . 252 in. (6415 mm) 272 in. (6915 mm)
