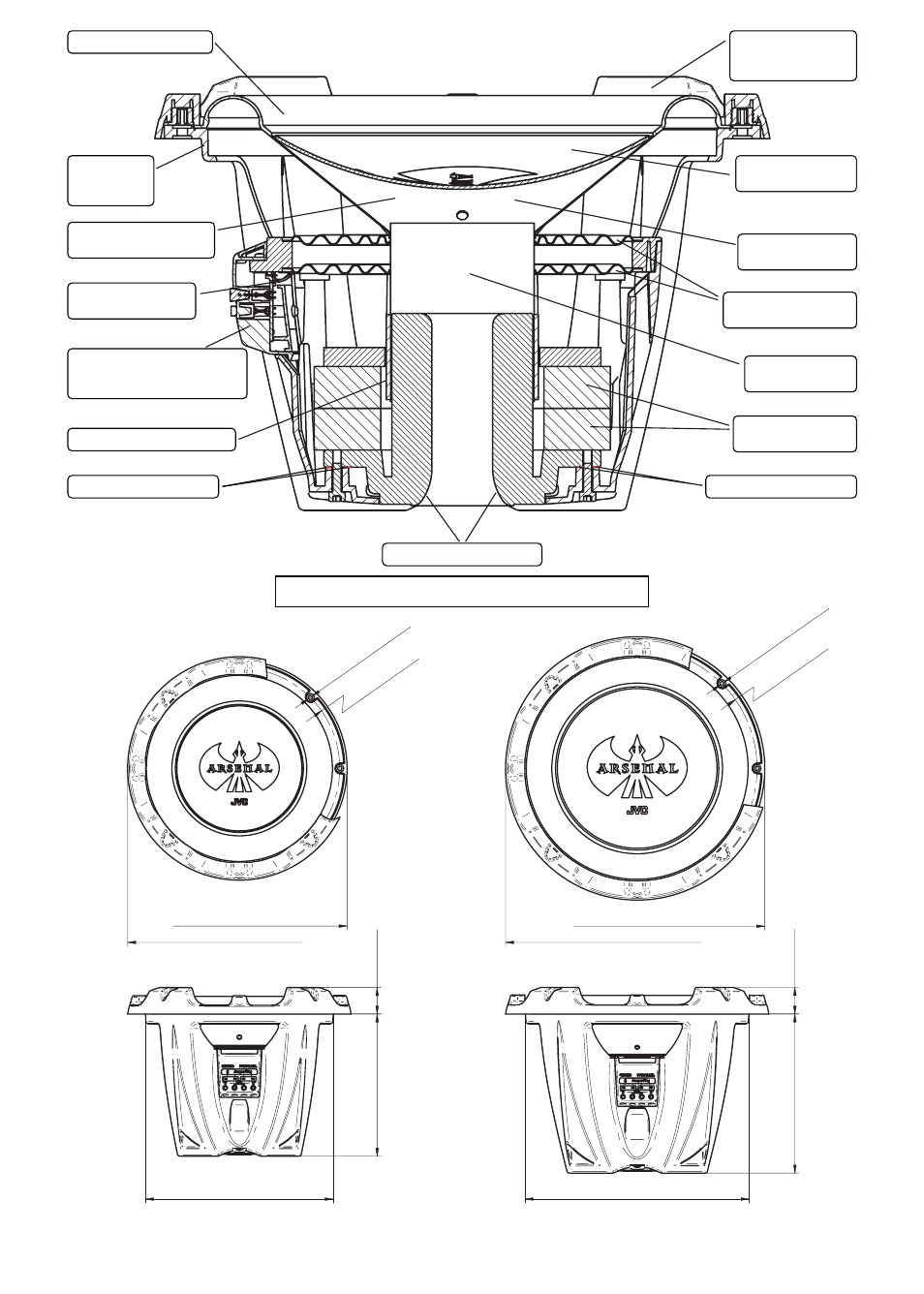

Air Vented
Aluminum
Cast Basket
Integlated Dual-Layer
Cone construction
Woven Tinsel Lead
(Patent Pending)
Rapid Fire Impedance
Selector Speaker Terminal
( Patent Pending)
Dual Stacked
Strontium Magnet
Dual Diametric
Progressive Spider
Multi Mount Smart
Trim Ring
(Patent Pending)
Kevlar Laminated
Hemp-Fiber Cone
Aluminum Voice
Coil Former
Santoprene Surround
4 (2+2) Layer Voice Coils
Aero Vent Bottom Plate
T3 Chassis (Thermal Transfer Technology)
Heat Transfer Silicon Heat Transfer Silicon
Hemp-Fiber Drive
Cone
- 14 -
CS-AW8040 CS-AW8240
1-9/32 inch [ 32.51 mm ]
6-28/32 inch [ 175 mm ]
Dia. 9-4/32 inch [ 231.96 mm ]
Dia. 10-14/32 inch [ 265 mm ]
Dia. 10-26/32 inch [ 275 mm ]
Dia. 9-23/32 inch [ 247 mm ]
8-
Dia.
7/32
inch
[ 5.5 mm ] HOLES
1-9/32 inch [ 32.69 mm ]
7-23/32 inch [ 195.8 mm ]
Dia. 10-28/32 inch [ 275.94 mm ]
Dia. 12-12/32 inch [ 314 mm ]
Dia. 12-24/32 inch [ 324 mm ]
Dia. 11-20/32 inch [ 295 mm ]
8-
Dia.
7/32
inch
[ 5.5 mm ] HOLES
