Getting Started
Connecting the speakers and DVD player
Turn off all components before connections.

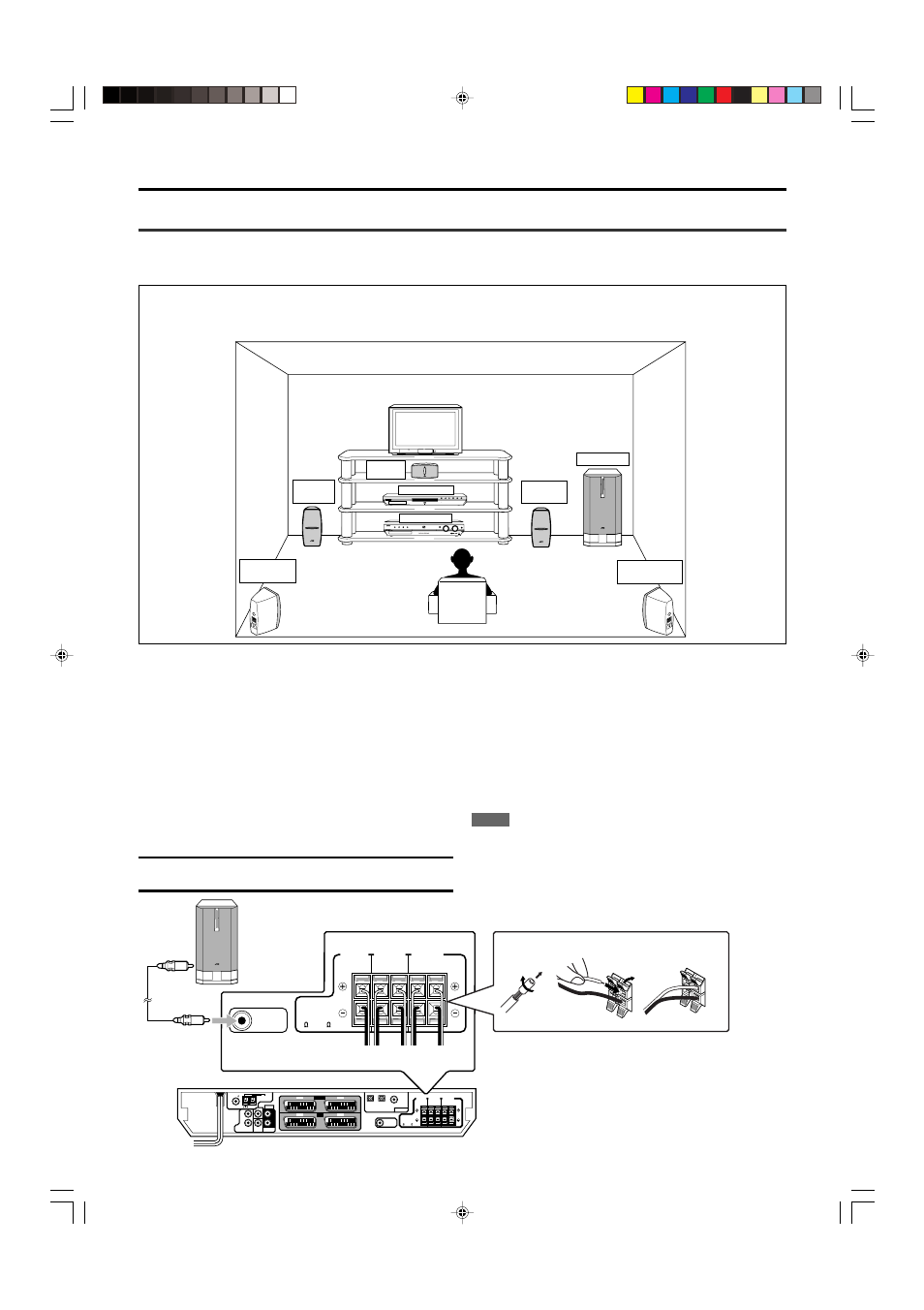

Speaker Layout Diagram
After connecting the front, center and surround speakers, and/or a subwoofer, set the speaker setting information properly to obtain the best
possible surround effect. For details, see pages 15 to 18.
Connecting the front, center, and surround speakers
For each speaker, connect the (+) and (–) terminals on the rear panel
to the (+) and (–) terminals marked on the speakers respectively.
1
Twist and remove the insulation at the end of each
speaker cord (not supplied).
2
Press and hold the clamp of the speaker terminal (1),
then insert the speaker cord (2).
3
Release the finger from the clamp.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
D I G I T A L S U R R O U N D D I G I T A L P R O L O G I C
RX-ES1 HOME CINEMA CONTROL CENTER
STANDBY / ON STANDBY TV DIRECT SETTING ADJUST SURROUND DVD MULTI DVD STB VCR TV FM / AM SET / TUNER PRESET SOURCE SELECTOR MASTER VOLUME PHONES / MULTI JOG
Center
speaker
Subwoofer
Left front
speaker
Left surround
speaker
Right front
speaker
Right surround
speaker
XV-N55SL
RX-ES1SL
Powered subwoofer
COAXIAL
AM LOOP ANTENNA
DVD IN
AUDIO
L
R
L
R
FM 75
AM EXT CENTER
FRONT
AV IN / OUT
AV IN
SUBWOOFER OUT
DIGITAL IN DIGITAL 3 (TV) DIGITAL 2 (STB)
DIGITAL 1 (DVD) CENTER SPEAKER SURROUND SPEAKERS
RIGHT LEFT RIGHT LEFT
FRONT SPEAKERS
SUB WOOFER SURR (REAR)
CAUTION: SPEAKER IMPEDANCE 8 ~ 16
DVD
VCR TV
STB
SUBWOOFER
OUT
CENTER
SPEAKER
SURROUND
SPEAKERS
RIGHT LEFT RIGHT LEFT
FRONT
SPEAKERS
CAUTION:
SPEAKER
IMPEDANCE
8 ~ 16
1 2
1 2 3
AB CD E
RX-ES1SL
Connecting the subwoofer
By connecting a subwoofer, you can enhance the bass or reproduce
the original LFE signals recorded in the digital software.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cord
with RCA pin plugs (not supplied).
• Refer also to the manual supplied with your subwoofer.
NOTE
You can place a subwoofer wherever you like since bass sound is
non-directional. Normally place it in front of you.
A To center speaker
B To right surround speaker
C To left surround speaker
D To right front speaker
E To left front speaker
CONTINUED ON THE NEXT PAGE
