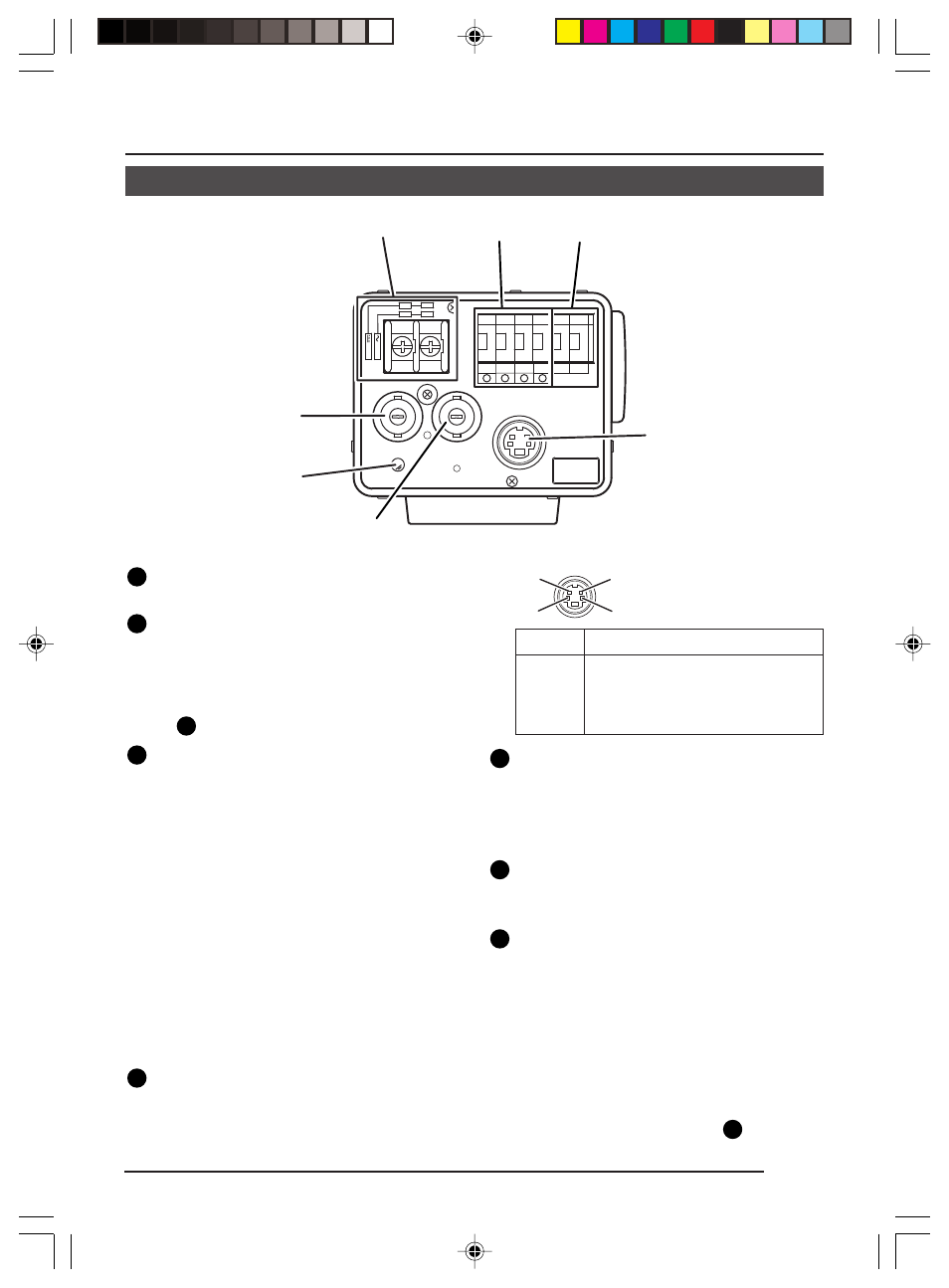

[DC 12V, AC 24V] Power input terminals
To input DC 12V or AC 24V power.
20
[TX+A, TX-B, RX+C, RX-D] Control
signal connection terminals
Terminals for inputting signals with
electrical characteristics conforming to
the EIA/TIA RS-422A or RS-485 standard.
੬
17
RX.TERM switch
21
[AUX, GND] Auxiliary Input/Output
Terminals
If there is any change in the area set on
the MOTION DETECT screen, these
ter minals output the corresponding
signals. (
੬ Page 34)
These terminals also output the B&W/
COLOUR signal. (
੬ Page 30)
[Open-collector low signal. Maximum
voltage 30V, current 30mA.]
When carr ying out B&W/COLOUR
switching using the control signal, the
signals are input through these terminals.
(
੬ Page 30)
[B&W: make; COLOUR: break]
22
[Y/C OUT] Y/C output connector
This 4-pin connector outputs the luminance
and chrominance signal.
• Pin configuration of Y/C OUT connector
23
[VIDEO OUT] Video signal output
connector
This BNC connector outputs a composite
video signal. Connect this to the video input
connector of a video monitor, switcher, etc.
24
[POWER] Power indicator lamp
This lamp lights when power is supplied
to the camera.
25
[SYNC IN] Sync signal input connector
This BNC connector accepts the input of
an external sync signal such as a composite
video (VBS) or black burst (BB) signal.
When a sync signal is input into this
connector, the camera operation is
automatically synchronized with the
external sync signal.
To terminate this connector at 75
Ω, turn
ON the EXT.TERM switch
14
.
Pin No.
Signal
1
GND
2
GND
3
Luminance (Y)
4
Chrominance (C)
4
2
3
1
