JVC HR-J245EA - Manual (Page 31)

EN
31

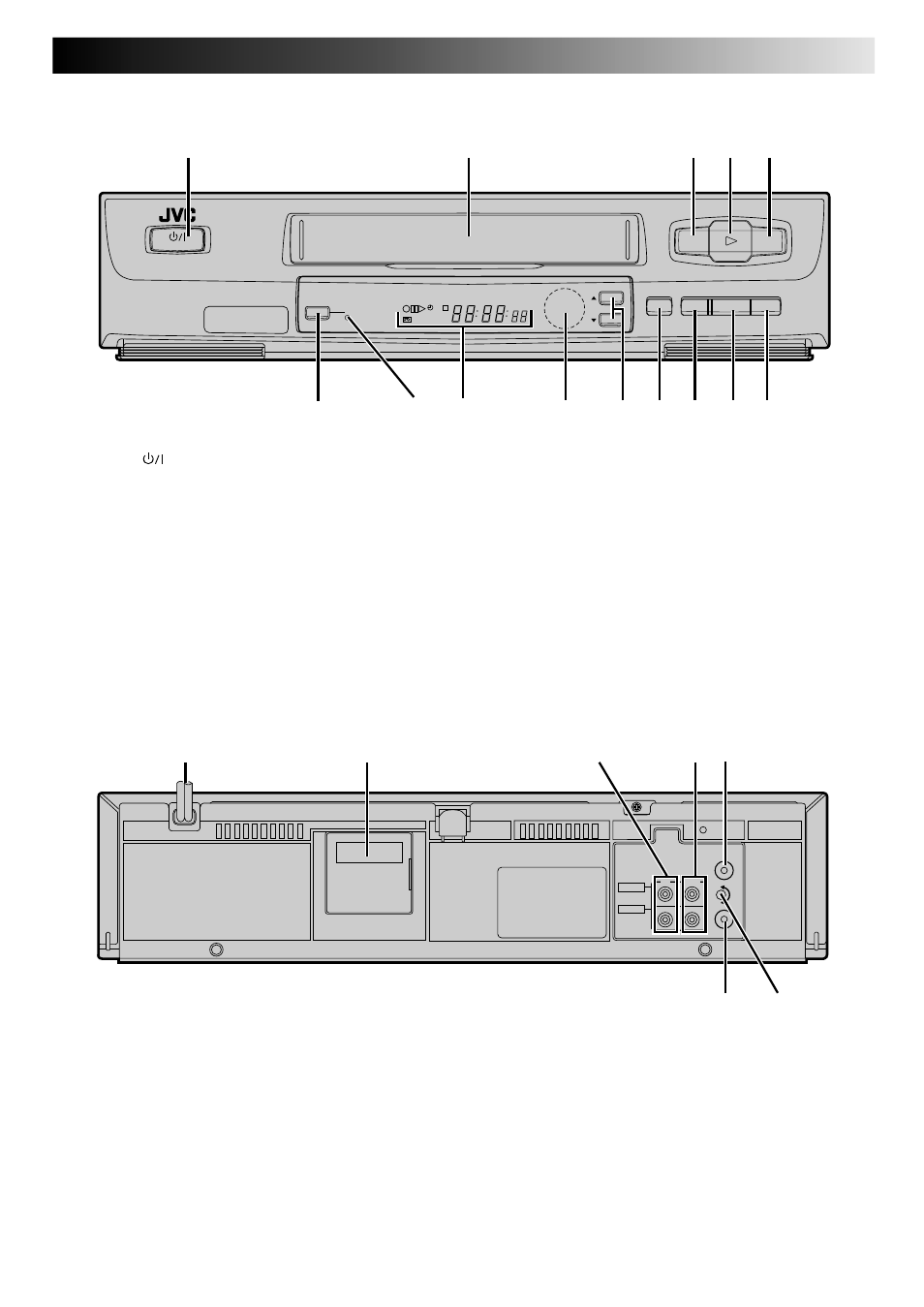

FRONT VIEW
INDEX
q 5 / 8
2 3
TV
PROG
DISPLAY INTELLIGENT
AUTO SP/LP
TIMER
POWER
SPLPEP
REVIEW M
1 2 4 3 5
6 0 9 ! @ # $ 8 7
1 POWER Button ੬ pg. 4
2 Cassette Loading Slot
3 Rewind [REW] Button
੬ pg. 8
4 PLAY Button ੬ pg. 8
5 Fast Forward [FF] Button
੬ pg. 8
6 AUTO SP/LP TIMER Button ੬ pg. 19
7 AUTO SP/LP TIMER Indicator ੬ pg. 19
8 Display Panel ੬ pg. 32
9 Infrared Beam Receiving Window
0 TV PROG
5/∞ Buttons ੬ pg. 12
! DISPLAY Button ੬ pg. 13
@ RECORD Button
੬ pg. 12
# STOP/EJECT Button ੬ pg. 8
$ INTELLIGENT PICTURE Button ੬ pg. 10
REAR VIEW
(32)
(40)
41
33
ANT. IN
RF OUT
IN OUT
AUDIO
VIDEO
5 3 2
7 6
1 4
5 ANT. IN Connector ੬ pg. 3
6 RF OUT Connector
੬ pg. 3
7 RF Output Channel Adjustment Screw ੬ pg. 5
1 Mains Power Cord ੬ pg. 3
2 Lithium Battery Compartment
੬ pg. 5
3 VIDEO/AUDIO Input Connectors ੬ pg. 22, 23
4 VIDEO/AUDIO Output Connectors ੬ pg. 3, 22
