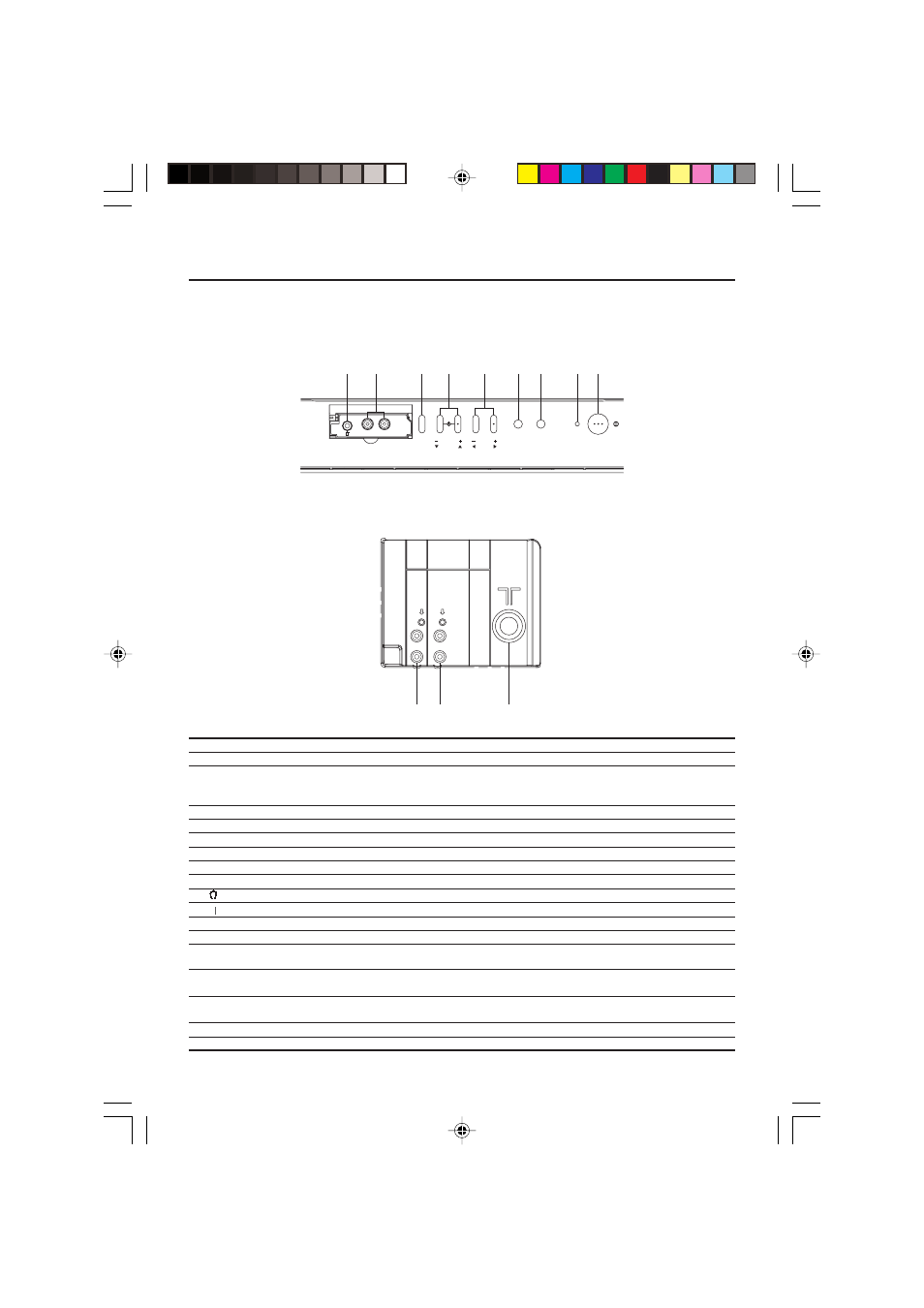

TV buttons and functions
Front of the TV
AV-21V115
MENU
OK
CHANNEL
VOLUME
POWER
VIDEO
GG30068-002A
IN ( VIDEO- 2 )
AUDIO
9
7
4 3
2 1
8
6
5
Rear of the TV
AV-21V115
No. Button/terminal
Description
1
I (main power)
Press to turn on or turn off the TV’s main power.
2
Power lamp
Indicate the TV is being turned on or off.
No colour : TV’s main power is being turned off.
Red : TV’s main power is being turned on.
3
Not Application
4
Remote control sensor
5
VOLUME
M
Press to adjust the volume level.
6
CHANNEL
M
Press to select the desired channel.
7
MENU
Press to display the menu.
8
IN (VIDEO-2)
Video and audio input jacks for VIDEO-2 mode.
9
Headphone jack.
0
Aerial socket.
-
OUTPUT
Video and audio output jacks.
=
VIDEO-1 INPUT
Video and audio input jacks for VIDEO-1 mode.
How to operate the menus with the TV button
Work as same as the button on the
TV button
remote control unit
Note
MENU
MENU/OK button
To display main menu and exit
menu after finish setting.
CHANNEL
M
∞/5 button
To select menu function.
VOLUME
M
2/3 button
To adjust the desired function.
OUTPUT
VIDEO-1
INPUT
VIDEO
AUDIO
0
-
=
