SERVICE TRANSMISSION
Service Transmission
Checking Automatic Transmission Fluid Level
1. Let engine cool.
2. Allow oil in transmission to cool before checking.
M63559

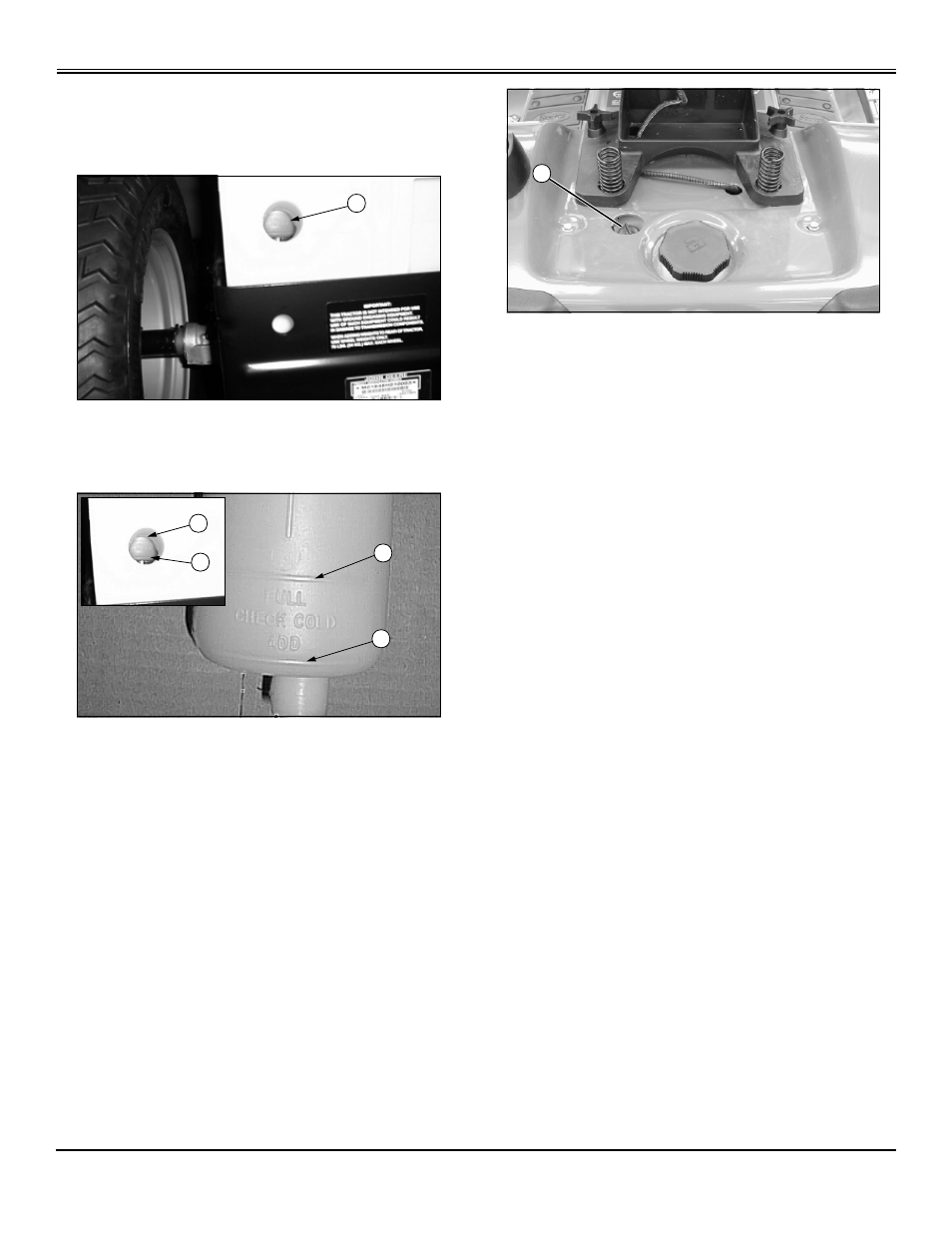

3. On rear of machine, there is a sight hole (A) through left
rear side of fuel tank. Transmission reservoir can be seen
through sight hole.
M63557a
4. Check full (B) and add (C) marks on reservoir bottle
which will indicate if fluid needs to be added.
5. Add transmission fluid if necessary.
Adding Automatic Transmission Fluid
1. Tip seat forward and slide seat suspension completely
forward.
MX13486
2. Remove cap (A) from transmission reservoir. Cap is
located under seat and left of fuel cap.
3. Fill to correct level using specified transmission oil
(motor oil). Do not overfill.
