5
XV-N512S/GNT0055-003A/English
P
re
p
a
ra
ti
o
n
s

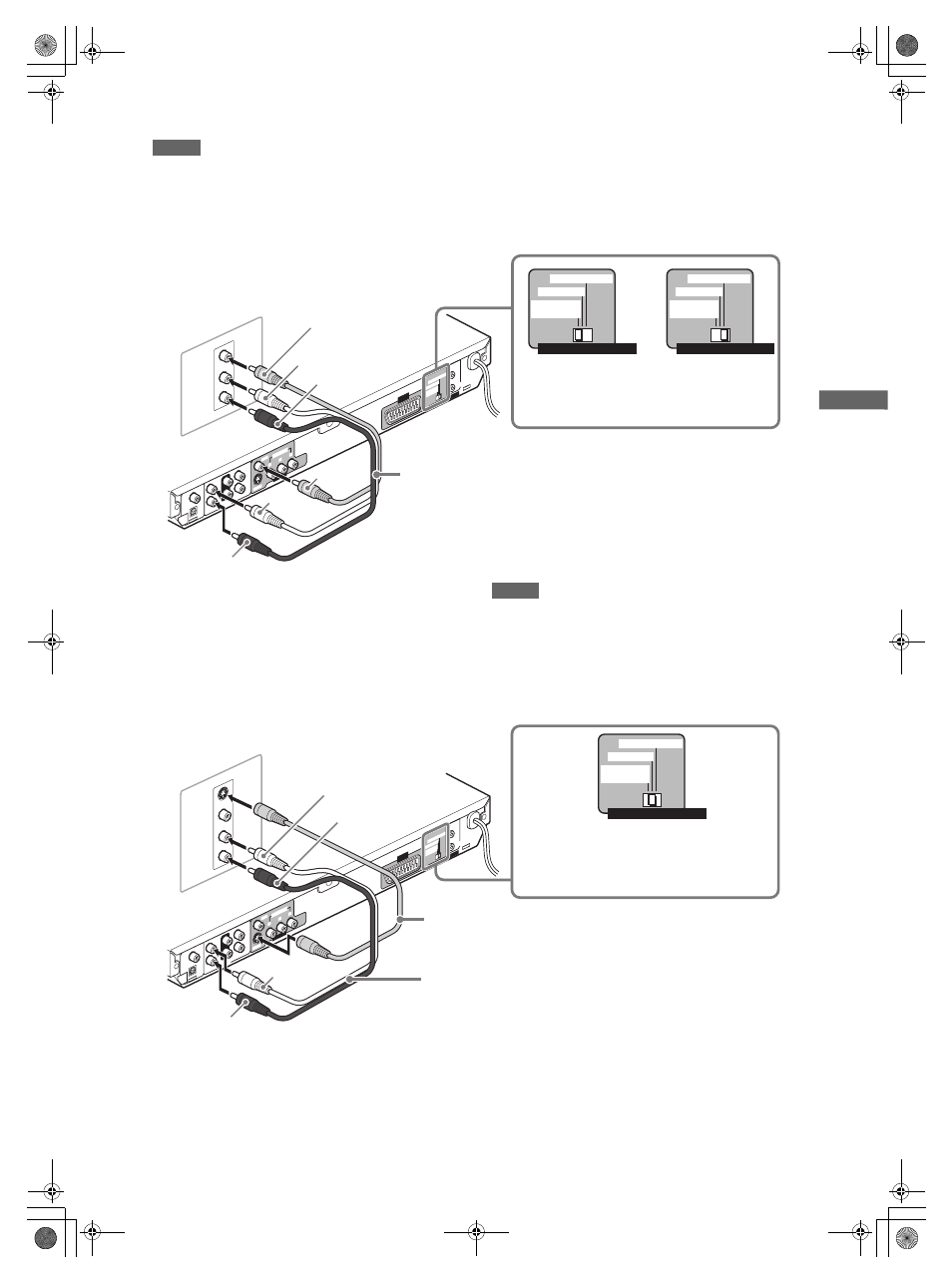

B Connecting to a TV having composite video input jack
NOTES
• Be sure to connect the red and white plugs of the audio cable to
the FRONT RIGHT/LEFT jacks on the rear of the player, as
shown in the illustration.
• Do not connect cables to SCART connector. If you do so, you
will not be able to obtain correct signals from the VIDEO (and
COMPONENT VIDEO OUT) jacks.
• If your TV has a monaural audio input instead of stereo, you
need to use an optional audio cable which converts stereo
audio output to monaural.
• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH
STEREO] (see page 35).
C Connecting to a TV with an S-video jack
If your TV has an S-VIDEO input, you can get better picture
quality by connecting it with the S-VIDEO output of the player
using an S-video cable instead of connecting the video input of
the TV to the VIDEO jack of the player.
NOTES
• Be sure to connect the red and white plugs of the audio cable to
the FRONT RIGHT/LEFT jacks on the rear of the player, as
shown in the illustration.
• To obtain correct signals from the S-VIDEO output, do not
connect cables to the COMPONENT VIDEO OUT jacks, and
SCART connector of the player.
• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH
STEREO] (see page 35).
RIGHT
LEFT
AUD IO
VID EO
IN
SUB -WO OFE R
CEN TER
RGB/COMPOSITE
RIG HT
FRO NT
SUR ROU ND
LEF T
COA XIA L
OPT ICA L
PCM /
STR EAM
DIGIT AL
OUT
AU DIO OUT
VID EO
S-V IDE O
Y
P B
P R
AV COMPU LINK
COM PON ENT
/COM POSITE
S-VIDEO Y/C
VIDEO OUT
COMPONENT
VIDEO SIGNAL SELEC
TOR
AV OUT
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
Yellow
White
Audio/video
cable (supplied)
White
Red
Yellow
TV
The player
Set the VIDEO SIGNAL SELECTOR to “COMPONENT/
COMPOSITE” or “RGB/COMPOSITE.” Red
or
• When you connect cables to both the VIDEO jack
and COMPONENT VIDEO OUT jacks, set the
selector to “COMPONENT/COMPOSITE.”
RIGHT
LEFT
AUD IO
VIDEO
S-VIDEO
IN
SUB -WO OFE R
CEN TER
RGB/COMPOSITE
RIG HT
FRO NT
SUR ROU ND
LEF T
COA XIA L
OPT ICA L
PCM /
STR EAM
DIGIT AL
OUT
AU DIO OUT
VID EO
S-V IDE O
Y
P B
P R
AV COMPU LINK
COM PONEN T
/CO MPOS ITE
S-VIDEO Y/C
VIDEO OUT
COMPONENT
VIDEO SIGNAL SELEC
TOR
AV OUT
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
TV
White
Red
The player
Red
White
Set the VIDEO SIGNAL SELECTOR to “S-VIDEO Y/C.”
Audio cable
(supplied)
S-video cable
(not supplied)
