Connections
Before using the player, connect the player to a TV and/or
amplifier.
Before making connections
• Do not connect the AC power cord until all other
connections have been made.
• Connect VIDEO OUT of the player directly to the video
input of your TV. Connecting VIDEO OUT of the player to a
TV via a VCR may cause a monitor problem when playing
back a copy-protected disc. You may also have a monitor
problem when connecting the player to an integrated TV/
Video system.
Connecting to a TV
The following sections A to D describe TV connections where
only a TV is connected to the player so that you will hear audio
from the TV.

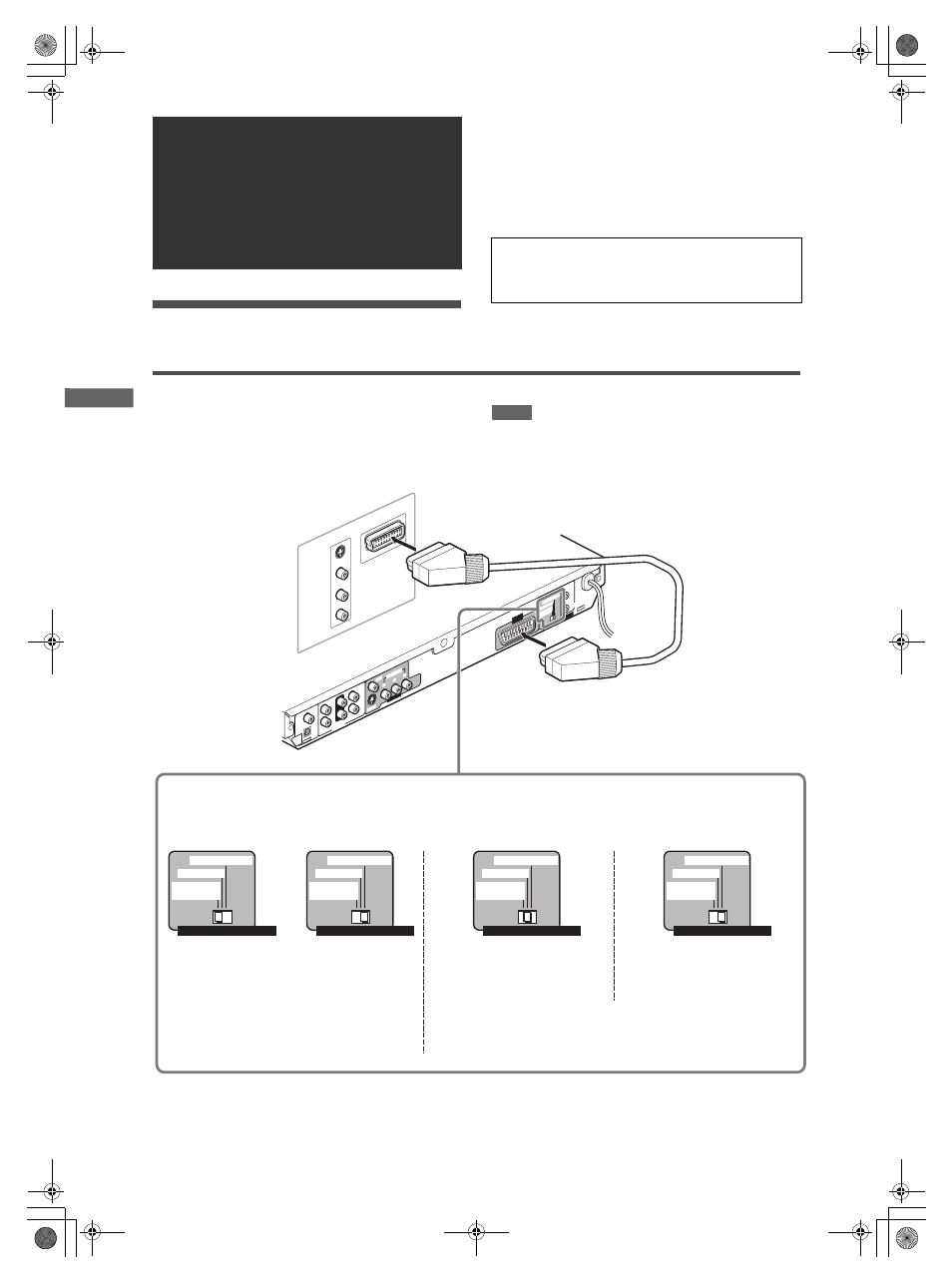

A Connecting to a TV with the SCART connector
You can enjoy using the player by simply connecting it to your
television set with a 21-pin SCART cable.
NOTE
When you connect a SCART cable, do not connect any other
cables to other video signal output jacks (VIDEO/S-VIDEO/
COMPONENT VIDEO OUT). If you do so, you will not be able to
obtain correct signals from the SCART connector of the player.
Preparations
• In the following description, “TV” may be substituted with
“monitor” or “projector.”
• Terminal names used for other components may be different
from those used in the following description.
RIGHT
LEFT
AUD IO
VID EO
S-VIDE
O
IN
IN
SUB -WO OFE R
CEN TER
RGB/COMPOSITE
RIG HT
FRO NT
SUR ROU ND
LEF T
COA XIA L
OPT ICA L
PCM /
STR EAM
DIGIT AL
OUT
AU DIO OUT
VID EO
S-V IDE O
Y
P B
P R
AV COMPU LINK
COM PON ENT
/CO MPO SITE
S-VIDEO Y/C
VIDEO OUT
COMPONENT
VIDEO SIGNAL SELEC
TOR
AV OUT
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
COMPONENT
/COMPOSITE
S-VIDEO Y/C
RGB/COMPOSITE
VIDEO SIGNAL SELECTOR
• If your TV only accommodates the composite
video signal:
Set the selector to “COMPONENT/COMPOSITE”
or “RGB/COMPOSITE.”
The player
SCART cable (not supplied)
Setting the VIDEO SIGNAL SELECTOR
When you connect the player to a TV with the SCART connector, set the VIDEO SIGNAL SELECTOR correctly
according to your TV.
or
• If your TV accommodates Y/C
signals:
Set the selector to “S-VIDEO Y/C.”
• If your TV accommodates RGB
signals:
Set the selector to “RGB/
COMPOSITE.”
• If your TV accommodates both RGB and Y/C, set the selector to “RGB/
COMPOSITE.” Otherwise the p icture cannot be displayed correctly.
