PANEL DESCRIPTION
q ANTENNA CONNECTOR [ANT]
Connects a 50 Ω antenna with a BNC connector and a 50
Ω coaxial cable.
w PACKET JACK [PACKET]
Connects a TNC (Terminal Node Controller), etc. for data
communications. The receiver can support 9600 bps
packet communication (AFSK).
e USB CONNECTOR [USB]
Connects to a PC via the supplied USB cable.
• No connection is necessary when the IC-R1500’s controller is in
use.
CAUTION: NEVER insert any other object than a USB
cable, such as a metallic object, otherwise the Main unit
may be damaged.
r EXTERNAL SPEAKER JACK [EXT SP]
Connects an 8 Ω external speaker.
• Audio output power is more than 0.5 W.
t CONTROLLER [CONTROLLER]
Connects to a controller via an extension cable.
• No connection is necessary when the control software is in use.
CAUTION: NEVER insert any other object than the con-
troller cable, such as a metallic object, otherwise the
Main unit may be damaged.
y POWER JACK [DC IN]
Accepts 12 V DC ±15% via the supplied DC power cable.
u GROUND TERMINAL [GND]
Connect this terminal to a ground.
Front
Top
Rear
Power switch
Speaker
q w e r
u
y t
2-conductor 3.5 (d) mm ( 1 ⁄ 8 ˝)/100 k Ω
PACKET jack connection
2-conductor 3.5 (d) mm ( 1 ⁄ 8 ˝)/8 Ω
EXT SP jack connection
AUDIO
GND
AUDIO
GND
■

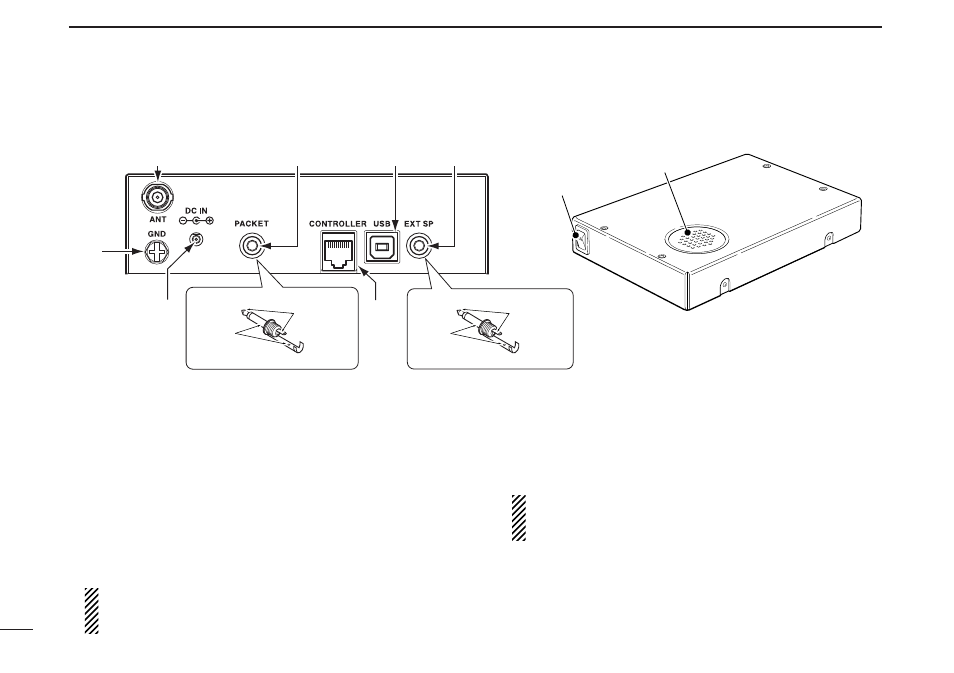

Rear panel—main unit
