Adjusting Footrest Height
NOTE: For this procedure, refer to FIGURE 3.
1. Remove the front rigging assembly. Refer to Installing/Removing the Front Rigging
Assembly on page 3.
2. Remove the hex screw and coved spacer.
3. Move the footrest with slide tube up or down on its mounting tube until the desired
footrest height is achieved.
4. Install the hex screw and coved spacer through the front rigging upper support and
the slide tube. Securely tighten.
5. Install the front rigging assembly. Refer to Installing/Removing the Front Rigging
Assembly on page 3.
6. Repeat STEPS 1-5 for the other side, if necessary.

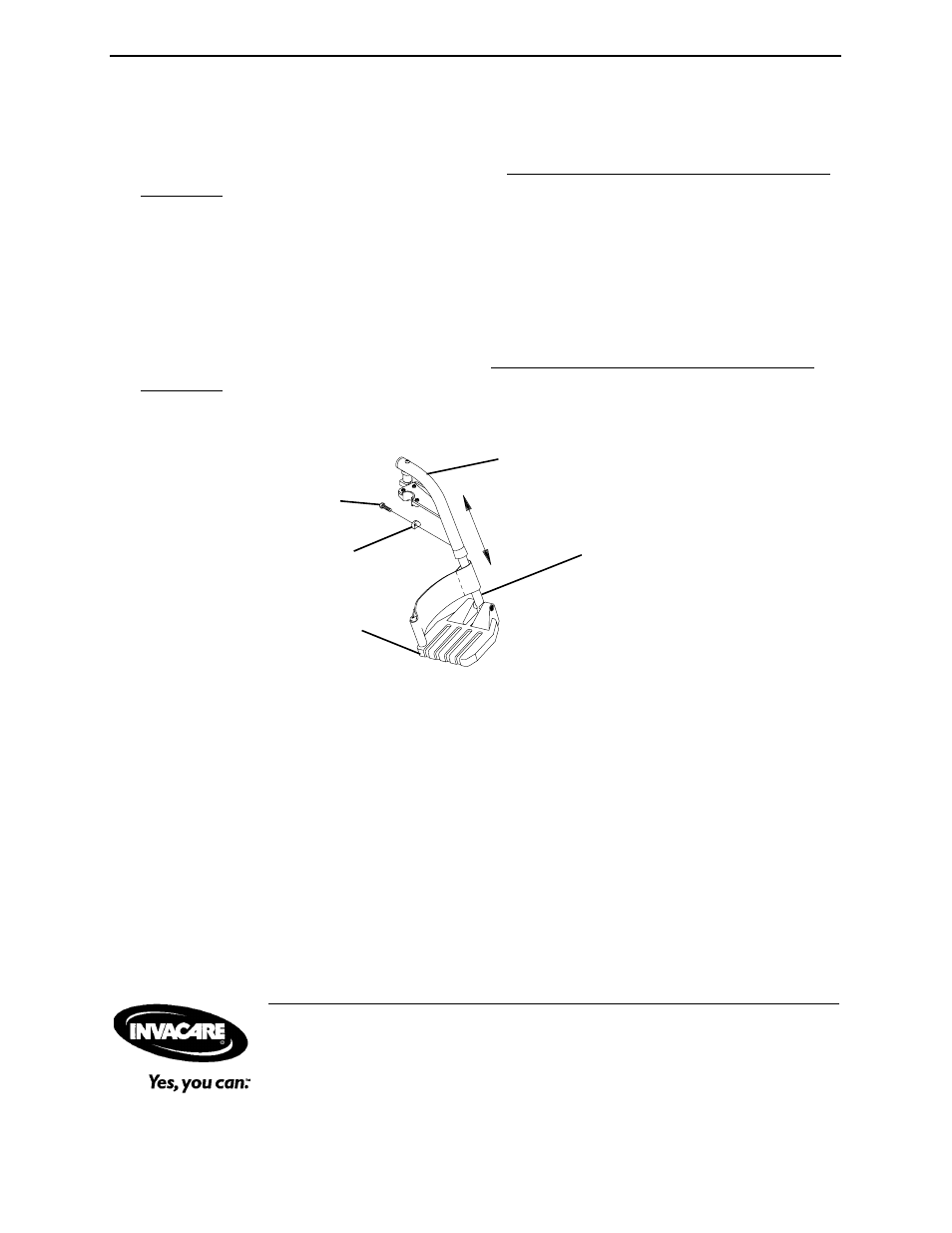

FIGURE 3 Adjusting Footrest Height
Footrest
Slide Tube Coved Spacer
Hex Screw
Front Rigging
Upper Support
