3 ◆ Compositions Overture OVTR 1 – Owner’s Manual
S
TEREO
P
LACEMENT
...
Figure 1. Compositions Overture OVTR 1
speakers can be positioned vertically or
horizontally for placement on a shelf
or stand. Make sure the side-firing woofer is
at least 2" away from an adjacent object,
shelf, or wall.

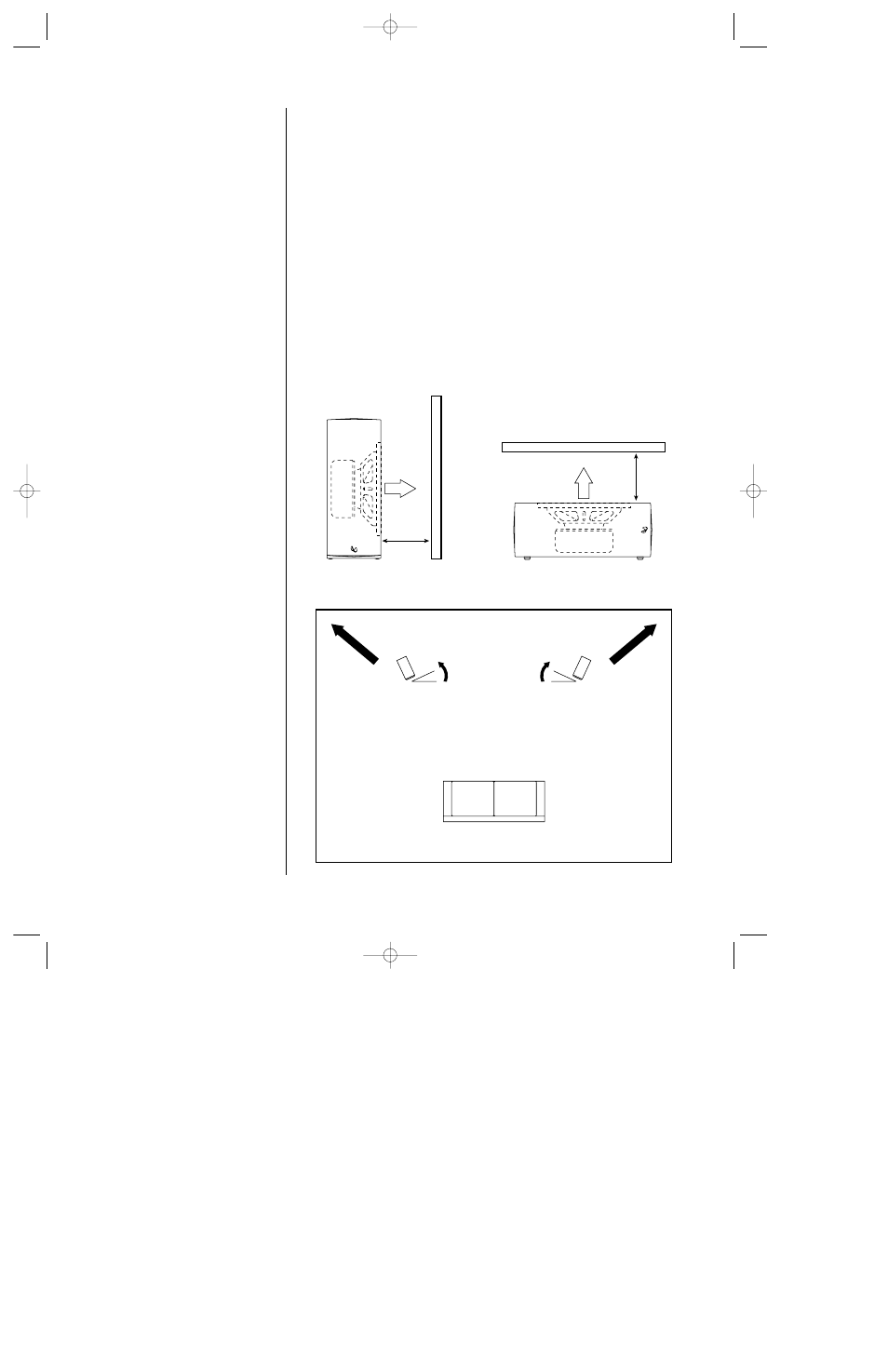

Figure 2. Experiment with speaker
placement to obtain the best bass level
and stereo imaging in your room.
P
LANNING
Y
OUR
S
YSTEM
Before deciding where to place your Compositions Overture OVTR 1 speakers, survey your
room and keep the following points in mind:
◆ The OVTR 1 includes a side-firing woofer that requires a minimum 2" (25mm) clearance
from an object, shelf, or wall, whether placed vertically or horizontally, on a bookshelf or
stand (see Figure 1).
NOTE: The stand must be large enough to fully support the speaker.
◆ For vertical placement, make sure the woofers are facing toward or away from each other.
For stability, install the enclosed feet (see Installing Feet and Grilles on page 5).
◆ For best results, try placing the speakers closer together than the distance to the listening area.
◆ Refer to Figure 2 when placing speakers for best bass level and stereo image (also see
Operating The System on page 7).
Listening Area
Left
Channel
Right
Channel
angle speakers
inward to
improve stereo
imaging
move speakers towards corners to increase bass
Vertical OVTR 1
side-firing
woofer
2 " (min.)
2 " (min.)
Wall or
Other Object
Shelf or Other Object
side-firing
woofer
Horizontal
OVTR 1
