GEM0650/0956/1256 A/W R&R-Fan Blade and Motor
Page 31

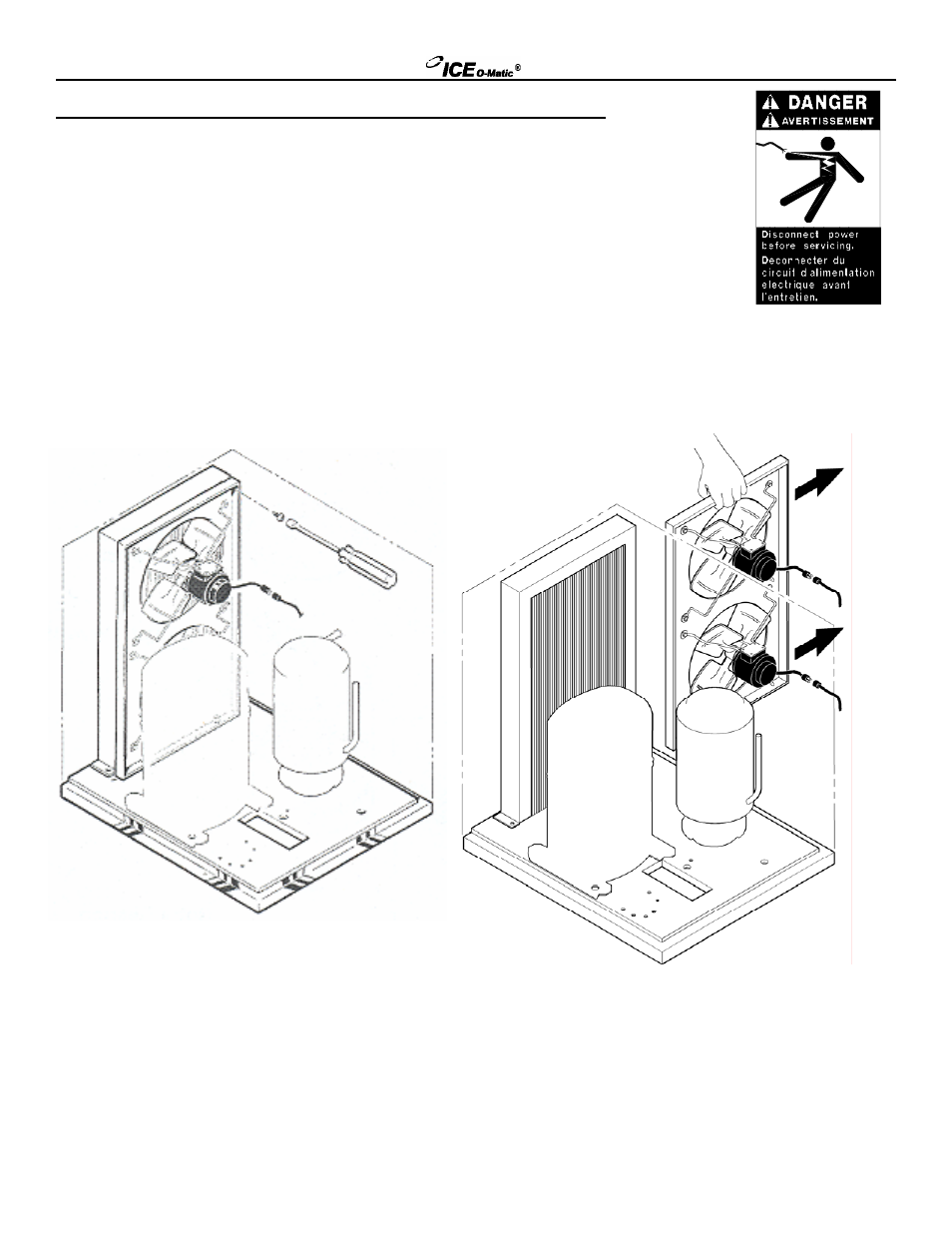

To Remove the Condenser Fan Motor Assembly: (GEM0956 Shown)
1. Disconnect electrical power to the ice machine
2. Remove top panel and the service panels.
3. Unplug the fan motor wire leadsfrom the fan motors.
4. Remove the two (2)head bolt from the top end of the fan motor assembly. (Fig 1)
5. Lift up the fan motors and bracket assembly about 1⁄2 inch and pull out the fan
assembly out the right service access hole. (Fig 2)
6. Repair as needed.
7. To Reassemble: Place the fan motor assembly lower flange holes over the two Allen
head cap screws in the base, and install the hex head boltsat the top of the assembly.
Plug the fan motors back in and replace the panels.
Fig.1 Fig. 2
