Ice-O-Matic GEM0650A/W User Manual
Page 18
GEM0650/0956/1256 A/W
Component Description
Page
12
●Contactor:
A definite purpose contactor connecting the compressor and the fan motor to the power supply.
●Circuit Board:
Controls the operation of the ice machine using input from the sensors and pressure controls.
Switches loads on and off thru relays. (Reference Photo Below)
●Potential Relay:
The compressor start relay.
●Mode (ON/OFF) Switch:
Manual control for the machine.

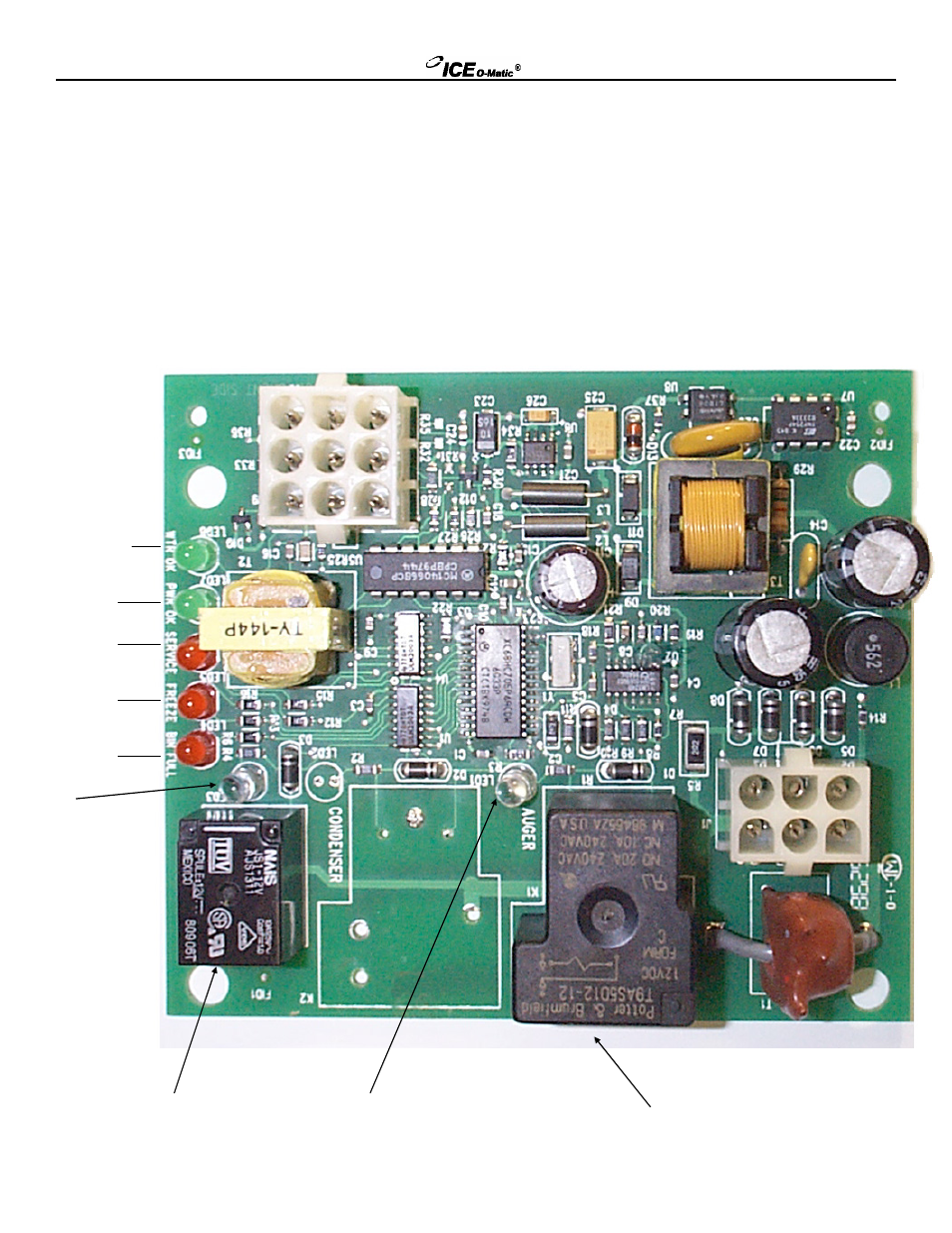

Control Board
Water OK Light
Power Light
Service Light
Freeze Light
Bin Full Light
LED3
LED1
Compressor Relay
Auger Relay
