Page 11
SECTION 2—ASSEMBLY
11
Attach the Horn to the Mast and
Actuator
NOTE: For this procedure, refer to FIGURE 2.2.
1.
Align the horn bushing with the holes in the horn
mounting lugs on the mast.
2.
Attach the horn to the mast with a shoulder bolt, two steel
washers, two nylon washers and a locknut.
NOTE: The nylon washers MUST be installed between the horn
bushing and horn mounting lugs.
3.
Align the holes in the actuator cylinder rod with the
holes in the cylinder mounting lugs on the horn.
4.
Attach the actuator cylinder to the horn with a shoulder
bolt and locknut.
Check for proper hardware alignment
CAUTION
The horn MUST pivot easily.
1.
At the attachment point of the horn to the mast assembly,
use an Allen wrench to hold the locknut and turn the
shoulder bolt by hand (it should rotate without a lot of
force being applied).
2.
Raise the horn.
3.
Push the control handle away from the pump assembly.
4.
If the horn pivots easily, tighten the shoulder bolt and
locknut.
NOTE: If the horn does not pivot easily or not at all, remove the
locknut and shoulder bolt. Check all hardware for proper
alignment. Reinstall hardware and repeat STEPS 1‐4. If alignment
problems continue, contact the Technical Support Department at
Invacare.

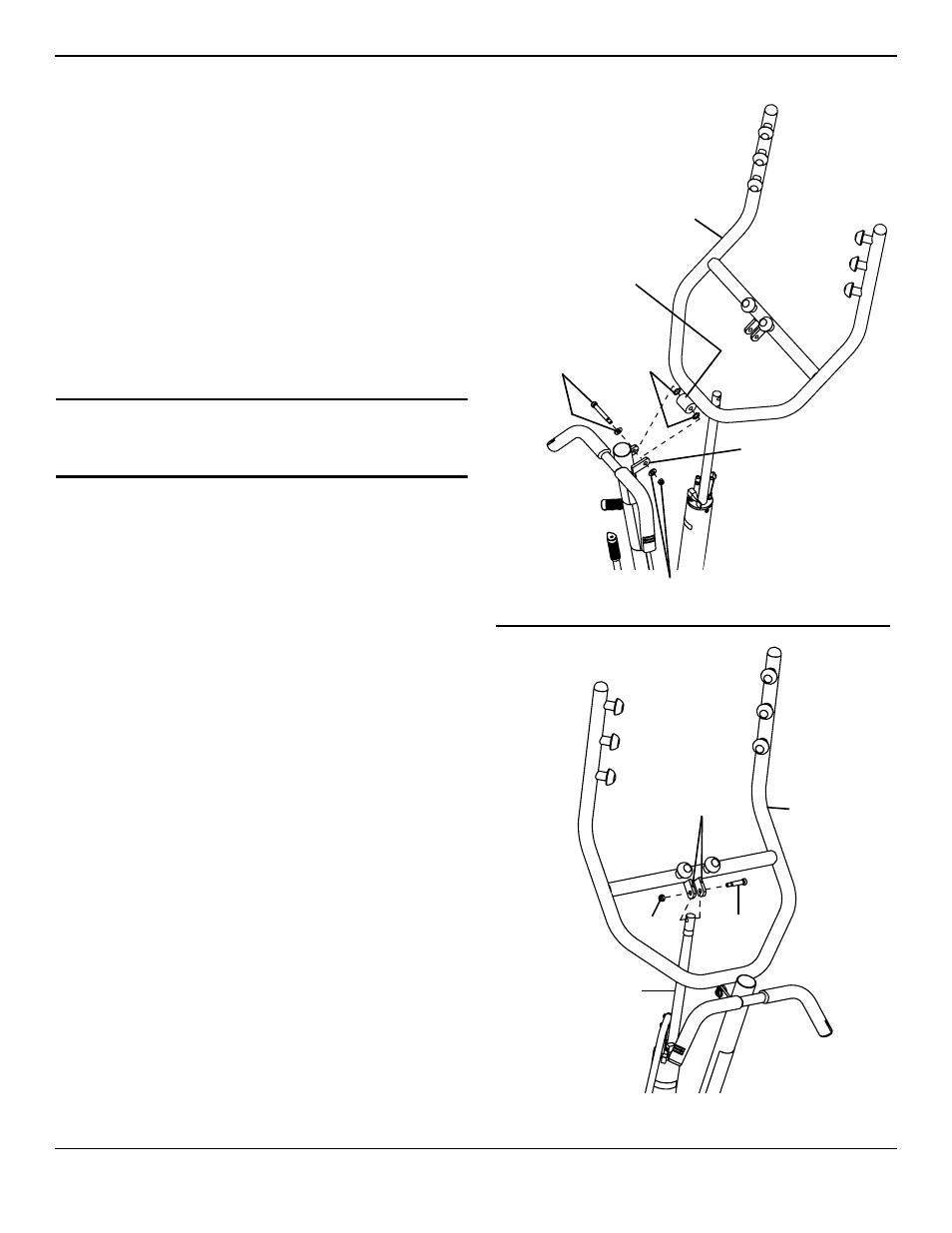

FIGURE 2.2 Attach the Horn to the Mast and Actuator
Horn
Locknut
Actuator
Cylinder Rod
Cylinder Lugs
Shoulder
Bolt
Horn
Shoulder Bolt
and Steel
Washer
Locknut and
Steel Washer
Horn Bushing
Nylon
Washers
Horn Mounting Lug
(1 of 2)
