16
Insignia NS-P8DVD 8.5" Portable DVD Player
www.insigniaproducts.com

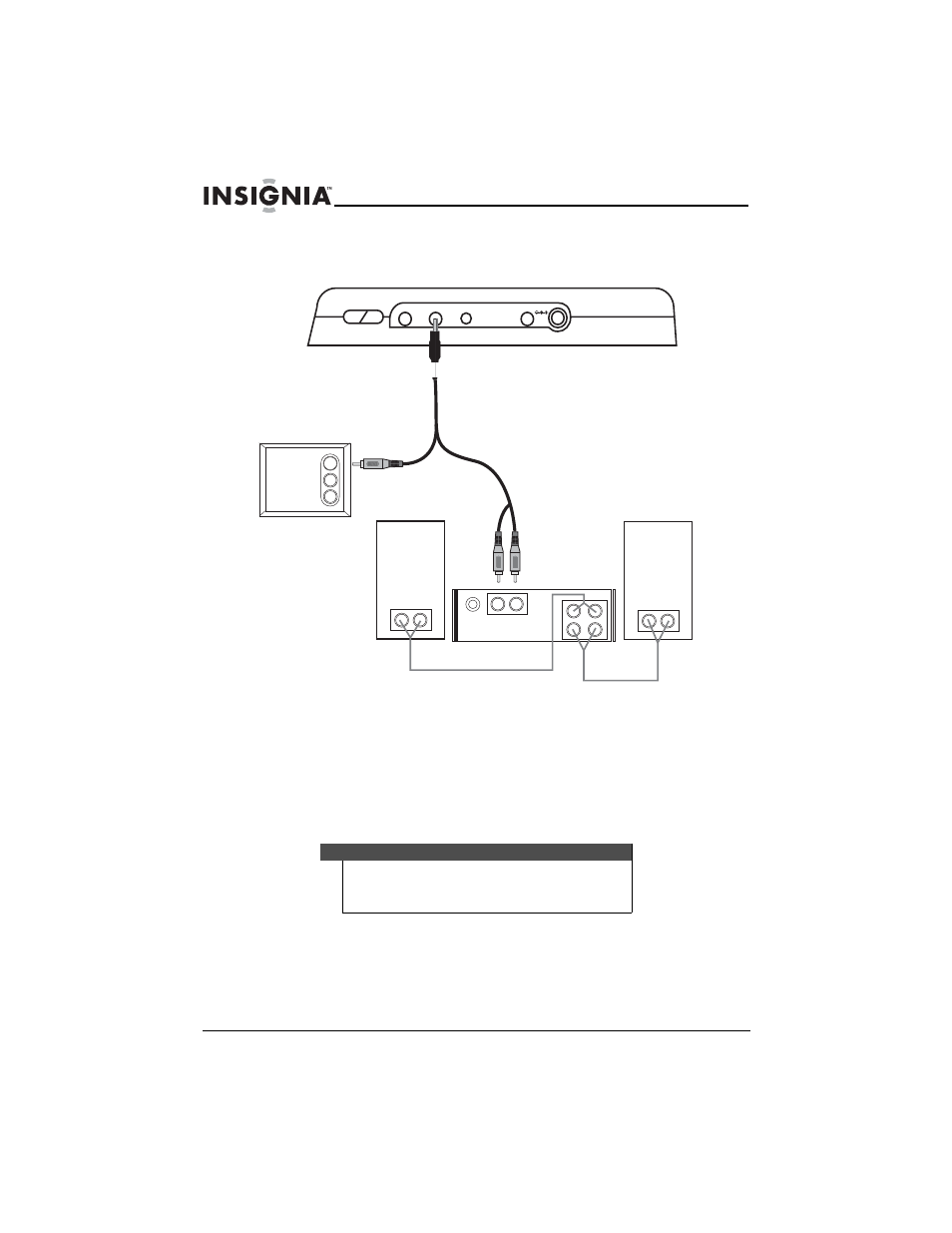

Connecting a TV and amplifier
To connect a TV and amplifier:
1 Plug the mini AV connector into the AV OUT jack on the right side of
your player.
2 Plug the yellow connector into the VIDEO IN jack on the TV.
3 Plug the red connector into the AUDIO IN R jack on the amplifier.
4 Plug the white connector into the AUDIO IN L jack on the amplifier.
Note
If your amplifier has a coaxial digital input jack, you can connect
your player to your amplifier using the COAXIAL OUT jack on
your player.
AV OUT AV IN COAXIAL DC IN 9V PHONE-3
VIDEO IN
AUDIO IN R
AUDIO IN L
OPNCAL
LINE IN
SPEAKWRS
R L
R L
TV
R-Speaker
L-Speaker
Right side of player
Amplifier
