Step Five

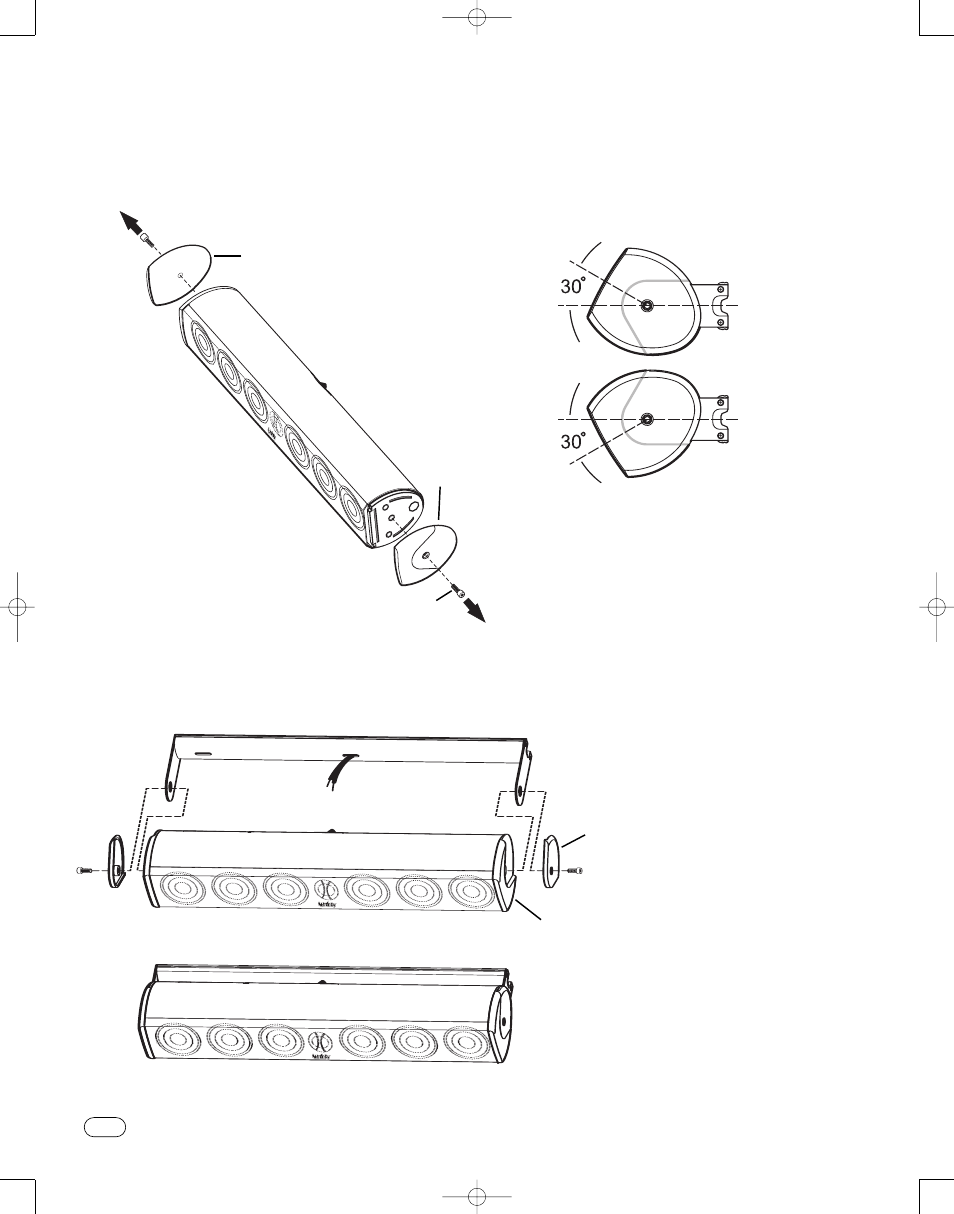

Connect the wires (page 5). Replace the end caps while
capturing the wall bracket between parts A and B of the
end cap, securing it in place.
Wall-Mount
End Cap A
Wall-Mount
End Cap B
Step Four
Using the included Allen wrench, remove the top and bottom
end caps of the speaker by unscrewing the single center screw
on bottom.
End Cap
1/4-20 x 3/4"
Screw
End Cap
Step Six
The wall-bracket design allows for rotation of the speakers
at angles up to 30 degrees of center. Position the speakers
so they face toward the primary listening position, before
fully tightening.
