Insignia NS-15CLTV 15" Combo DVD/LCD TV
www.insignia-products.com
Features
Accessories
Make sure that the following accessories are
provided in the packaging:
•
Remote control
• User Guide
• Warranty card
• 2 AAA batteries
• Power adapter

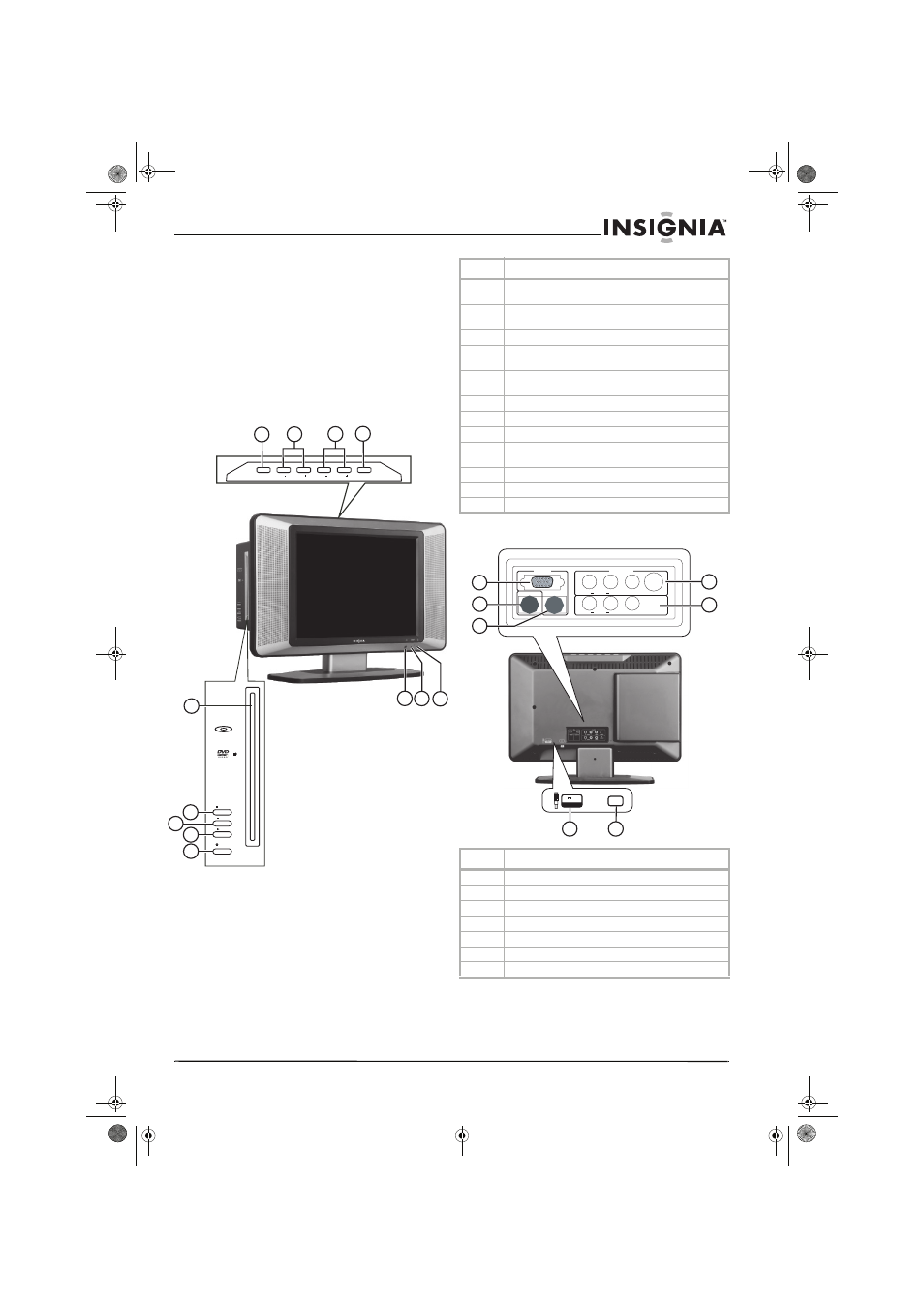

Front view
Rear view
6
3
VOL POWER CH I N P U T VOL CH
OPEN/
CLOSE
STOP
PLAY
PAUSE
o n l y 12c m
8 7
1
2
4
5
10 9 11 12
Item Description
1 Disc slot. Insert a DVD or CD to change to DVD mode
and play the disc.
2 PAUSE button. Press to pause disc playback while in
DVD mode.
3 STOP button. Press to stop disc playback.
4 PLAY button. Press to change to DVD mode and begin
disc playback.
5 OPEN/CLOSE button. Press to eject the disc currently in
the disc slot.
6 IR sensor
7 Standby Indicator LED
8 Power Indicator LED
9 Input button. Press to select the AV signal input between
TV, AV, S-Video, DVD, and PC.
10 CH+/- buttons. Press to change the channel.
11 Volume +/- buttons. Press to change the volume.
12 Power button
Item Description
1 VGA INPUT (PC input) port
2 Headphone jack
3 VGA INPUT AUDIO (PC audio input) jack
4 DC power input connector
5 RF Antenna connector
6 AV OUTPUT (composite video and L/R audio out) jacks
7 AV IN (composite video, S-Video, and L/R audio) jacks
S-VIDEO PHONES AUDIO INPUT L R AUDIO
A V
OUTPUT
VIDEO
VIDEO
A V INPUT
L R AUDIO
VGA
R F DC 12V 3A
INPUT
1
2
3
5 4
6
7
