Remove the Swivel Bar
ƽ WARNING
Invacare slings and patient lift accessories are specifically designed to be used in conjunction with
Invacare patient lifts. Slings and accessories designed by other manufacturers are not to be uti-
lized as a component of Invacare’s lift system.
NOTE: For this procedure, refer to FIGURE 1.
NOTE: The Reliant Scale cannot be used in conjunction with the swivel bar supplied with the Invacare 9805 Lift.
The Reliant Swivel Bar (Part No. 1064518) MUST be purchased and installed on the Invacare 9805 lift in order
to install the Reliant Scale.
1. Perform one of the following:
• For 450 lbs and 600 lbs Reliant Lifts ‐ Remove shoulder bolt, locknut, pinch guard and washer
which secure the swivel bar to the boom mounting bracket.
NOTE: Save the shoulder bolt and locknut to secure the Reliant Scale to the boom. The pinch guard will not
be used when the scale is installed. Save pinch guard for future use of swivel bar without scale.
• For Model No. 9805 Lift ‐ Remove shoulder bolt and locknut which secure the swivel bar to the
boom mounting bracket.
NOTE: Save the shoulder bolt and locknut to secure the Reliant Scale to the boom.
NOTE: Removing the swivel bar hardware will release the swivel bar, two nylon washers and the swivel bar pin.
Save the swivel bar pin and the two nylon washers for future use of the swivel bar without the scale.

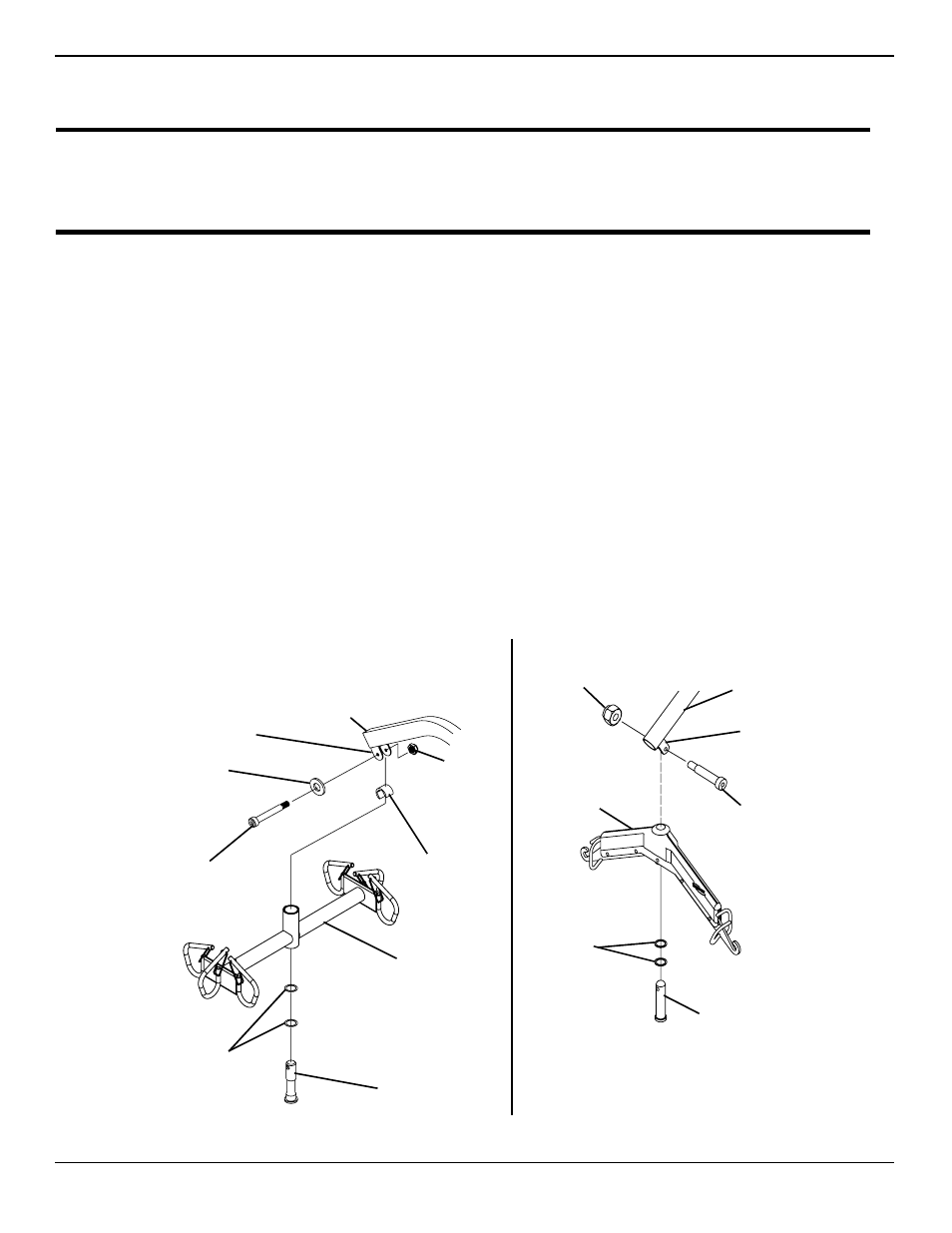

FIGURE 1 Remove the Swivel Bar
DETAIL “A” - 450 LBS / 600 LBS RELIANT LIFTS
*NOTE: 600 lift swivel bar not shown.
Boom Mounting
Bracket
Locknut
(Save for
installing
Scale)
Boom
Pinch
Guard
Shoulder Bolt
(Save for
installing
Scale)
Washer
(Save for
installing
Scale)
Nylon
Washers
Swivel Bar Pin
*450 lbs
Swivel Bar
Swivel Bar
Boom
Shoulder
Bolt
(Save for
installing
Scale)
Locknut
(Save for
installing
Scale)
DETAIL “B” - 9805 LIFT
Boom
Mounting
Bracket
Swivel Bar Pin
Nylon
Washers
NOTE: Some hardware has been
enlarged for clarification purposes.
