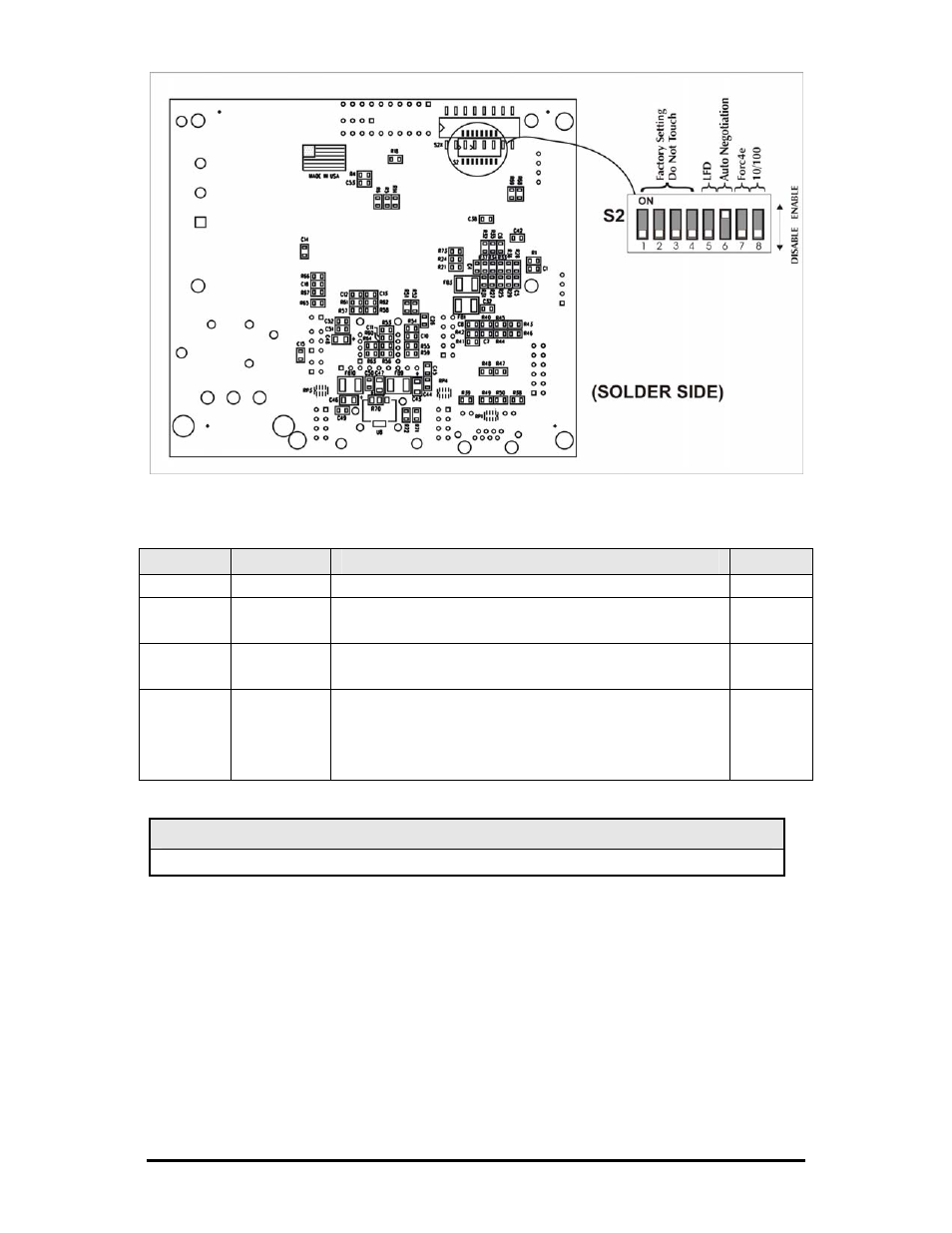

The table below shows the DIP Switch settings for McPC 10/100:
Feature Switch # Function Default
LFD 5 Link Fault Detection (Available in Force modes only) OFF
AN 6
Auto Negotiation Mode (Valid only when Force mode
is disabled)
ON
Force 7
Force Mode – Forces the converter to operate at 10 or
100 Mbps as determined by switch 8
OFF
10/100 8
Valid only when switch 7 is ON.
When ON, the converter operates at 10 Mbps. When
OFF, the converter operates at 100 Mpbs. 8 is only
valid in Force Mode, i.e. when switch 7 is ON
OFF
NOTE
Switch #'s 1 – 4 are factory configured – DO NOT CHANGE
