LED Indicators (ISA Version)

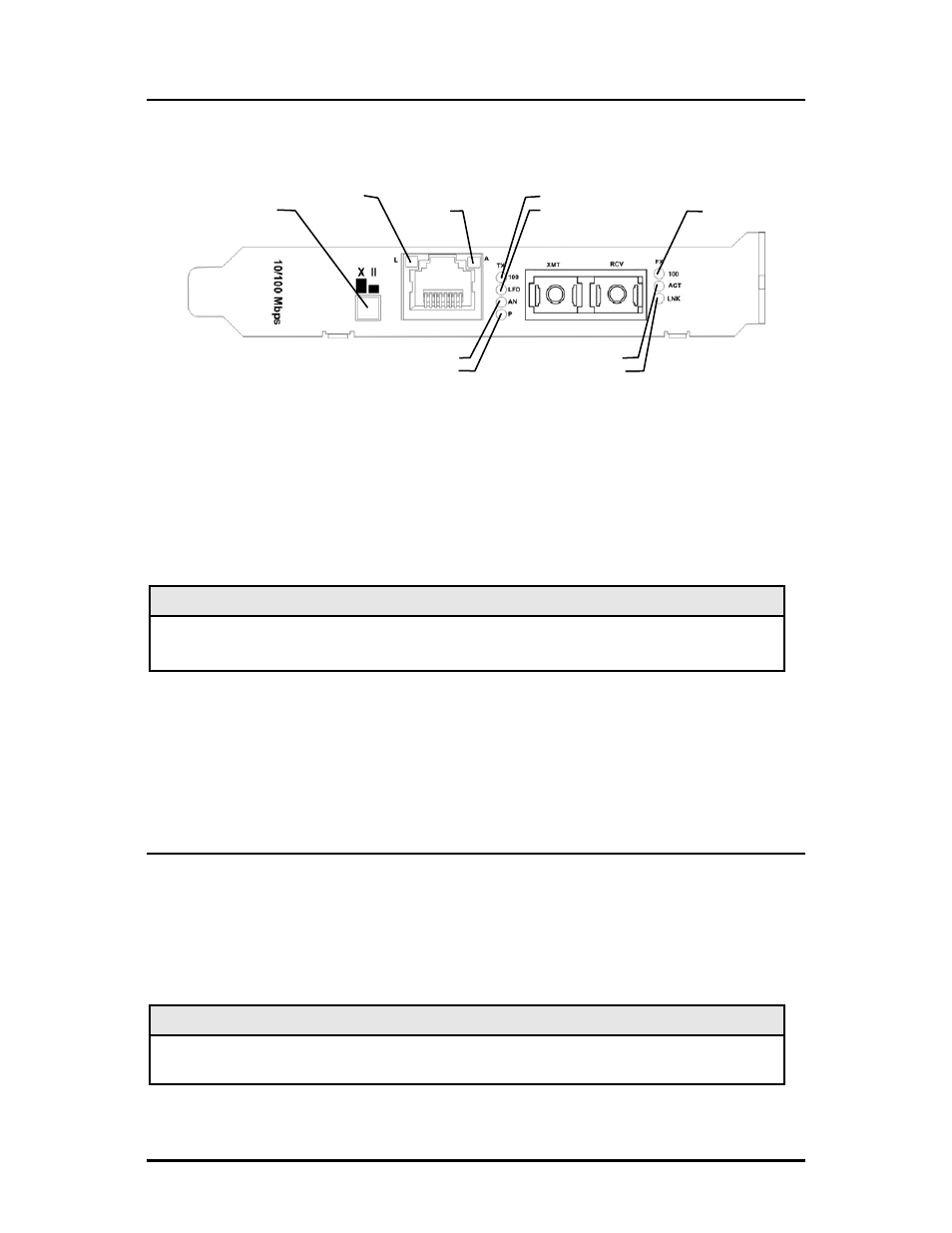

The McPC 10/100 features four diagnostic LEDs. The following are the LED functions
on the twisted pair port:

Crossover/Pass- TX Link TX 100 Mbps Activity LED

Through Switch

TX Activity Link Fault Detection LED FX 100 Mbps

Active LED

Auto Negotiation Activity LED FX Activity

Power Link LED FX Link LED



Twisted Pair Port

P

Green when the unit has power

AN

Green when Auto Negotiation mode is enabled

LFD

Green when Link Fault Detection is enabled

100

Yellow when a 100 Mbps connection is detected

NOTE

This feature is only available when either Force 10 or Force 100 mode is enabled.
For more on this feature, see the Link Fault Detection LED Activity section, below.


Fiber Port

LNK

Green when a twisted pair link is established

ACT

Yellow when activity is detected on the port

100

Yellow when a 100 Mbps connection is detected

Link Fault Detection LED Activity (ISA Version)
When LFD is enabled and a fault occurs on a segment of the media conversion, the
various Link LEDs in that conversion will either blink or extinguish. LEDs may react
differently depending on the type of end devices in the conversion, whether the
McPC 10/100 is in Force 10 or Force 100 mode, where the fault occurs, etc. For
questions, please contact Technical Support.

NOTE

Twisted pair AND fiber optic cables must be connected, and the twisted pair

crossover/pass-through switch set correctly, before either LNK LED will glow solid.
