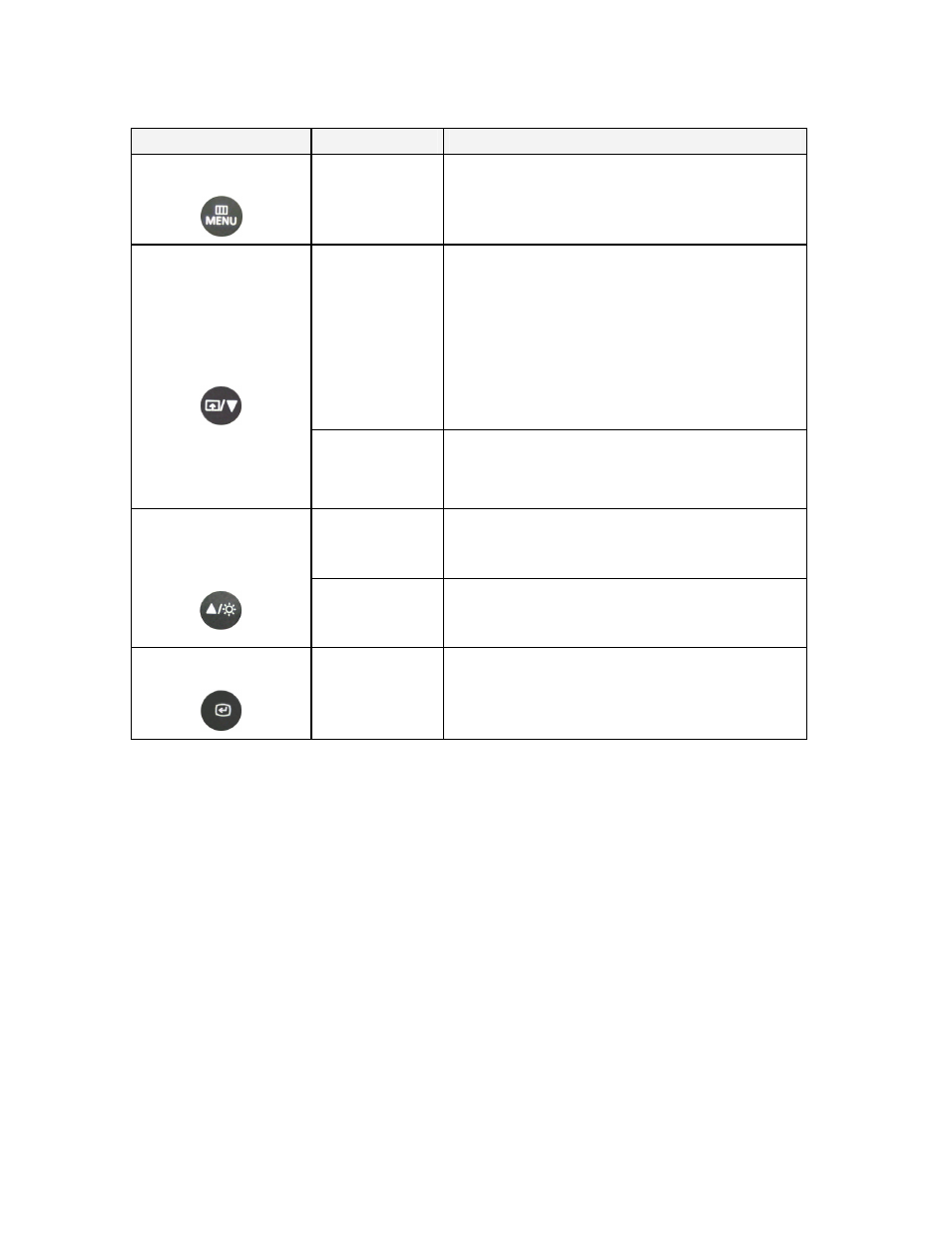

Control Panel Buttons and Indicators

Control Panel Button

Mode

Description

OSD Menu

Always

Opens the On-Screen Display (OSD) menu. Also
used to exit the OSD menu or to return to the pre-
vious menu.

When the OSD

Menu is NOT

Displayed

Performs a custom function selected by the user.

To configure the customized function:

OSD Menu > Setup > Customized Key

Select from one of three custom functions:

MagicBright

MagicColor

Color Effect

Customized Key/

Down

When the OSD

Menu is Being

Displayed

Scrolls down and adjusts items in the menu
DOWN.

When the OSD

Menu is NOT

Displayed

Push to adjust brightness.

Up/Brightness Adjust

When the OSD

Menu is Being

Displayed

Scrolls up and adjusts items in the menu

UP.

Enter

When the OSD

Menu is Being

Displayed

Activates a highlighted menu item.
