Connecting

the

Multi-Burner

using

configuration

2

To

connect

the

Multi-Burner

to

your

system,

complete

the

following

procedure.

Refer

to

Figure

1-2

during

installation.

1.

Turn

on

your

computer.

2.

Using

the

USB

cable

A ,

insert

the

cable

plug

1

into

the

USB

connector

of

the

drive

while

squeezing

the

two

buttons

on

the

connector.

3.

Plug

the

standard

USB

connector

2

into

the

USB

port

of

your

computer.

4.

Using

the

USB

cable

B ,

insert

the

cable

plug

3

into

the

DC

IN

connector

of

the

drive.

5.

Plug

the

standard

USB

connector

4

into

the

USB

port

of

your

computer.

B

A

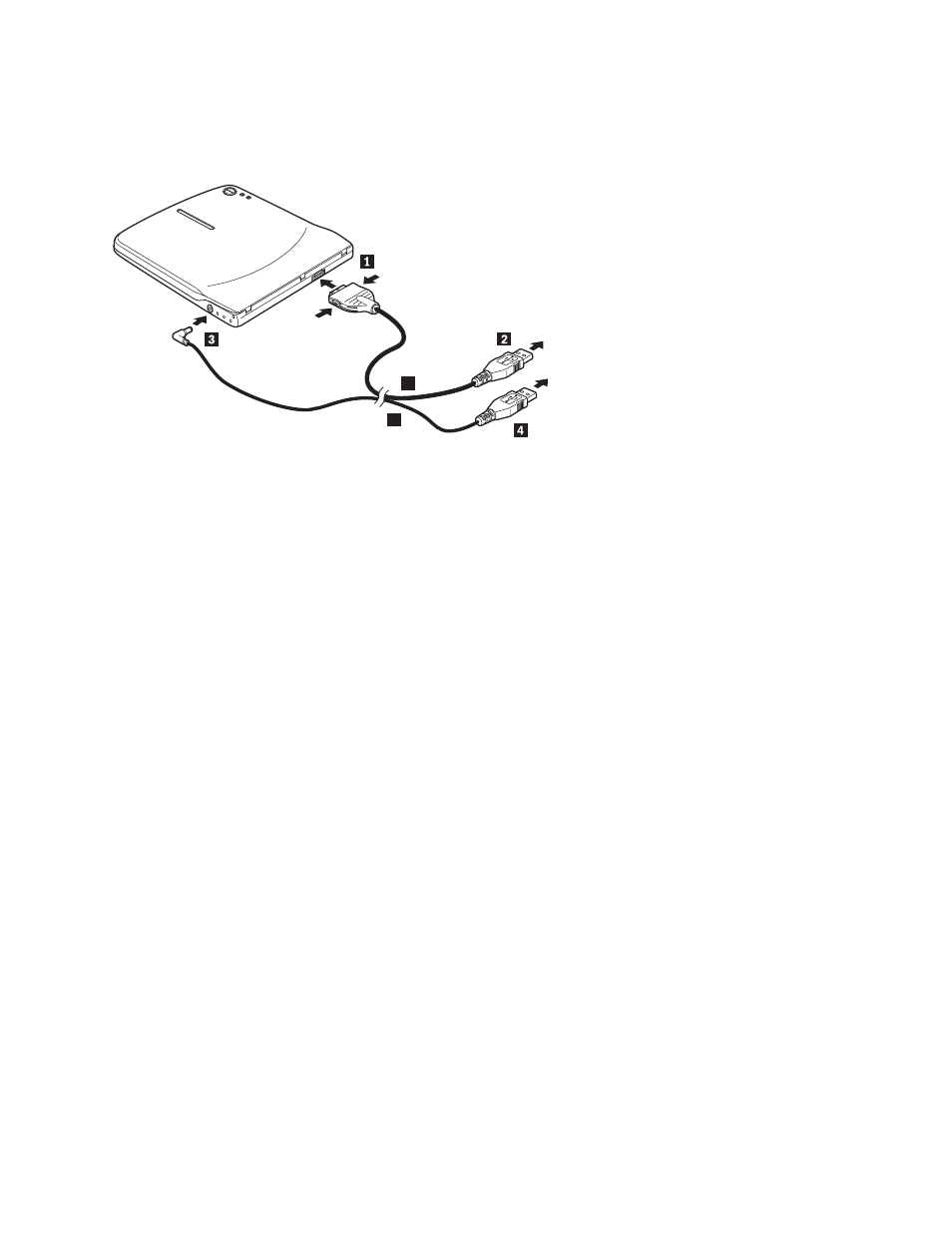

Figure

1-2.

Configuration

2:

USB

standard

bus

power

configuration

Chapter

1.

Multi-Burner

quick

install

1-5
