Media Console Cable
1 25
26 50

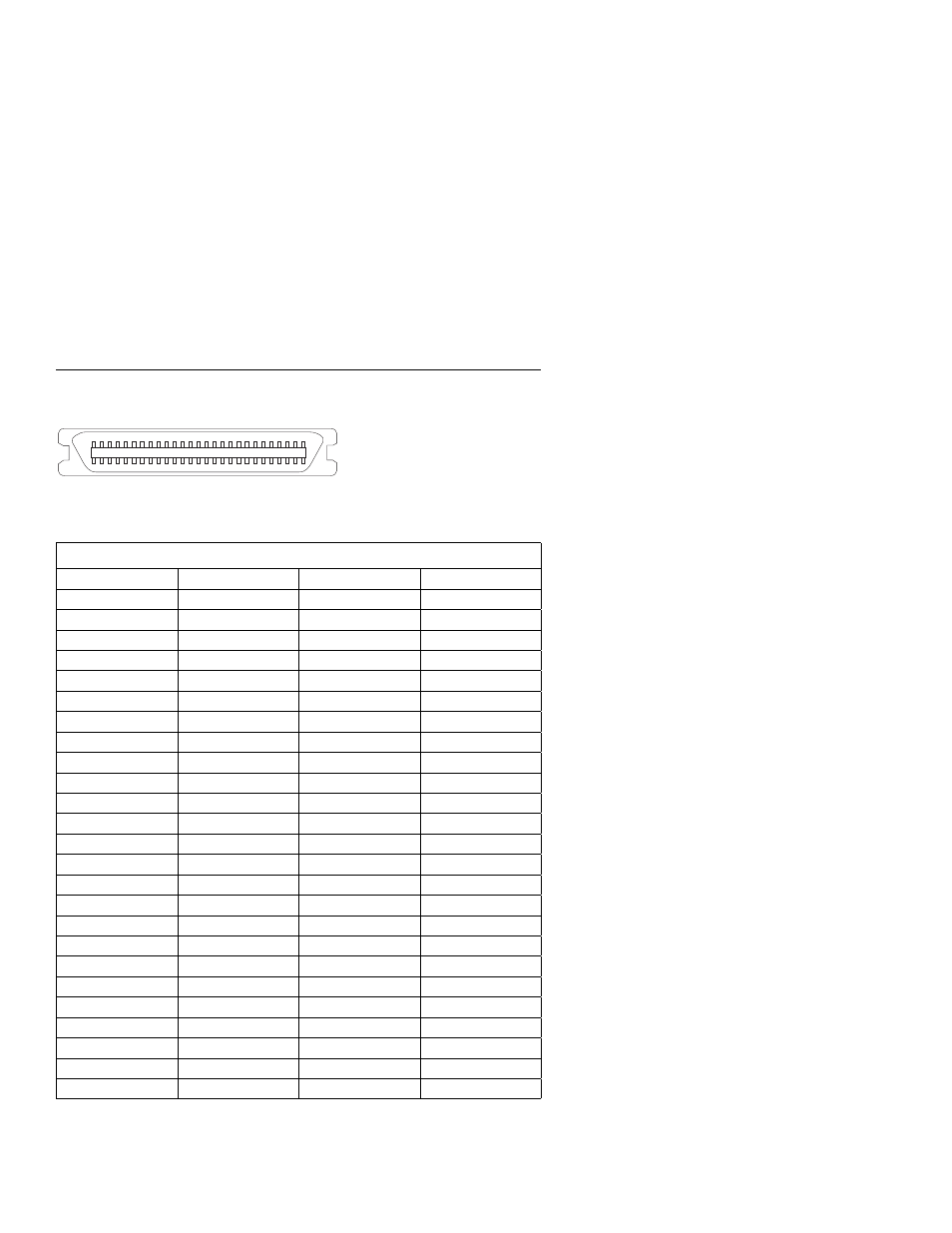

Figure 5-14. Media Console Cable Connector
Table 5-1. Media Console Pin Numbering
Pin Signal Pin Signal
1 DATA15 26 CD_AUDIO_L
2 DATA14 27 CD_AUDIO_LGND
3 DATA13 28 CD_AUDIO_R
4 DATA12 29 CD_AUDIO_RGND
5 DATA11 30 +12V_DROP
6 DATA10 31 +12V_DROP
7 DATA_9 32 +12V_DROP
8 DATA8 33 +12VDC
9 ADR_EN 34 +12VDC
10 DAT_EN# 35 +12VDC
11 R/W# 36 GND
12 IRQ_STRB# 37 GND
13 TC_BUF 38 GND
14 DRQA# 39 GND
15 DRQB# 40 GND
16 DRQC# 41 GND
17 HDD_IORDY 42 GND
18 DATA7 43 GND
19 DATA6 44 GND
20 DATA5 45 GND
21 DATA4 46 GND
22 DATA3 47 SPARE
23 DATA3 48 PWR_LED_ANODE
24 DATA1 49 AUX5
25 DATA0 50 ON_PULSE
5-16
