Detachable Monitor I/O Signal Cable Connector Test
Points
1 2 3 4 5
6 7 8 9
1
6 10
5
15 11
System board
Monitor end of cable
(on some models)

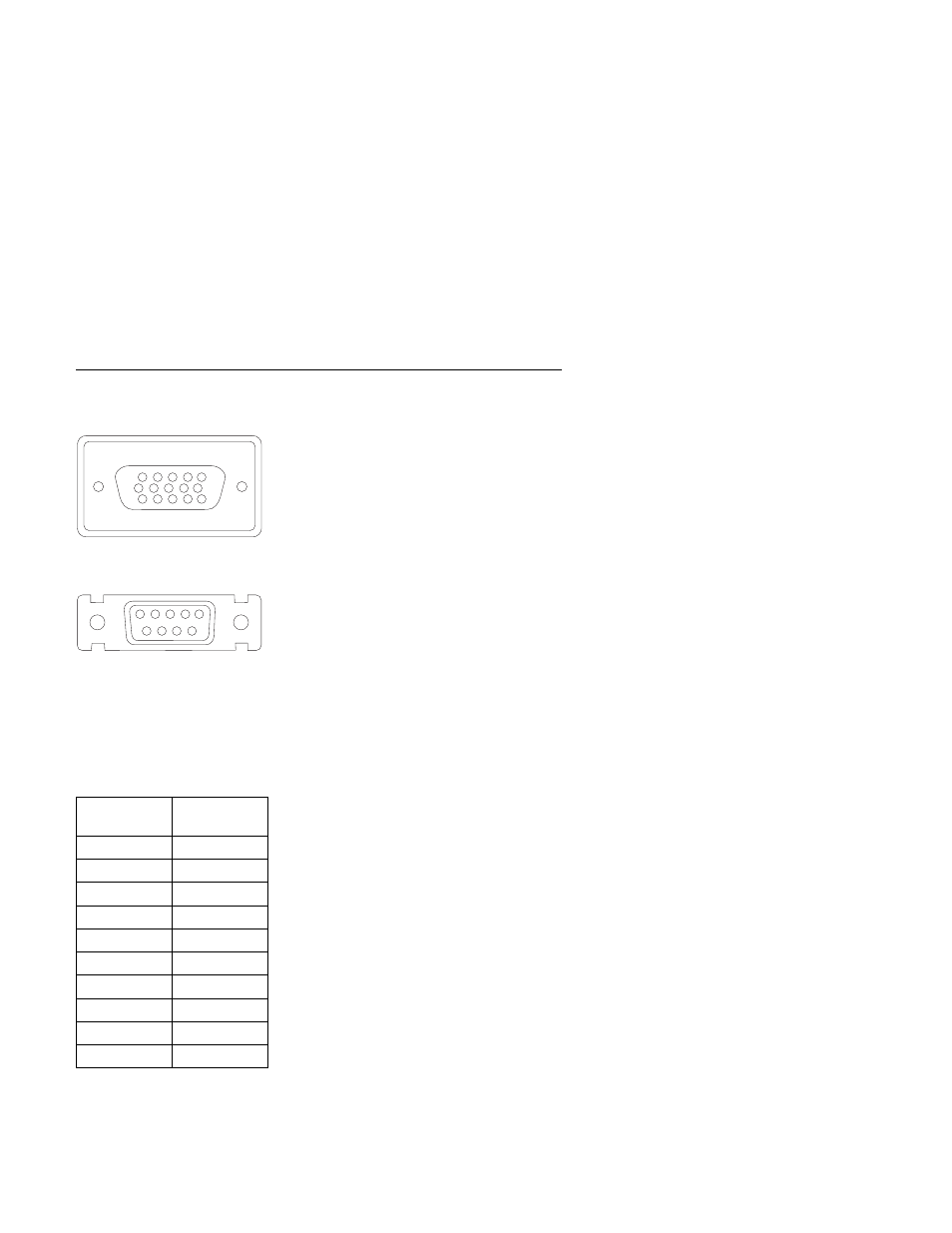

Figure 5-13. Detachable Monitor I/O Signal Cable Connectors
Test each connector between the following pins:
System
Pin Monitor
Pin
1 1
2 2
3 3
13 4
14 5
6 6
7 7
8 8
10 9
11 9
Parts/Test Point Locations 5-15
