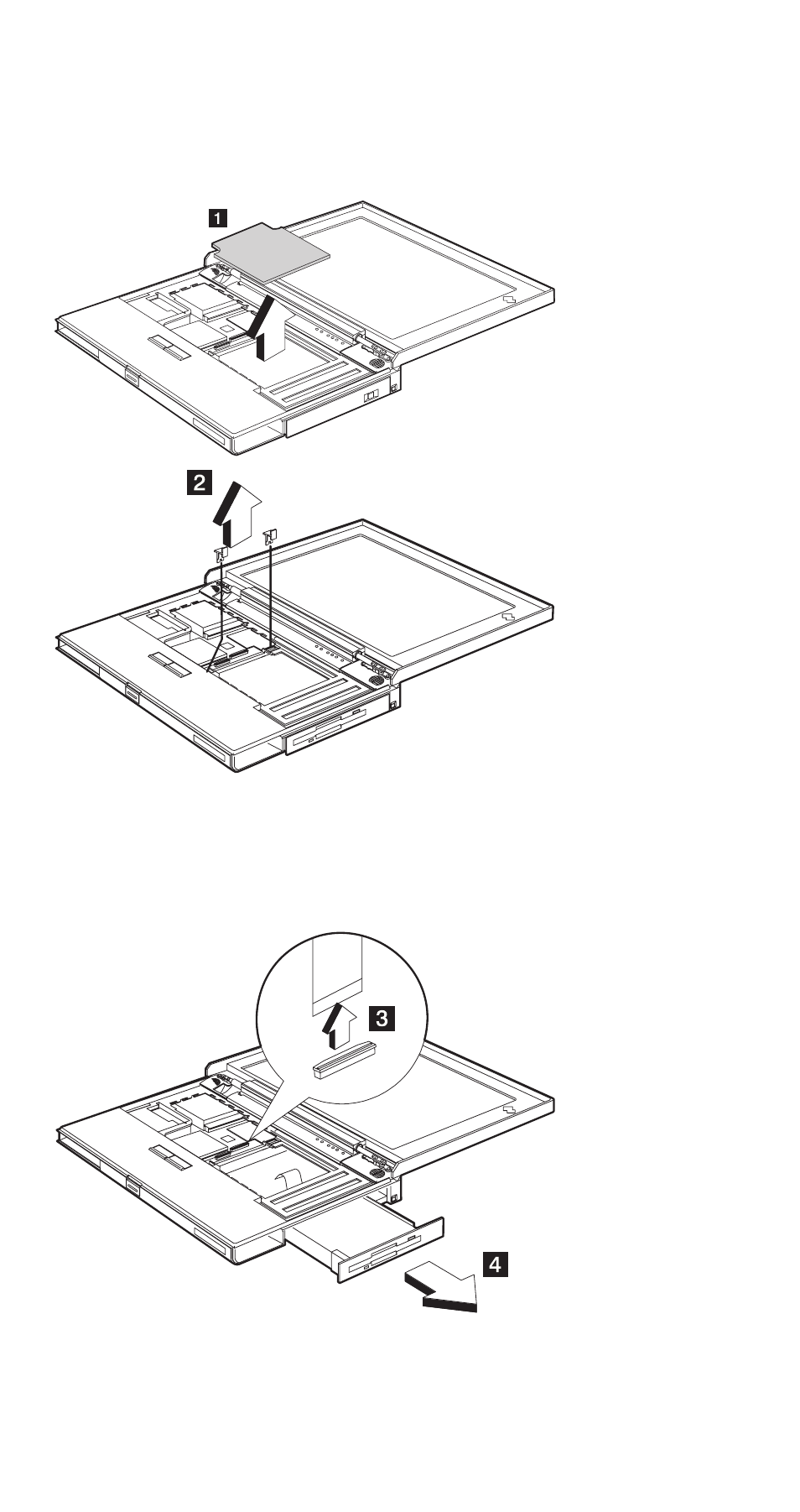

Diskette Drive/CD-ROM Drive

Hinge Covers (5)
Keyboard Unit (6)
Thermal plate / CPU (7)

Important: When removing the module locks, pull them up
at an angle. They cannot be removed when pulled straight
up.

Diskette Drive (Model Unique)

44

IBM Mobile Systems ThinkPad 310 (D/E/ED) HMM
