Connector panel

The projector provides both computer and video connection options, including:

VGA computer (2)

HDMI (1)

S-video

Composite video

Separate audio inputs for video and computer

USB DisplayLink connector, for computer audio/video input. This USB
connection also provides power out for the DisplayLink Wireless Adapter (and
mouse control when used with the optional Commander 2 remote).

The projector also provides the following connectors:

Monitor out, to provide an image on your desktop computer as well as on the
projection screen.

LAN port for network control and web server.

LitePort, for connecting a USB flash drive containing JPEG images.

Audio out, to provide sound for external speakers.

5 volt DC output

RS-232 connector for serial control. Command control codes are available on
our support website at www.infocus.com/support.

NOTE: Only VGA video is sent to the Monitor out connector.

5 volt DC output

The coaxial 6.4mm x 2.2mm jack provides a constant 5 volt, 2 amp DC output
when the projector is on, and will also provide power when the projector is powered
off, if Network and DisplayLink items in the Always-On Functions submenu are set
to Yes. It is designed to provide power to an InFocus LiteShow II wireless device or
InFocus DisplayLink Extender device.

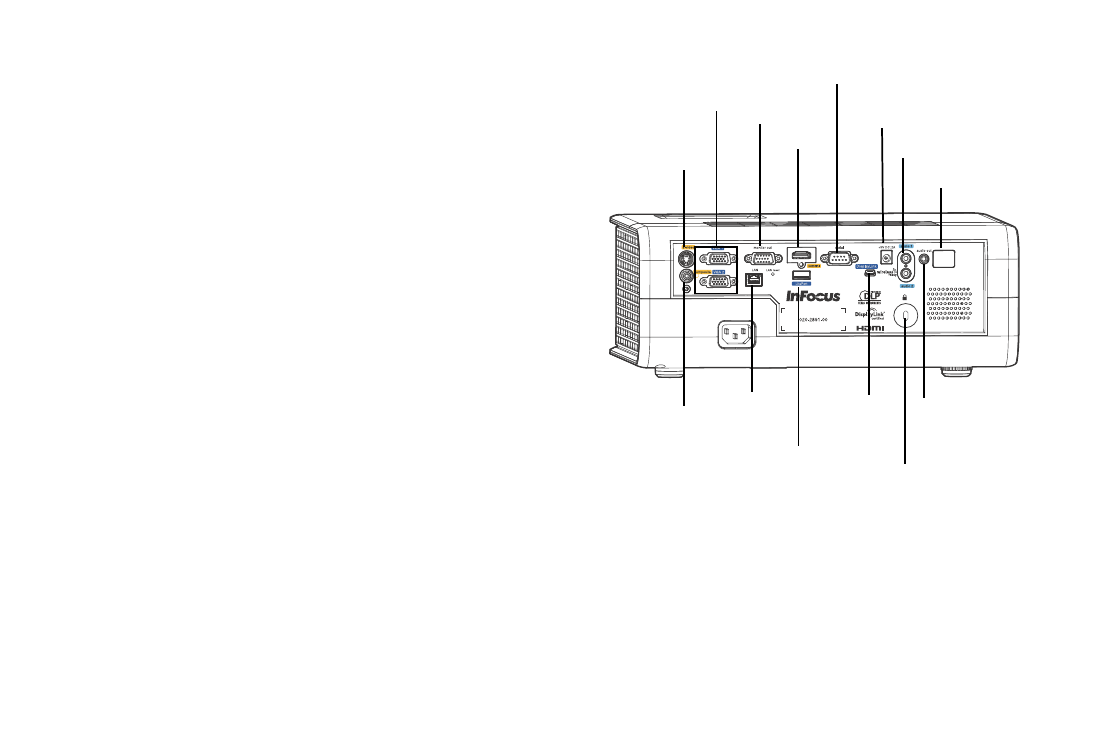

IR Sensor

S-video

Monitor out

VGA

Displaylink
connector

RS-232

Composite
video

Security lock

Audio in

HDMI

LAN

Liteport

5V DC
output

Audio out
