Removing a PCI Express x16 Card
Follow these instructions to remove a PCI Express x16 card from a connector:
1. Observe the precautions in "Before You Begin" on page 25.
2. Remove the screw (Figure 21, A) that secures the card’s metal bracket to the
chassis back panel.
3. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 21, B) in the notch. This will release the card from the connector (C).
4. Pull the card straight up.

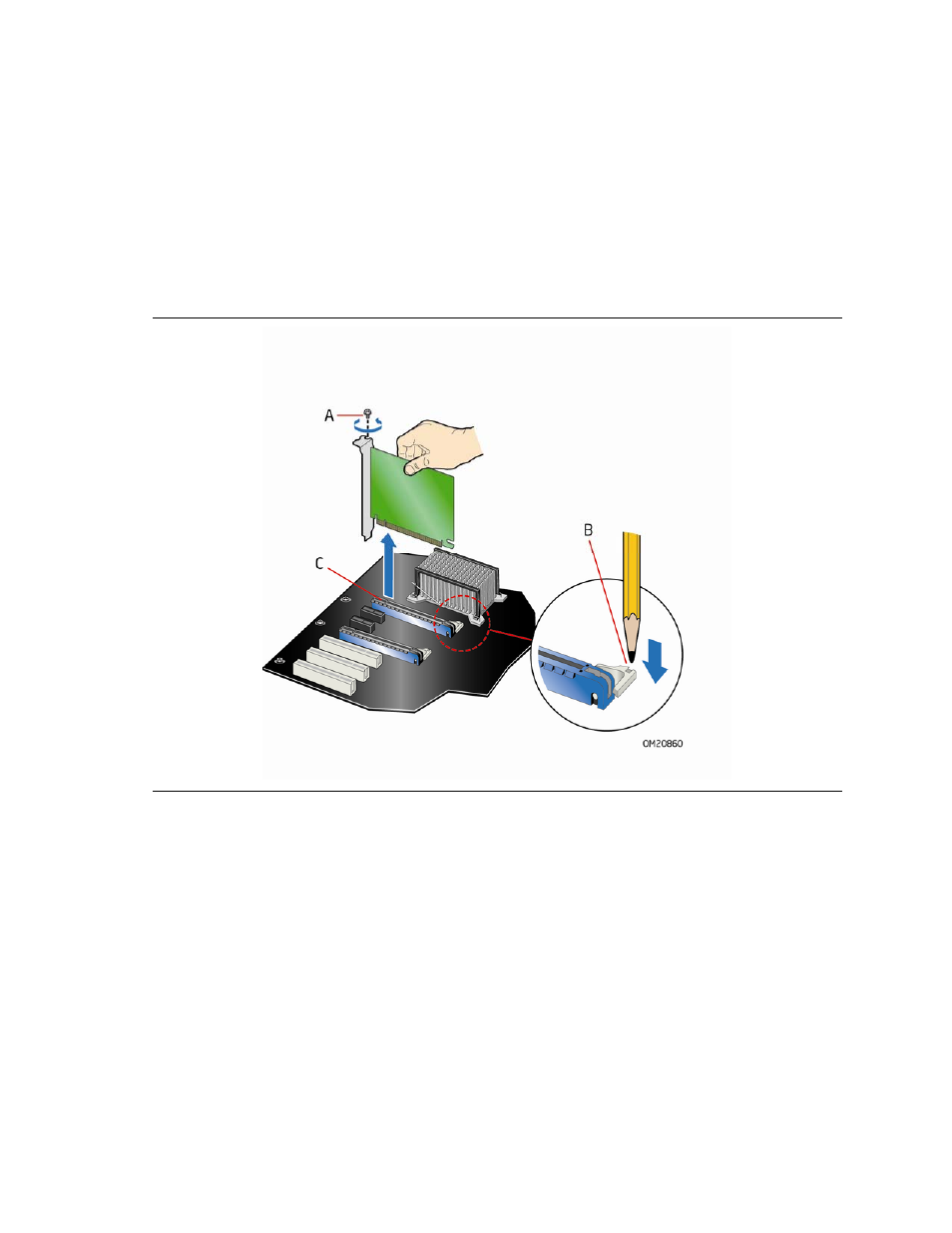

Figure 21. Removing a PCI Express x16 Card
