CONNECTIVITY
AV OUTPUT
AUDIO VIDEO
R L
SVIDEO 1
VIDEO

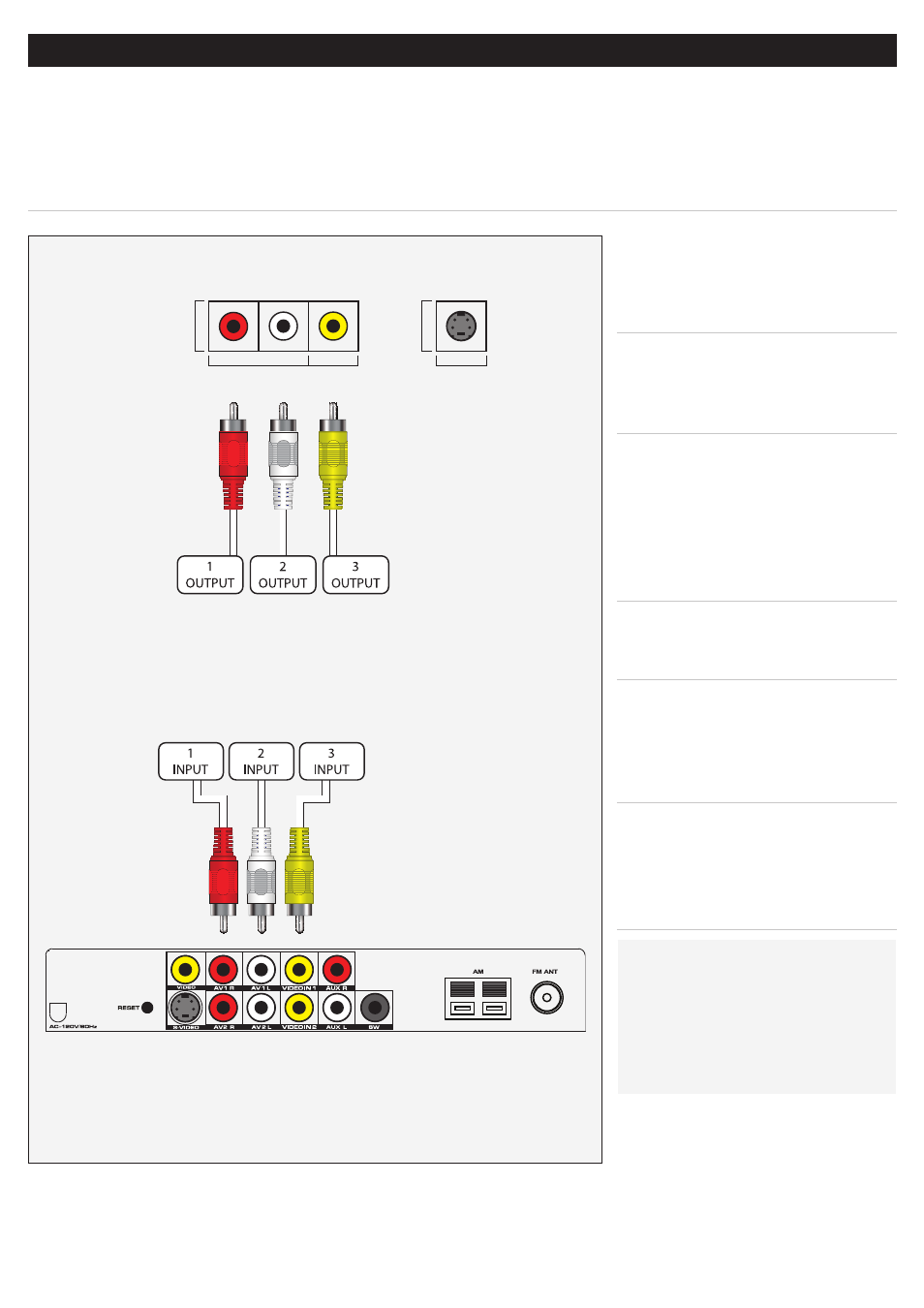

█ CONNECTING A DVD PLAYER TO THE BAR SPEAKER
When connecting a DVD Player to the bar speaker, outputting the audio from the device to the bar speaker, and
outputting video from the device either directly to the television or to the television through the bar speaker.
These instructions will show you how to connect the device to the television by going through the bar speaker
Example of DVD Player Outputs
Diagram of the IT209’s Inputs & Outputs
█ AUDIO
1. Connect a Stereo RCA Cable to
the Audio Outputs on the device.
2. Connect the other end of the
Stereo RCA Cable to the AV 1 R
and AV1 L Stereo Inputs on the
bar speaker.
█ COMPOSITE VIDEO
1. Connect an RCA Video Cable to
the Video Output on the DVD
Player.
2. Connect the other end of the RCA
Video Cable to the Video Input
on the bar speaker.
The bar speaker itself has no
video display. In order to view
video from a connected DVD
Player, the bar speaker must be
connected to a television.
The S-Video Output will not
output video from a connected
DVD Player. The S-Video Output
will only output video from a
docked iPod.
SPECIAL NOTE:
A Digital Cable or Satellite Tuner,
Set-Top Box, Gaming Console, or
VCR can be connected to the bar
speaker in the same way that a
DVD Player is connected.
