11
CONNECTIVITY
█ CONNECTING A TELEVISION TO THE BAR SPEAKER
When connecting a television to the bar speaker, is outputting the audio from the television to the bar speaker,
the bar speaker will provide you with a higher quality audio output than your television.
iPod Only
█ AUDIO TO THE BAR
SPEAKER
1. Connect a Stereo RCA Cable
to the Audio Outputs on the
television.
2. Connect the other end of
the Stereo RCA Cable to the
Auxiliary Stereo Inputs on the
bar speaker.
The volume on your television
may need to be adjusted
independently of the bar speaker,
or adjusted to a fixed audio
mode.
█ S-VIDEO FROM THE BAR
SPEAKER
1. Connect an S-Video Cable to the
S-Video Input on the television.
2. Connect the other end of the
S-Video Cable to the S-Video
Output on the bar speaker.
The S-Video Output will not
output video from a connected
DVD Player. The S-Video Output
will only output video from a
docked iPod.
█ COMPOSITE VIDEO FROM
THE BAR SPEAKER
1. Connect an RCA Video Cable to
the Video Input on the television.
2. Connect the other end of the RCA
Video Cable to the Video Output
on the bar speaker.
SVIDEO 1
SVIDEO 2
VIDEO INPUT
AV 1
AV 2
AUDIO INPUT VIDEO INPUT
R L
AUDIO OUT
AUDIO OUTPUT
R L

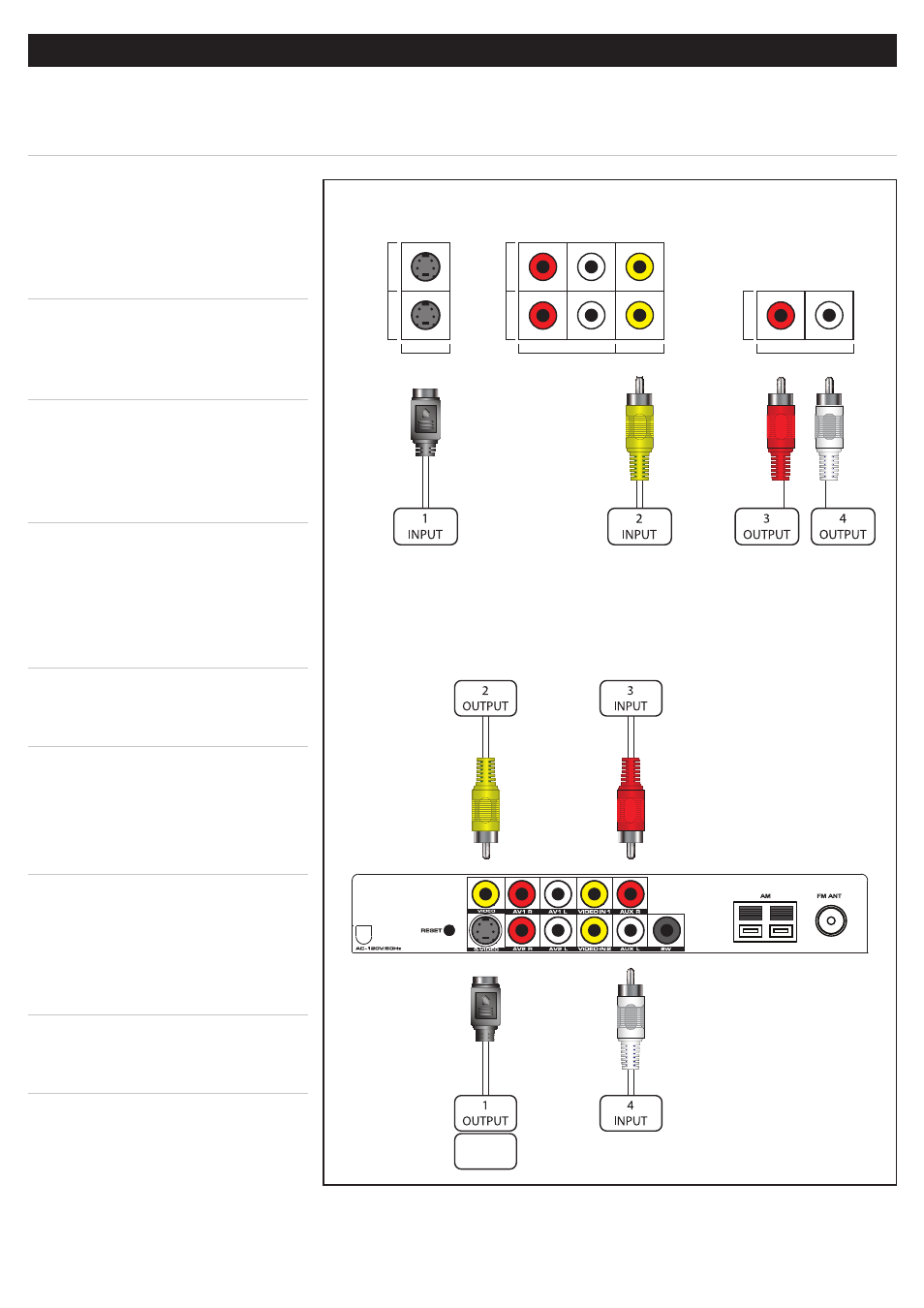

Example of Television Inputs & Outputs
Diagram of the IT209’s Inputs & Outputs
