17
Connecting speakers
Connections

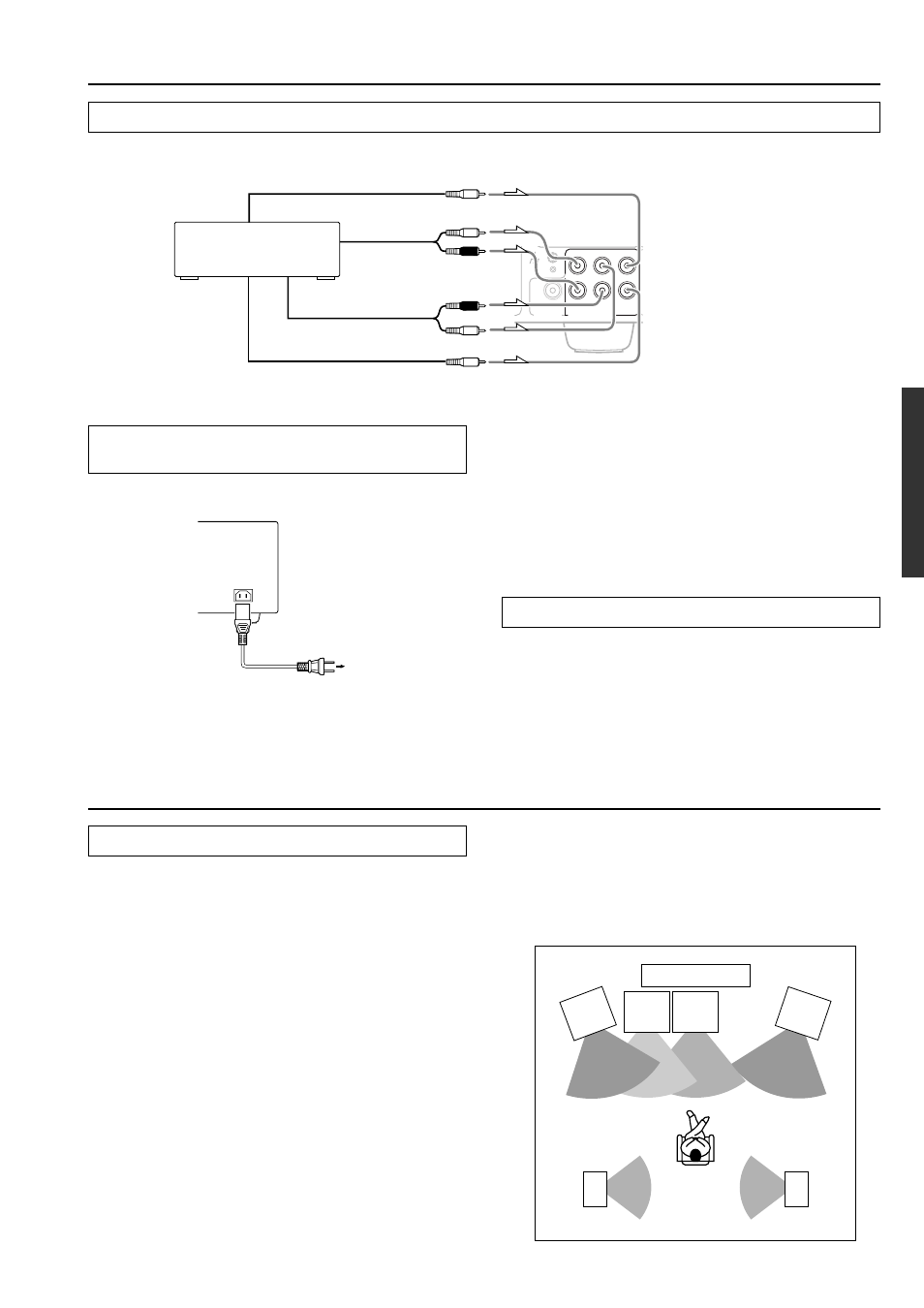

Connect to devices with multichannel output
By connecting a DVD player, MPEG decoder, or other component that has a multi channel port, you can playback the audio with 5.1 channel
output. So, be sure to prepare a cable that can properly connect the DTR-6.2 to the peripheral device.
CENTER
SUB
WOOFER
FRONT SURR
SUBWOOFER
PRE OUT
MULTI
CHANNEL INPUT
L
R
GND
DVD Player/MPEG decoder
Center output
Front output
Surround output
Subwoofer output
L (White)
R (Red)
R (Red)
L (White)
Positioning speakers
Speaker placement plays an important role in the reproduction of
Surround sound. The placement of the speakers varies depending on
the size of the room and the wall coverings used in the room. The
illustration shows an example of a layout for standard speaker
placement. Refer to this example when you position the speakers in
order to experience the best of Surround sound.
Standard speaker placement
For ideal Surround effects, all speakers should be installed. If a
center speaker or subwoofer is not connected, the sound from the
unused channel is properly distributed to the connected speakers in
order to produce the best Surround sound possible.
Front: The left, right, and center speakers should face the seated
listener and be placed at ear level. The center speaker produces a
richer sound image by enhancing the perception of the sound’s
source and movement.
Surround: Place the left and right Surround speakers 3 feet (1
meter) above the listener’s ear level and facing toward the sides of
the room, making sure that the listener is within the speakers’ dis-
persion angle. These speakers produce the feel of a moving sound
while creating the sensation of being in the middle of the action.
TV or Screen
Center
speaker
Surround
right
speaker
Surround
left
speaker
Listener
Sub-
woofer
Front
right
speaker
Front
left
speaker
Subwoofer: Install a subwoofer with a built-in power amplifier for
powerful bass sounds. The placement of the subwoofer does not
affect the final quality of the sound image too much, so you can
install it with the room layout in mind.
Refer to the speaker’s instruction manual for more details.
Plugging in the power cord to the AC INLET
receptacle
Plug the supplied power cord into this AC INLET and then into the
power outlet on the wall.
RS 232 port
The RS 232 port is to be used in conjunction with an external
controller to control the operation of the DTR-6.2 by using an
external device.
AC INLET
Power cord
(supplied)
To an AC
wall outlet
• Do not use a power cord other than the one supplied with the
DTR-6.2. The power cord supplied is designed for use with the
DTR-6.2 and should not be used with any other adevice.
• Never have the power cord disconnected from the DTR-6.2
while the other end is plugged into the wall outlet. Doing so may
cause an electric shock. Always connect by plugging into the
wall outlet last and disconnect by unplugging from the wall
outlet first.
