Assembly

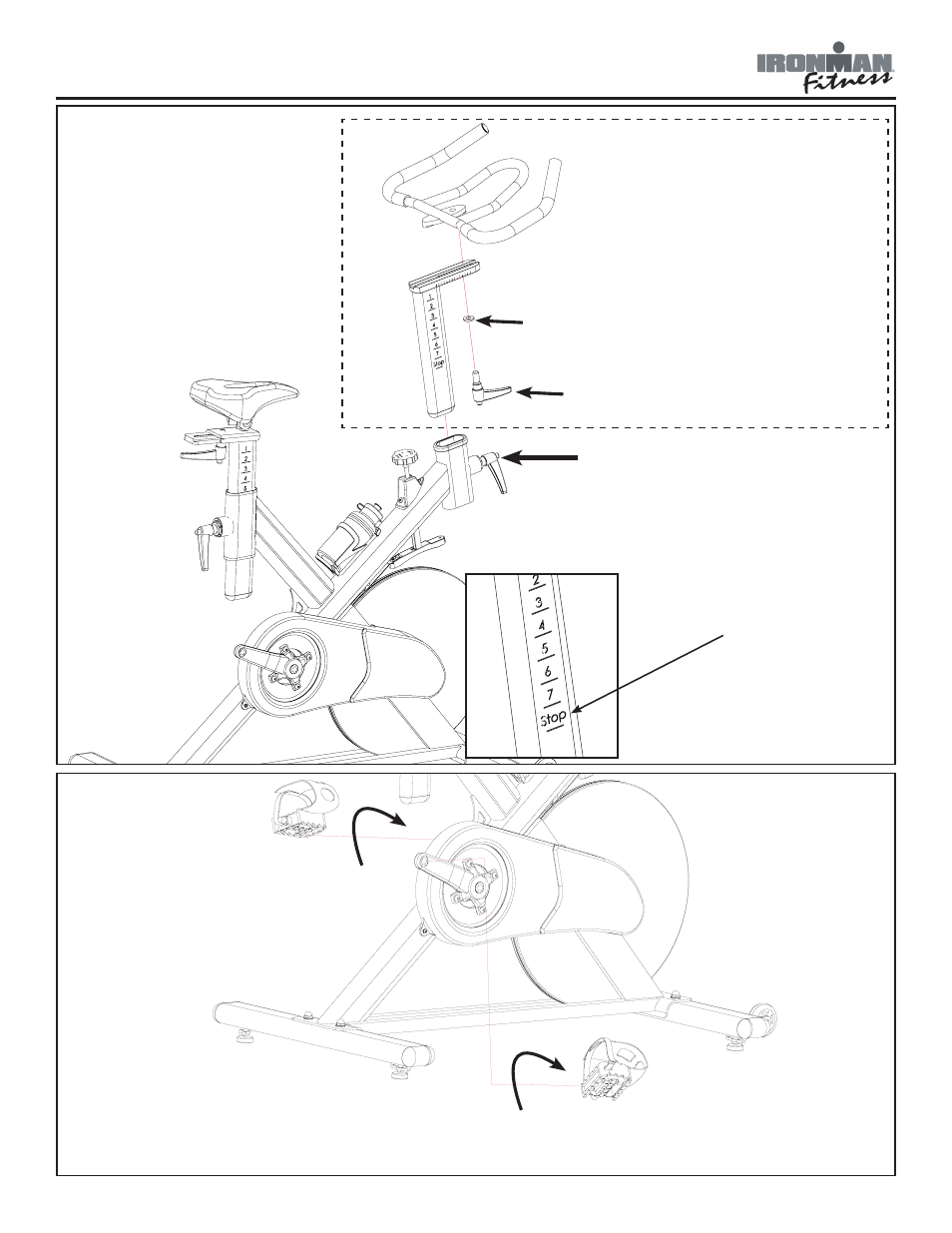

Figure 4
Brass Washer (SPW14)
L Shape Knob (SPS14)
Loosen the L shape knob (SPS15)
by turning it counter-clockwise.
Slide the handlebar post in. Once
the handlebar post is at the appro-
priate height, turn the knob clock-
wise to secure in place.
Secure the handlebar to the han-
dlebar post using L shape knob
as shown. Secure the handlebar
in place by turning the knob clock-
wise.
Note: Do not set the handlebar
post height any higher than the
"STOP" line.
Left Pedal
Marked with a"L"
Turn the threads counter-clockwise
to tighten.
Right Pedal
Marked with a "R"
Turn the threads clockwise to tighten.
Figure 5
