6
Assembly

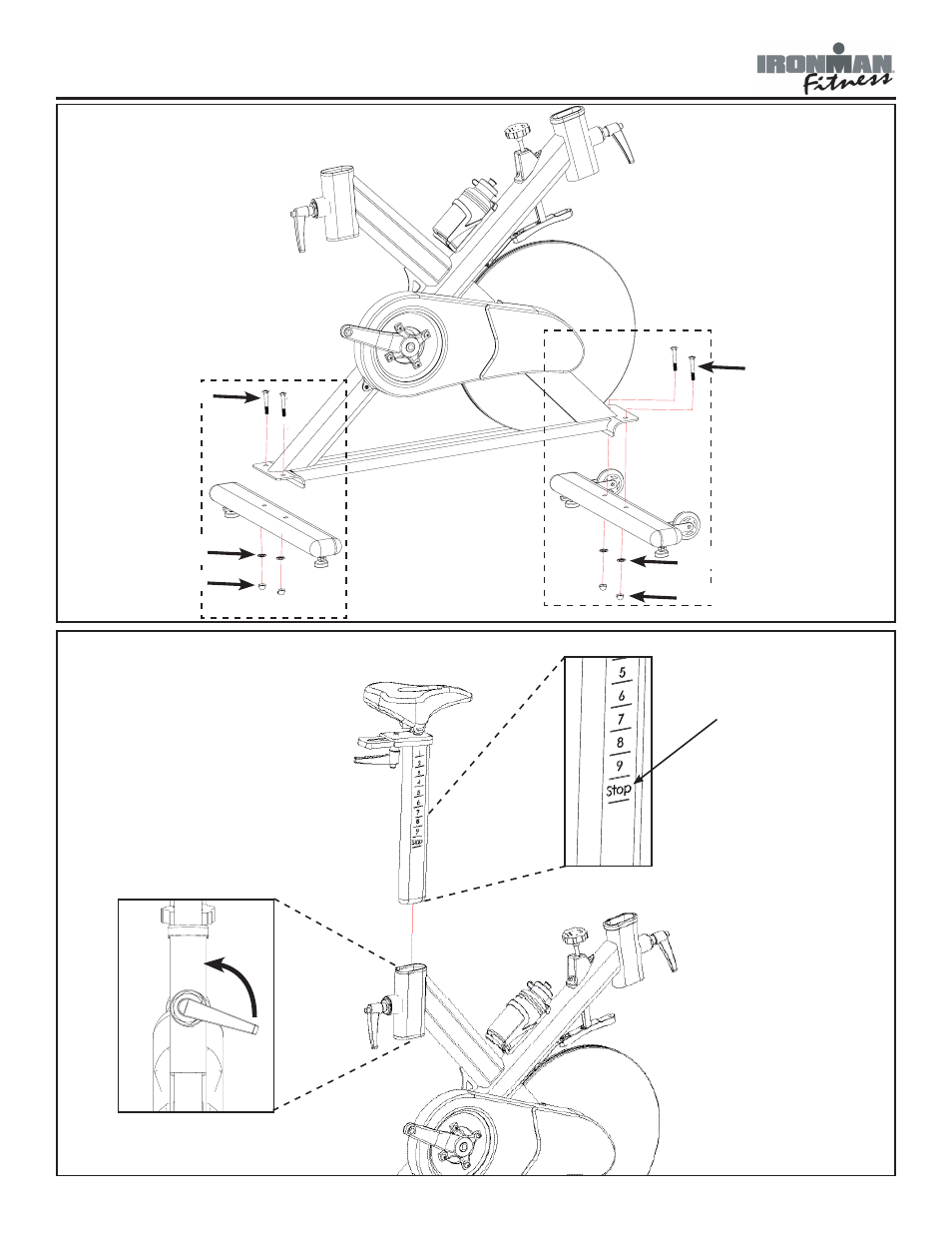

Figure 1
Figure 2
Bolt 10x55
Flat Washer 10
Dome Nut 10
Dome Nut 10
Flat Washer 10
Bolt 10x55
First, loosen the L shape knob
(SPS15) by turning counter-clock-
wise as shown in Figure 2A. Slide
the seat post in. Once the seat
post is at the appropriate height,
turn the knob clockwise to secure in
place.
2A
Note: Do not set the seat
post height any higher than
the "STOP" line.
