Installing Crutch and Cane Carrier

NOTE: For this procedure, refer to FIGURE 1.

1. Slide the clamp with the base attached over the end of the step tube of the wheelchair.

Ensure the base is towards the inside of the wheelchair.

2. Position the base parallel to the step tube.

CAUTION

Base should be parallel to step tube to avoid bending spokes when folding the

wheelchair.

3. Securely tighten the locknut that secures the base to the step tube of the wheelchair.

4. Remove the upper back upholstery screw and washer.

5. Align the strap with the back upholstery screw mounting hole.

6. Reinstall the back upholstery screw and washer and secure the strap to the wheelchair.

7. The base cleans easily with any chrome or glass cleaner. The strap can be cleaned with

mild soap and water.

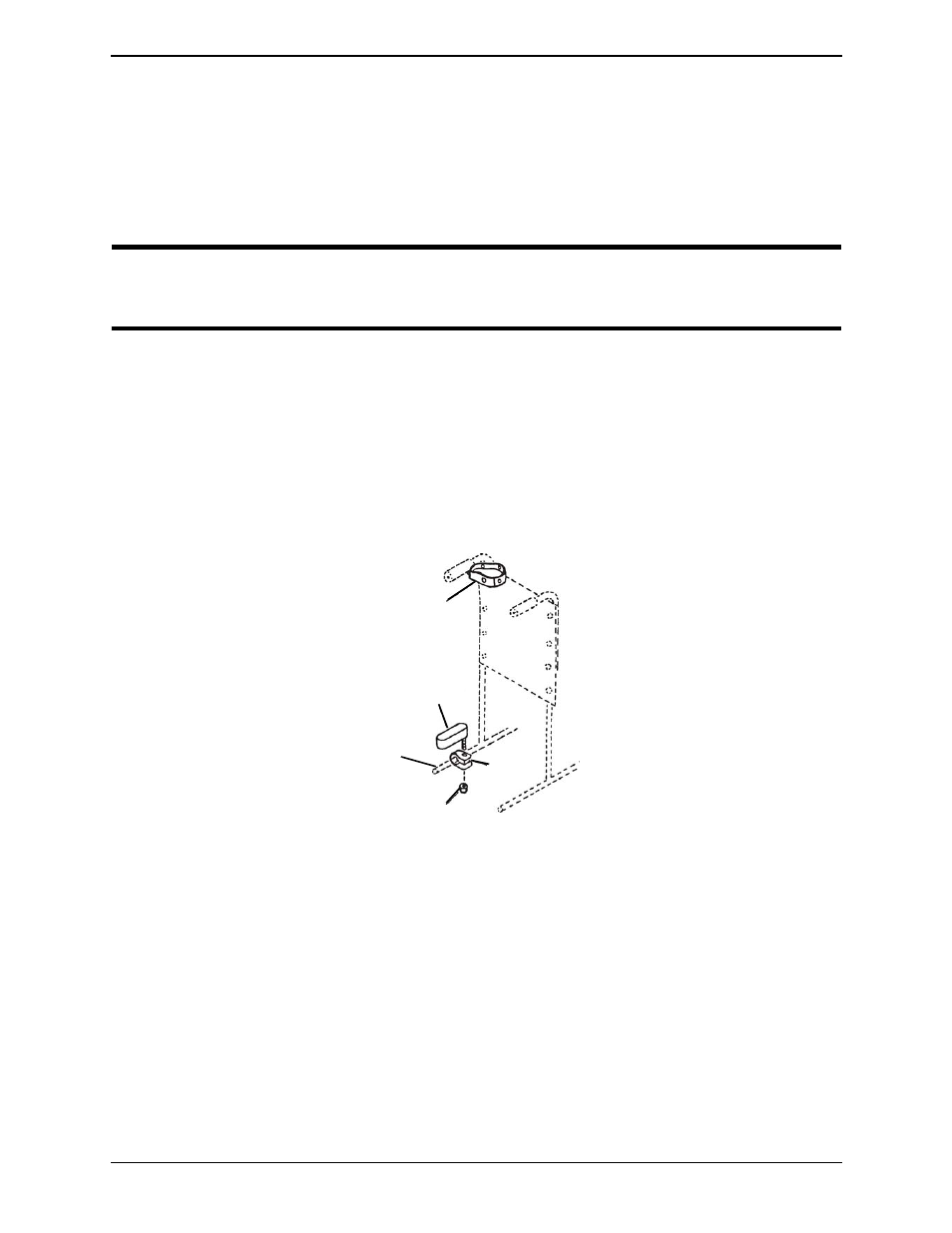

FIGURE 1 Installing Crutch and Cane Carrier

Step

Tube

Locknut

Clamp

Base

Strap
