Chapter 9: Sample Configurations

___________________________________________________________________


9-16


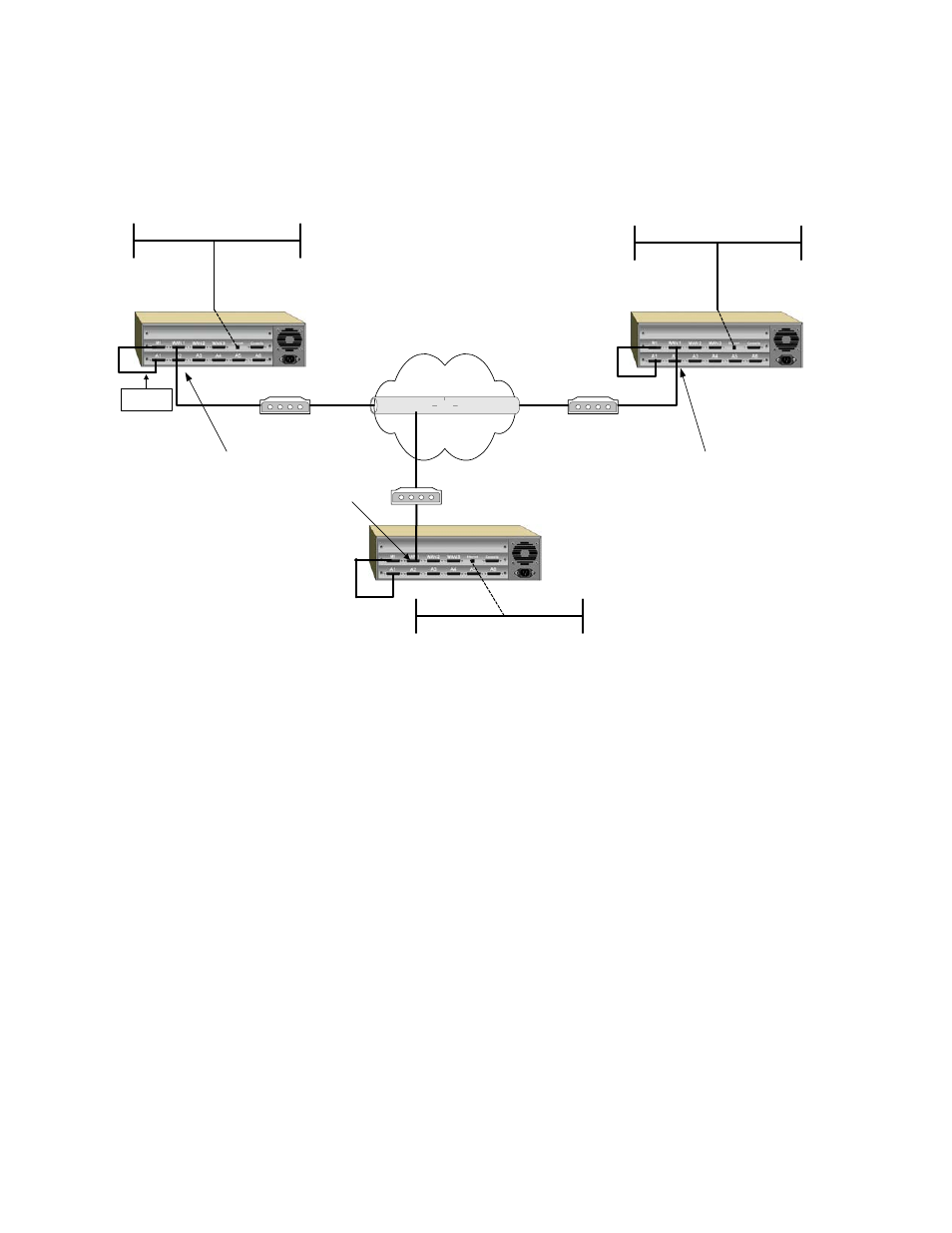

Sample 3 - Multi-Point Public Frame-Relay Network


IP Address: 192.168.1.2/24

IP Address: 192.168.1.1/24

IP Address: 10.1.100.250/24

CSU/DSU

Magnum/Marathon A

Ethernet port

Network: 10.1.100.0/24

CSU/DSU

Magnum/Marathon B

Ethernet port

Network: 172.16.1.0/24

IP Address: 172.16.1.250/24

Public Frame Relay

DLCI 16

PVC

WAN

Network

192.168.1.0/24

DLCI 17

A1 to M1

cable

IP Address: 192.168.2.2/24

Network: 172.17.1.0/24

Magnum/Marathon C

IP Address: 172.17.1.250/24

Ethernet port

DLCI 18

CSU/DSU


This example is basically the same as the second example, except that a third Magnum Router
is being added. Pay close attention to the WAN IP Route Map screens, WAN Configuration
screens, and Ethernet Configuration Screens. In this example, multiple IP addresses are used
on the WAN Ports, and multiple Virtual DLCI’s are utilized.

Configuration Files used in this example
Multi-Point Public FRAME-A.CF2
Multi-Point Public FRAME-B.CF2
Multi-Point Public FRAME-C.CF2
