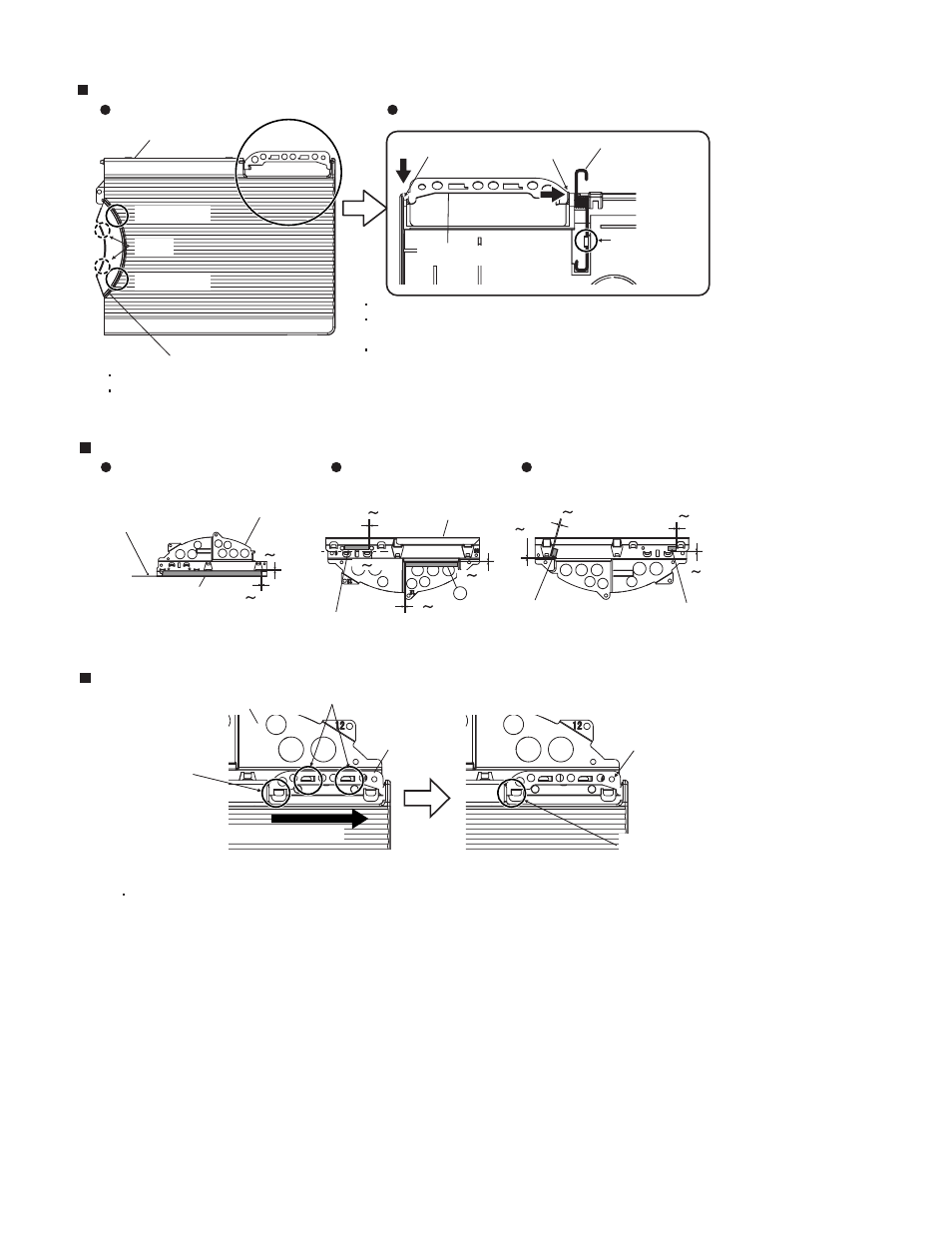

3.12. Assembly of Disk Cover
Paste the remainder internally.
(The other side is also the same.) Disk Angle
0 1mm
0 1mm
2
0 1mm
0 1mm
0 1mm
0 1mm
0 1mm
0 1mm
0 1mm
0 1mm
Prevention rubber
with disk wound
Installation of various dampers on Disk Angle
Installation of Disk Cover
Disk Angle
Tape for Keyboard
Disk Cover Shaft
Prevention rubber with disk wound
is pasted.
Tape for Keyboard/
Seat 2 is pasted. LCD Cushion is pasted.
LCD Cushion LCD Cushion
Insert the latch of The Disk Angle in the corner hole of the Disk Cover Shaft
and slide of the Disk Cover in the direction of the arrow.
Disk Angle
Insert the hook in the corner hole.
Do the Disk Cover in the slide.
Arrange Disk Cover Shaft Z bend
part at the left of the bend
of the Disk Angle.
Suit a round hole.
Arrange Disk Cover Shaft Z bend part
under the bend of the Disk Angle.
Disc Cover
PAD Cover Ring
Arm spring for
Disk Cover
Convex part
Latch
Convex part
Insert under
the Hook
Assembly of Disk Cover
Installation of PAD Cover Ring Installation of Disk Cover Shaft
Pin 2 Pin 1
Insert two Convex parts in the hole of Disc Cover.
Hang two latch on Disc Cover.
Insert the Arm Spring for the Disk Cover in the Disk Cover.
Insert pin 1 of the Disk Cover Shaft through the
inside diameter of the Spring.
Pin 2 of the Disk Cover Shaft must be slided,
and insert in the hole of the Disk Cover.
Disk Cover Shaft
3-10
