Middleby Marshall PS200 series User Manual
Page 72
71

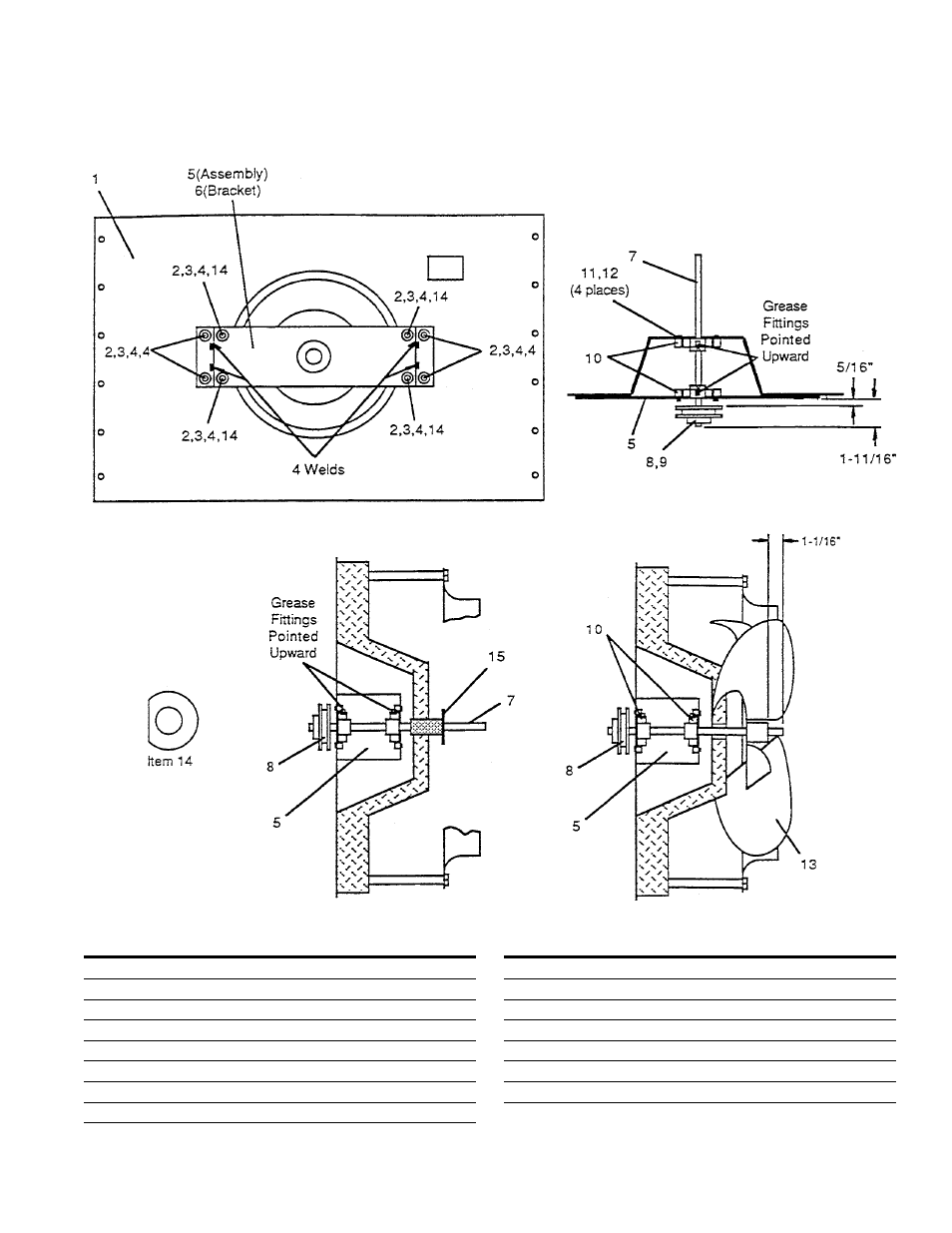

Figure 32
Bearing replacement and alignment - early-style PS200 fan shaft assembly
Item Qty. Part Number
Description
1
1
Not available
Back Wall Assembly
2
8
21216-0001
Screw, Hex Cap SS 3/8-16x1
3
16
21422-0001
Lock Washer, Split 3/8
4
20
21416-0001
Flat Washer, SS 3/8
5
1
Not available
Indirect Fan Drive Bracket Assembly
6
1
Not available
Bracket, Indirect Drive
7
1
Not available
Shaft, Fan Drive
8
1
22230-0072
Pulley, 1/2 Bore
Item Qty. Part Number
Description
9
1
21651-0008
Square Key 1/8
10
2
22071-0010
Flange Bearing, 5/8 Bore
11
6
21211-0004
Screw, Hex Cap 1/4-20 x 3/4
12
6
21421-0016
Lock Washer, Split 1/4
13
1
Not available
Blower Fan, 16 Dia.
14
4
21419-0004
Flat Washer 3/8 SS Special
15
1
37900-0094
Fan Shaft Alignment Tool
IMPORTANT: If parts listed as Not Available require replacement, use Service Kit 49810-0121 to upgrade the fan shaft
assembly to the current version.
SECTION 3 - SERVICING COMPONENTS
