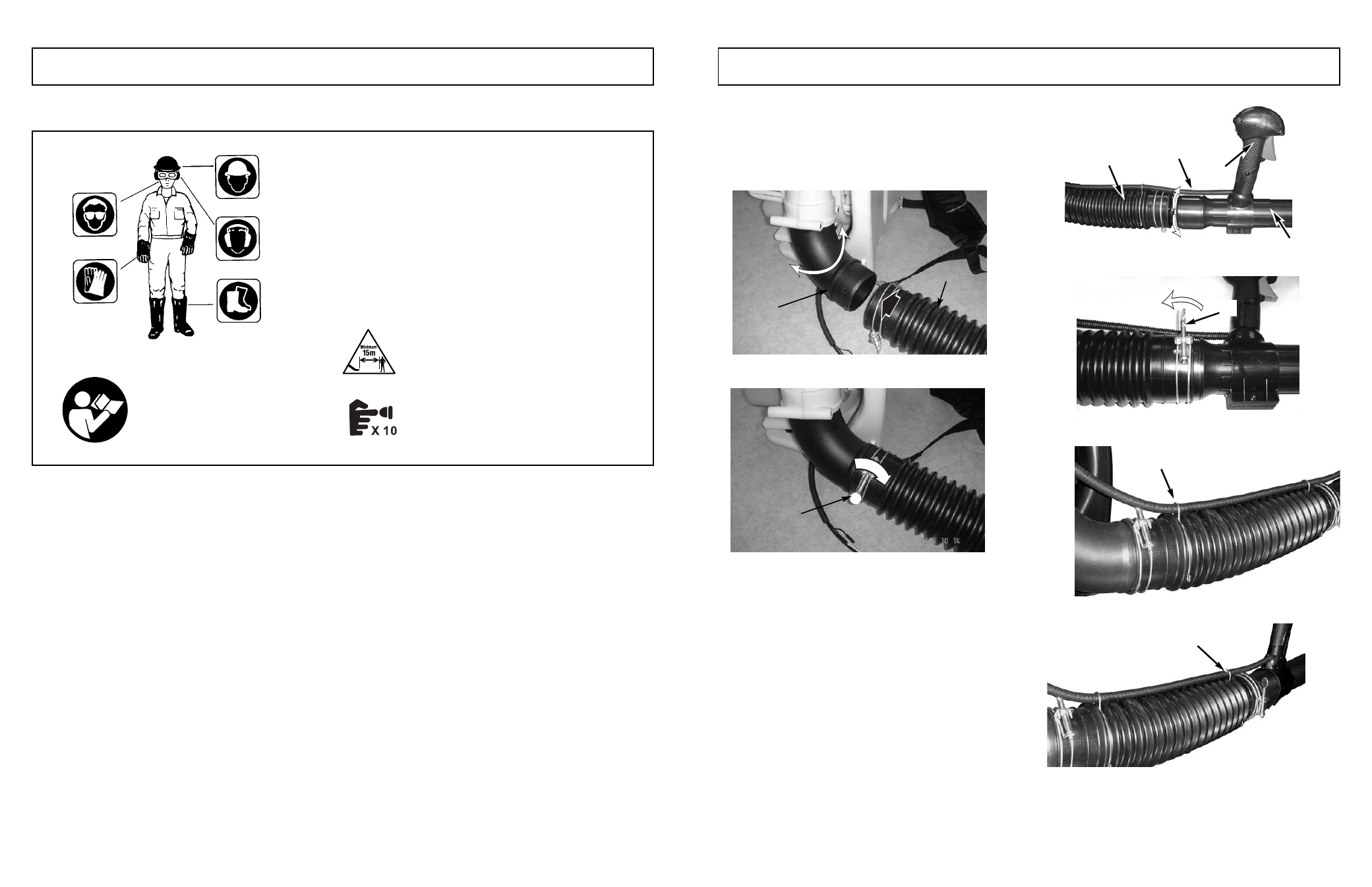

3-1. ATTACH FLEX TUBE

Put the hose clamp(C) on the flex tube before connecting
the flex tube and the fan’s outlet tube together.
Connect the flex tube (B) to the fan’s outlet tube (A) (Fig.
3-1A) with a hose clamp (C) (Fig. 4-1B) and tighten
securely (Fig. 3-1B).

3-2. ATTACH OPERATING TUBE

NOTE: keep the throttle cable as straight as possible when
connecting the blower tubes.

1. Place the unit on flat surface during assembly. Insure

screw mechanism of clamp is positioned away from
operator.

2. Put the hose clamp (C) on the flex tube and the oper-

ating tube before connecting them together.

3. Turn the throttle linkage mark (D) so it aligns with the

throttle handle (F) (Fig.3-2A). Insert the operating
tube (E) into the flex tube (B) (Fig. 3-2A) and then
tighten securely with a hose clamp (G) (Fig. 3-2B).

4. Attached throttle linkage clips (# 24-know your blower)

- to both ends of the flex tube to secure the throttle
cable. ( Fig. 3-2D)

7

3 - ASSEMBLY INSTRUCTIONS

6

2 - SAFETY PRECAUTIONS

Use of these personal safety items is highly recommended to
reduce the risk of accidental injury.

Minimum operating distance

2-3.

INTERNATIONAL SYMBOLS

Read the User Manual.

Pump the primer bulb 10 times.

3-1A

A

B

3-1B

C

3-2C

3-2D

3-2A

3-2B

F

B

E

G

THROTTLE LINKAGE CLIPS

THROTTLE LINKAGE CLIPS

D

180˚
